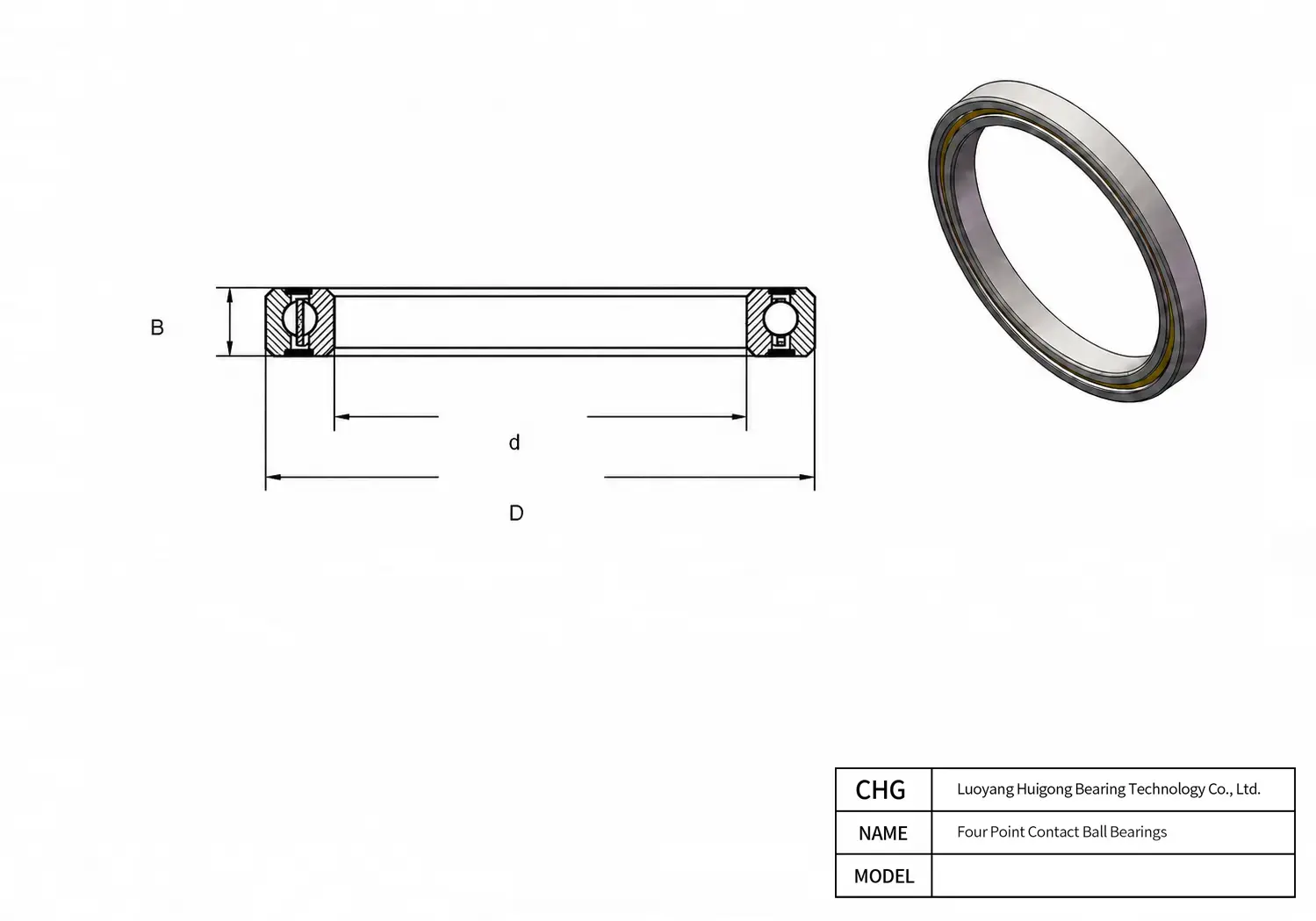

Manufactured by CHG Bearing, the HJU120XP0 is a precision Thin Section Four-Point Contact Ball Bearings. Key dimensional parameters include a 304.8 mm bore diameter, a 323.85 mm outer diameter, and a 12.7 mm overall width. This component is designed to meet standard load requirements and ensure consistent operational performance. For comprehensive technical evaluation, please explore the detailed specifications, dimensional data, product images, and CAD drawings provided below. A complete PDF data sheet is also readily available for direct download to support your engineering and procurement needs.

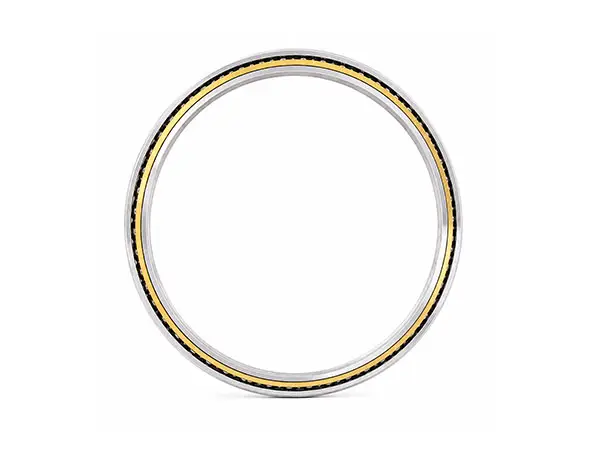

HJU120XP0 - Thin Section Four-Point Contact Ball Bearings
Technical Specifications
| Overview | |
|---|---|
| Part Number | HJU120XP0 |
| Brand | CHG® |
| Characteristics | |
| Bearing Type | Four-Point Contact Ball Bearing |
| Series | JU |
| Seal Type | Sealed |
| Load Direction | Radial, Bidirectional Axial and Moment |
| Row Configuration | Single Row |
| Dimensions | |
| Bore Diameter (d) | 304.8 mm |
| Width (B) | 12.7 mm |
| Outer Diameter (D) | 323.85 mm |
| Bore Diameter Tolerance | -0.035-0 mm |
| Outside Diameter Tolerance | -0.035-0 mm |
| Width Tolerance | -0.127-0 mm |
| Inner-Ring Land Diameter (L1 / d1) | 308.61 mm |
| Outer-Ring Land Diameter (L2 / D1) | 318.389 mm |
| Counterbore Diameter L3 | N/A mm |
| Performance | |
| Basic Static Radial Load Rating C0r (N) | 26450 N |
| Basic Dynamic Radial Load Rating Cr (N) | 11660 N |
| Basic Static Axial Load Rating C0a (N) | 19650 N |
| Basic Dynamic Axial Load Rating Ca (N) | 19650 N |
| Material | |
| Mass (kg) | 0.708 kg |
| Ring Material | Stainless Steel / Bearing Steel |
| Cage Material | Brass / PEEK / Polyimide / Phenolic Resin Fabric Laminate |
| Ball Material | Stainless Steel / Bearing Steel / Ceramic |
| Operating Temperature Range (°C) | -50 to +100 °C °C |
| Precision Class | P0 |
| Radial Internal Clearance | -0.096-0.072 mm |
HJU120XP0 323.85 mm 304.8 mm 12.7 mm Frequently Asked Questions about HJU120XP0 Thin Section Four-Point Contact Ball Bearings
Find key technical answers regarding dimensions, specifications, and replacement options for this model.
Sourcing HJU120XP0 directly from CHG Bearing eliminates intermediate brokerage markups while granting you factory-direct engineering backup, rigorous ISO-certified quality assurance, competitive volume wholesale pricing, and dependable supply chain stability for Thin Section Four-Point Contact Ball Bearings.
Following standard ISO 281 fatigue calculation guidelines, the nominal rating life (L10) of CHG Bearing HJU120XP0 correlates its dynamic capacity (standard dynamic) with equivalent dynamic loads. In controlled industrial settings with proper contamination-free filtration, field data confirms continuous operational longevity exceeding 20,000 to 50,000 service hours.
The Sealed engineered for HJU120XP0 by CHG Bearing utilizes precision non-contact metal shields or reinforced NBR/FKM contact lip seals. This barrier prevents particulate ingress, washdown fluids, and abrasive dust from reaching the raceways while eliminating grease leakage under centrifugal forces.
Every production batch of CHG Bearing HJU120XP0 Thin Section Four-Point Contact Ball Bearings comes with complete traceability. Upon shipment, CHG Bearing can provide EN 10204 3.1 Material Test Reports (MTR), Certificates of Conformity (CoC), spectral chemical composition analysis, and dimensional inspection sheets.
