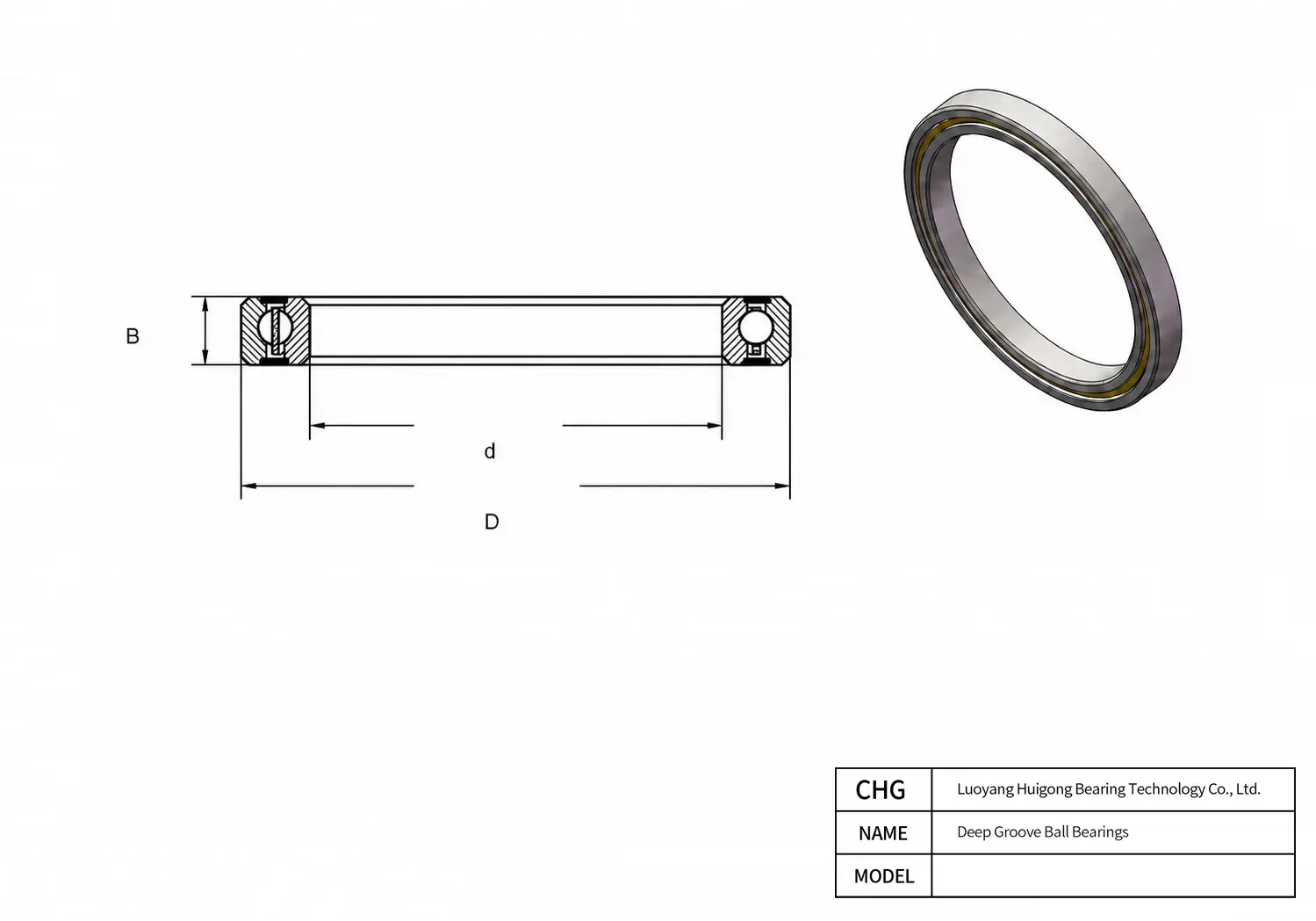

Manufactured by CHG Bearing, the HKD040CP4 is a precision Thin Section Deep Groove Ball Bearings. Key dimensional parameters include a 101.6 mm bore diameter, a 127 mm outer diameter, and a 12.7 mm overall width. This component is designed to meet standard load requirements and ensure consistent operational performance. For comprehensive technical evaluation, please explore the detailed specifications, dimensional data, product images, and CAD drawings provided below. A complete PDF data sheet is also readily available for direct download to support your engineering and procurement needs.

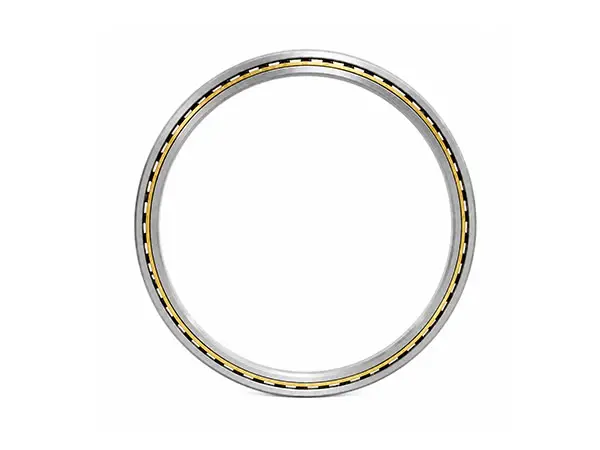

HKD040CP4 - Thin Section Deep Groove Ball Bearings
Technical Specifications
| Overview | |
|---|---|
| Part Number | HKD040CP4 |
| Brand | CHG® |
| Characteristics | |
| Bearing Type | Deep Groove Ball Bearing |
| Series | KD |
| Seal Type | Open |
| Load Direction | Radial and Bidirectional Axial |
| Row Configuration | Single Row |
| Dimensions | |
| Bore Diameter (d) | 101.6 mm |
| Width (B) | 12.7 mm |
| Outer Diameter (D) | 127 mm |
| Bore Diameter Tolerance | -0.006-0 mm |
| Outside Diameter Tolerance | -0.0076-0 mm |
| Width Tolerance | -0.127-0 mm |
| Inner-Ring Land Diameter (L1 / d1) | 110.998 mm |
| Outer-Ring Land Diameter (L2 / D1) | 117.602 mm |
| Counterbore Diameter L3 | N/A mm |
| Performance | |
| Basic Static Radial Load Rating C0r (N) | 13690 N |
| Basic Dynamic Radial Load Rating Cr (N) | 7800 N |
| Basic Static Axial Load Rating C0a (N) | N/A N |
| Basic Dynamic Axial Load Rating Ca (N) | N/A N |
| Material | |
| Mass (kg) | 0.366 kg |
| Ring Material | Stainless Steel / Bearing Steel |
| Cage Material | Brass / PEEK / Polyimide / Phenolic Resin Fabric Laminate |
| Ball Material | Stainless Steel / Bearing Steel / Ceramic |
| Operating Temperature Range (°C) | -50 to +100 °C °C |
| Precision Class | P4 |
| Radial Internal Clearance | -0.03-0.016 mm |
HKD040CP4 127 mm 101.6 mm 12.7 mm Frequently Asked Questions about HKD040CP4 Thin Section Deep Groove Ball Bearings
Find key technical answers regarding dimensions, specifications, and replacement options for this model.
In its sealed configuration (Open), CHG Bearing pre-charges HKD040CP4 with premium wide-temperature lithium-complex or polyurea grease, calibrated to a 30%–35% cavity volume ratio. For open-type variants, synthetic PAO or refined mineral lubricating oils with appropriate EP (Extreme Pressure) additives should be circulated.
As standard production, CHG Bearing subjects HKD040CP4 to precision bainite or martensite quenching, offering dimensional stability up to 120°C (248°F). For high-heat processing equipment, CHG Bearing also supplies custom S0 (150°C), S1 (200°C), or S2 (250°C) stabilization heat treatments upon request to prevent residual austenite transformation.
Built for demanding industrial environments, the HKD040CP4 Thin Section Deep Groove Ball Bearings by CHG Bearing boasts a dynamic load rating (Cr) of standard dynamic and a static load threshold (C0r) of standard static. The optimized internal raceway geometry balances stress distribution, mitigating edge loading even when operating under peak mechanical stresses.
The Open engineered for HKD040CP4 by CHG Bearing utilizes precision non-contact metal shields or reinforced NBR/FKM contact lip seals. This barrier prevents particulate ingress, washdown fluids, and abrasive dust from reaching the raceways while eliminating grease leakage under centrifugal forces.
