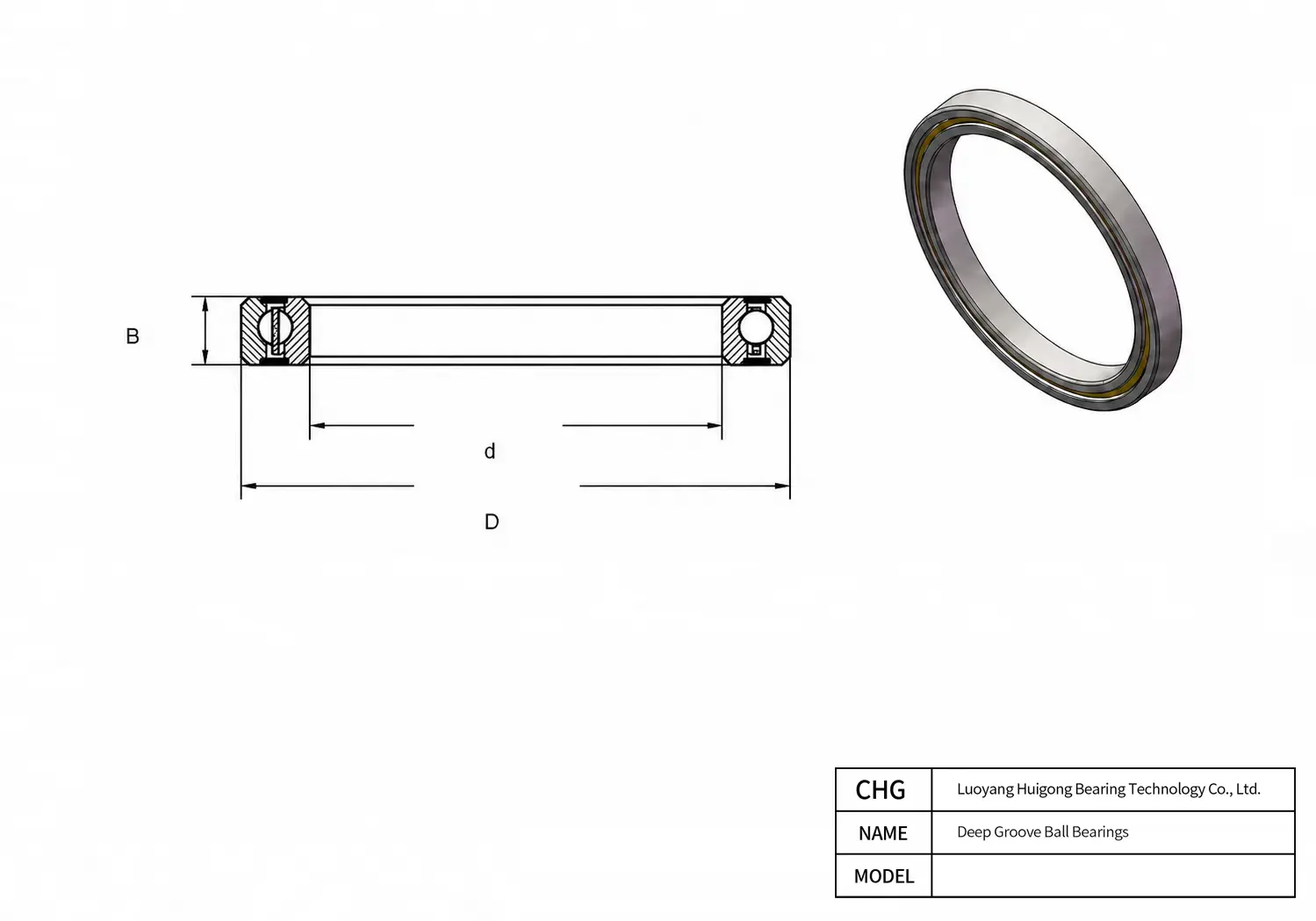

Manufactured by CHG Bearing, the HKA060CP0 is a precision Thin Section Deep Groove Ball Bearings. Key dimensional parameters include a 152.4 mm bore diameter, a 165.1 mm outer diameter, and a 6.35 mm overall width. This component is designed to meet standard load requirements and ensure consistent operational performance. For comprehensive technical evaluation, please explore the detailed specifications, dimensional data, product images, and CAD drawings provided below. A complete PDF data sheet is also readily available for direct download to support your engineering and procurement needs.

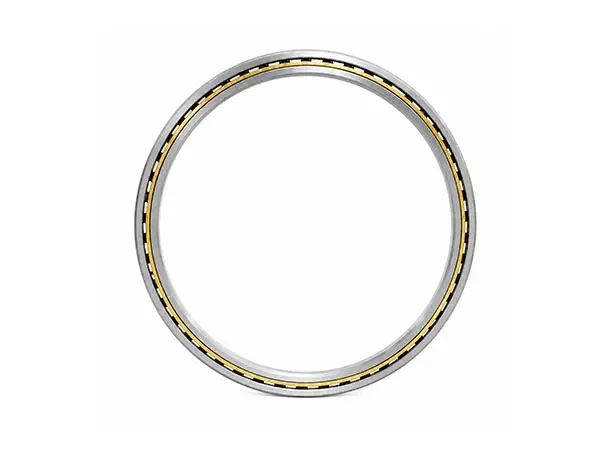

HKA060CP0 - Thin Section Deep Groove Ball Bearings
Technical Specifications
| Overview | |
|---|---|
| Part Number | HKA060CP0 |
| Brand | CHG® |
| Characteristics | |
| Bearing Type | Deep Groove Ball Bearing |
| Series | KA |
| Seal Type | Open |
| Load Direction | Radial and Bidirectional Axial |
| Row Configuration | Single Row |
| Dimensions | |
| Bore Diameter (d) | 152.4 mm |
| Width (B) | 6.35 mm |
| Outer Diameter (D) | 165.1 mm |
| Bore Diameter Tolerance | -0.025-0 mm |
| Outside Diameter Tolerance | -0.025-0 mm |
| Width Tolerance | -0.127-0 mm |
| Inner-Ring Land Diameter (L1 / d1) | 157.1244 mm |
| Outer-Ring Land Diameter (L2 / D1) | 160.3756 mm |
| Counterbore Diameter L3 | N/A mm |
| Performance | |
| Basic Static Radial Load Rating C0r (N) | 8450 N |
| Basic Dynamic Radial Load Rating Cr (N) | 3200 N |
| Basic Static Axial Load Rating C0a (N) | N/A N |
| Basic Dynamic Axial Load Rating Ca (N) | N/A N |
| Material | |
| Mass (kg) | 0.13 kg |
| Ring Material | Stainless Steel / Bearing Steel |
| Cage Material | Brass / PEEK / Polyimide / Phenolic Resin Fabric Laminate |
| Ball Material | Stainless Steel / Bearing Steel / Ceramic |
| Operating Temperature Range (°C) | -50 to +100 °C °C |
| Precision Class | P0 |
| Radial Internal Clearance | -0.086-0.051 mm |
HKA060CP0 165.1 mm 152.4 mm 6.35 mm Frequently Asked Questions about HKA060CP0 Thin Section Deep Groove Ball Bearings
Find key technical answers regarding dimensions, specifications, and replacement options for this model.
Yes, 100% of HKA060CP0 Thin Section Deep Groove Ball Bearings leaving CHG Bearing production lines are subjected to multi-frequency Anderometer sound testing. All units satisfy baseline Z1V1 levels, with dedicated quiet-running electric motor quality (EMQ) lots certified to Z2V2 and Z3V3 standards for silent machinery integration.
Yes, CHG Bearing works closely with industrial OEMs and brand distributors. We offer turnkey custom engineering for HKA060CP0, including laser-etched customer logos, custom internal radial clearances, specialized grease formulations, and bespoke protective packaging.
Quality starts with raw material selection: CHG Bearing crafts HKA060CP0 inner and outer rings from high-purity High-Quality Chrome Steel (GCr15/100Cr6). Our raw billets undergo vacuum degassing and secondary ESR (electroslag remelting) processes to drastically eliminate non-metallic sulfide and oxide inclusions, elevating subsurface contact fatigue resistance.
To ensure optimum performance of CHG Bearing HKA060CP0 Thin Section Deep Groove Ball Bearings under general rotational loads, our application engineers advise an inner-ring shaft tolerance of m5 or k5 for the 152.4 mm bore. For the 165.1 mm outer ring, an H7 or J7 housing bore fit is recommended to eliminate creep while accommodating normal thermal gradient expansion.
