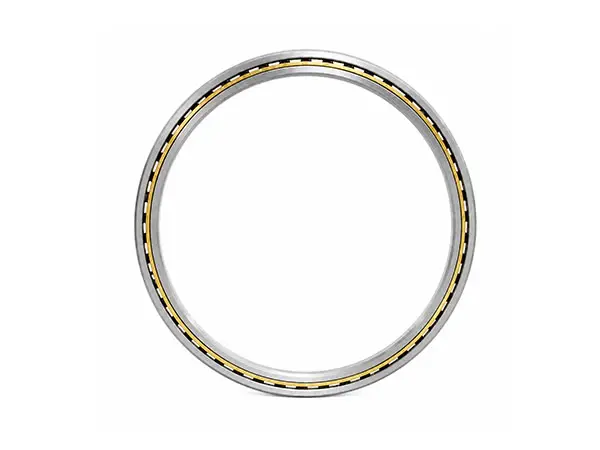

Thin Section Deep Groove Ball Bearings
Type A Thin-Section Bearings for Precision Combined LoadsBearing Type: Single-row thin-section angular contact ball bearing
Contact Angle: 30° standard Type A contact angle
Series: HK Prefix Models and HW Prefix Models
HK Prefix Models: Open: KAA, KA, KB, KC, KD, KF, KG; sealed: JHA, JA, JB, JU, JG
HW Prefix Models: A4, A6, A7, A8, A9, A10, A11, A12, A13, A16 and A24 structures
Bore Range: 0.625–20 in (15.875–508 mm).
Technical Specifications
| Specification | Details |
|---|---|
| Bearing Type | Type C thin-section deep groove ball bearing |
| Contact Form | Single-row radial contact with extra-deep raceways |
| Cross-Section | Fixed cross-section within each series |
| Model Family | HK Prefix Models |
| Open Series | KAA, KA, KB, KC, KD, KF and KG |
| Sealed Series | JHA, JA, JB, JU and JG |
| Bore Range | 1–20 in (25.4–508 mm) |
| Loads | Radial and bidirectional axial load |
| Materials | Bearing steel or stainless steel rings; steel, stainless or ceramic balls |
| Precision | P0 and P4 precision classes |
| Temperature | Catalog models: -50°C to +100°C; final limit depends on cage, seals and lubrication |
Thin Section Deep Groove Ball Bearings Overview
Type C thin-section deep groove ball bearings are single-row radial-contact bearings with extra-deep raceways. Bearings in the same series retain a constant cross-section as bore and outside diameter increase, simplifying surrounding component design while reducing system size and weight.
HK-prefix models include open and sealed configurations. The structure chart shows the available section families, allowing designers to match installation space, protection and load requirements without changing the equal-section design principle.
Clearance and Axial Load Capability
Type C bearings operate best with controlled working radial clearance. Mounting interference, temperature differences and shaft-to-housing misalignment all affect the final clearance. Designs without filling slots can carry axial loads in both directions in addition to radial load.
- Low friction and smooth rotation
- Bidirectional thrust capability without filling slots
- Open and sealed configurations
- Fixed cross-section for standardized design
Open, Sealed and Cage Options
Open bearings suit controlled environments where lubrication can be replenished. Sealed bearings improve protection where cleanliness is difficult to maintain. Crown cages are commonly used for Type C bearings, with brass, reinforced nylon, PEEK, polyimide or phenolic options selected according to speed, temperature and environment.
- HK Prefix Models—Open: KAA, KA, KB, KC, KD, KF and KG
- HK Prefix Models—Sealed: JHA, JA, JB, JU and JG
- Bearing-steel and corrosion-resistant stainless-steel versions are available

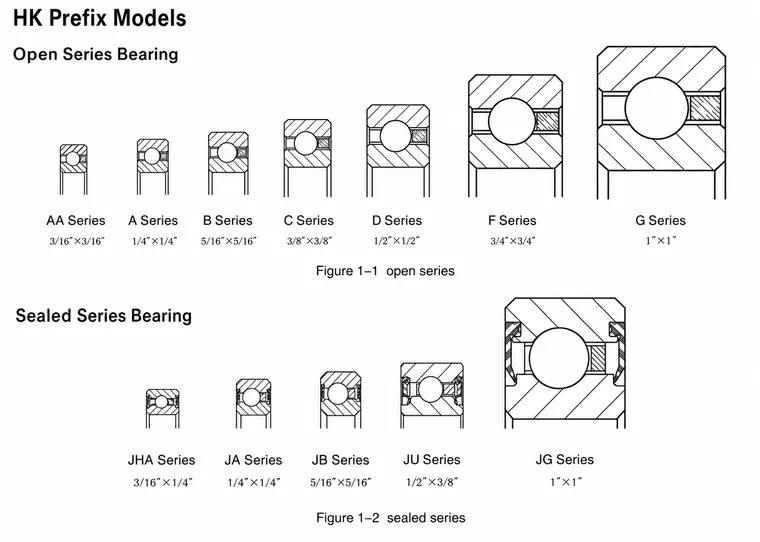

HK-prefix open and sealed thin-section bearing series
Structure and Series
| Type | Configuration | Selection |
|---|---|---|
| Open Series | KAA, KA, KB, KC, KD, KF, KG | Cross-sections from 3/16 × 3/16 in to 1 × 1 in |
| Sealed Series | JHA, JA, JB, JU, JG | Protected structures from 3/16 × 1/4 in to 1 × 1 in |
Performance Characteristics
The equal-section design provides low starting and running torque, good rotational accuracy and efficient use of radial space. Open and sealed HK-prefix structures allow the bearing to be adapted to different contamination, lubrication and installation conditions while retaining the lightweight advantages of thin-section construction.
Model Selection: choose the HK-prefix series, section, precision and sealing configuration according to the application.
Typical Applications
- Precision rotary tables and indexing mechanisms
- Robot joints and automation equipment
- Medical and diagnostic equipment
- Optical and scanning systems
- Packaging and semiconductor machinery
- Lightweight aerospace mechanisms
Available Models & Specifications
Click on any part number to view detailed CAD drawings and download PDF specifications.
