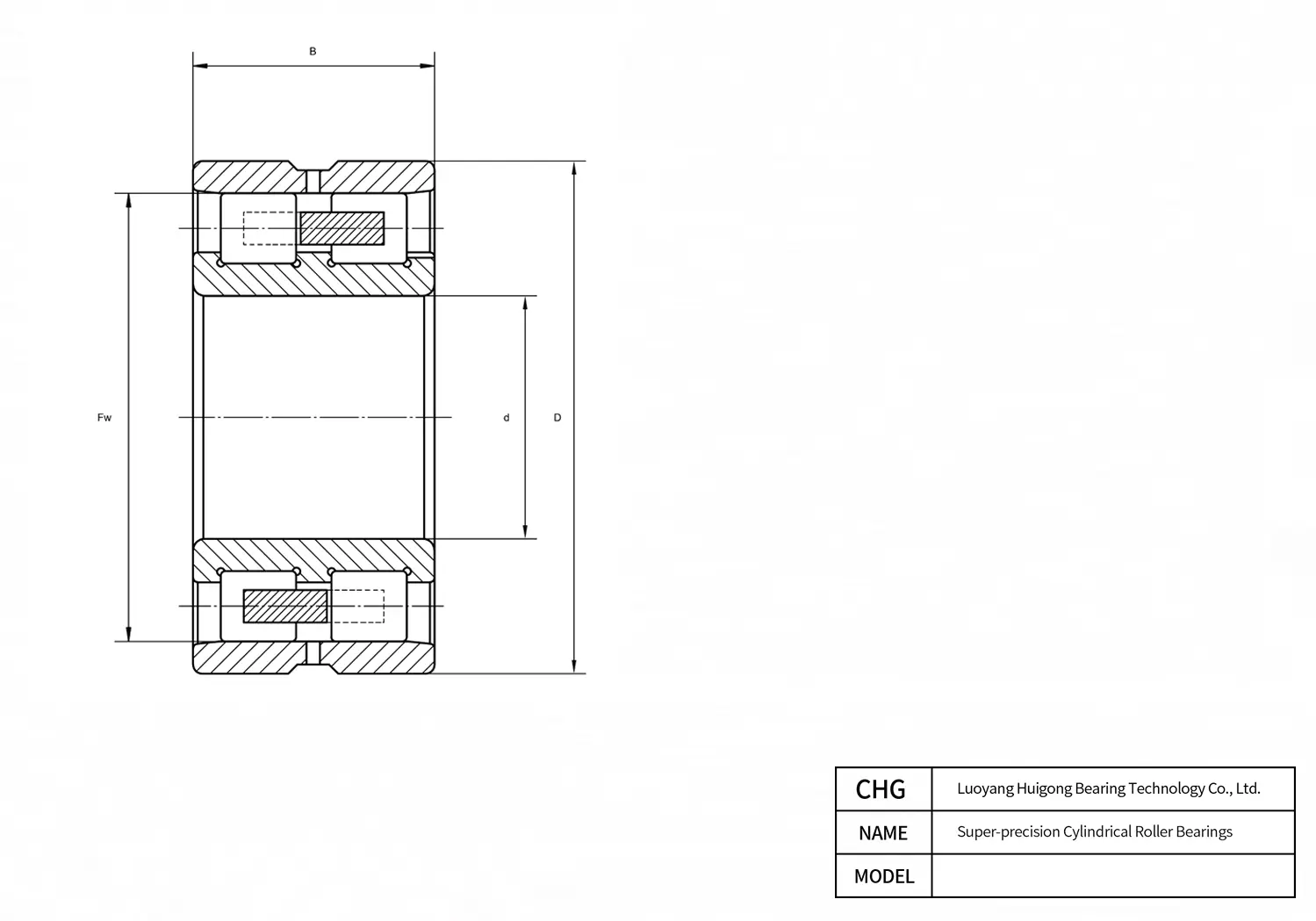

Manufactured by CHG Bearing, the NN 3017 KTN9/UP is a precision Super-Precision Cylindrical Roller Bearings. Key dimensional parameters include a 85 mm bore diameter, a 130 mm outer diameter, and a 34 mm overall width. This component is designed to meet standard load requirements and ensure consistent operational performance. For comprehensive technical evaluation, please explore the detailed specifications, dimensional data, product images, and CAD drawings provided below. A complete PDF data sheet is also readily available for direct download to support your engineering and procurement needs.
NN 3017 KTN9/UP - Super-Precision Cylindrical Roller Bearings
Technical Specifications
| Overview | |
|---|---|
| Part Number | NN 3017 KTN9/UP |
| Brand | CHG® |
| Characteristics | |
| Bearing Type | Super-precision Cylindrical Roller Bearing |
| Design Type | Tapered Bore 1:12 |
| Structure (Drawing Reference) | Complete Bearing |
| Number of Rows | 2 |
| Ring Type | None |
| Design | NN Design |
| Tolerance Class | UP |
| Bearing Material | Bearing Steel |
| Coating | None |
| Sealing | None |
| Lubricant | None |
| Features | None |
| Number of Flanges – Outer Ring | 0 |
| Number of Ribs – Inner Ring | 3 |
| Dimensions | |
| Bore Diameter (d) | 85 mm |
| Width (B) | 34 mm |
| Outer Diameter (D) | 130 mm |
| Minimum Chamfer Dimension rmin | 1 mm |
| Inner Ring Chamfer | 1.1 mm |
| Outer Ring Chamfer | 0.6 mm |
| End-face Height Difference h | 2 mm |
| Inner-Ring Land Diameter (L1 / d1) | 102 mm |
| Outer Ring Raceway Diameter E | 118 mm |
| Shaft Shoulder Diameter dₐ, min. | 91.5 mm |
| Housing Shoulder Diameter Dₐ, min. | 119 mm |
| Housing Shoulder Diameter Dₐ, max. | 123.5 mm |
| Performance | |
| Basic Dynamic Load Rating C (kN) | 125 kN |
| Basic Static Load Rating C₀ (kN) | 204 kN |
| Limiting Speed – Grease (r/min) | 6700 r/min |
| Limiting Speed – Oil-air (r/min) | 7500 r/min |
| Reference Grease Quantity Gref (cm³) | 8.4 cm³ |
| Fatigue Load Limit Pᵤ (kN) | 23.2 kN |
| Axial Static Stiffness – Guideline Value (N/µm) | 1970 N/µm |
| Material | |
| Weight (kg) | 1.54 kg |
| Radial Internal Clearance | C1 mm |
| Internal Design & Weight | |
| Cage Type | Non-metallic Cage |
| Mounting Dimensions | |
| Lubrication Port Thread / Size Φ1 | 116.4 |
NN 3017 KTN9/UP 130 mm 85 mm 34 mm Frequently Asked Questions about NN 3017 KTN9/UP Super-Precision Cylindrical Roller Bearings
Find key technical answers regarding dimensions, specifications, and replacement options for this model.
Each NN 3017 KTN9/UP produced in CHG Bearing manufacturing facilities features accurately profiled corner chamfers complying with DIN 5412 / ISO standard corner radii. When designing mating shafts and housing shoulders, machining an undercut or fillet radius strictly within the inner ring clearance limit (85 mm bore side) ensures perfect planar contact without edge binding.
In its sealed configuration (Open Type), CHG Bearing pre-charges NN 3017 KTN9/UP with premium wide-temperature lithium-complex or polyurea grease, calibrated to a 30%–35% cavity volume ratio. For open-type variants, synthetic PAO or refined mineral lubricating oils with appropriate EP (Extreme Pressure) additives should be circulated.
As a primary manufacturer, CHG Bearing supports both trial batch evaluations and container-load supply for NN 3017 KTN9/UP. Standard catalog sizes are stocked for rapid 3–7 day dispatch, while high-volume OEM production runs typically dispatch within 30–45 days.
To ensure optimum performance of CHG Bearing NN 3017 KTN9/UP Super-Precision Cylindrical Roller Bearings under general rotational loads, our application engineers advise an inner-ring shaft tolerance of m5 or k5 for the 85 mm bore. For the 130 mm outer ring, an H7 or J7 housing bore fit is recommended to eliminate creep while accommodating normal thermal gradient expansion.
