Manufactured by CHG Bearing, the 5397/3370 is a precision Three-row Cylindrical Roller Slewing Bearings. Key dimensional parameters include a 3370 mm bore diameter, a 3832 mm outer diameter, and a 192 mm overall width. This component is designed to meet standard load requirements and ensure consistent operational performance. For comprehensive technical evaluation, please explore the detailed specifications, dimensional data, product images, and CAD drawings provided below. A complete PDF data sheet is also readily available for direct download to support your engineering and procurement needs.

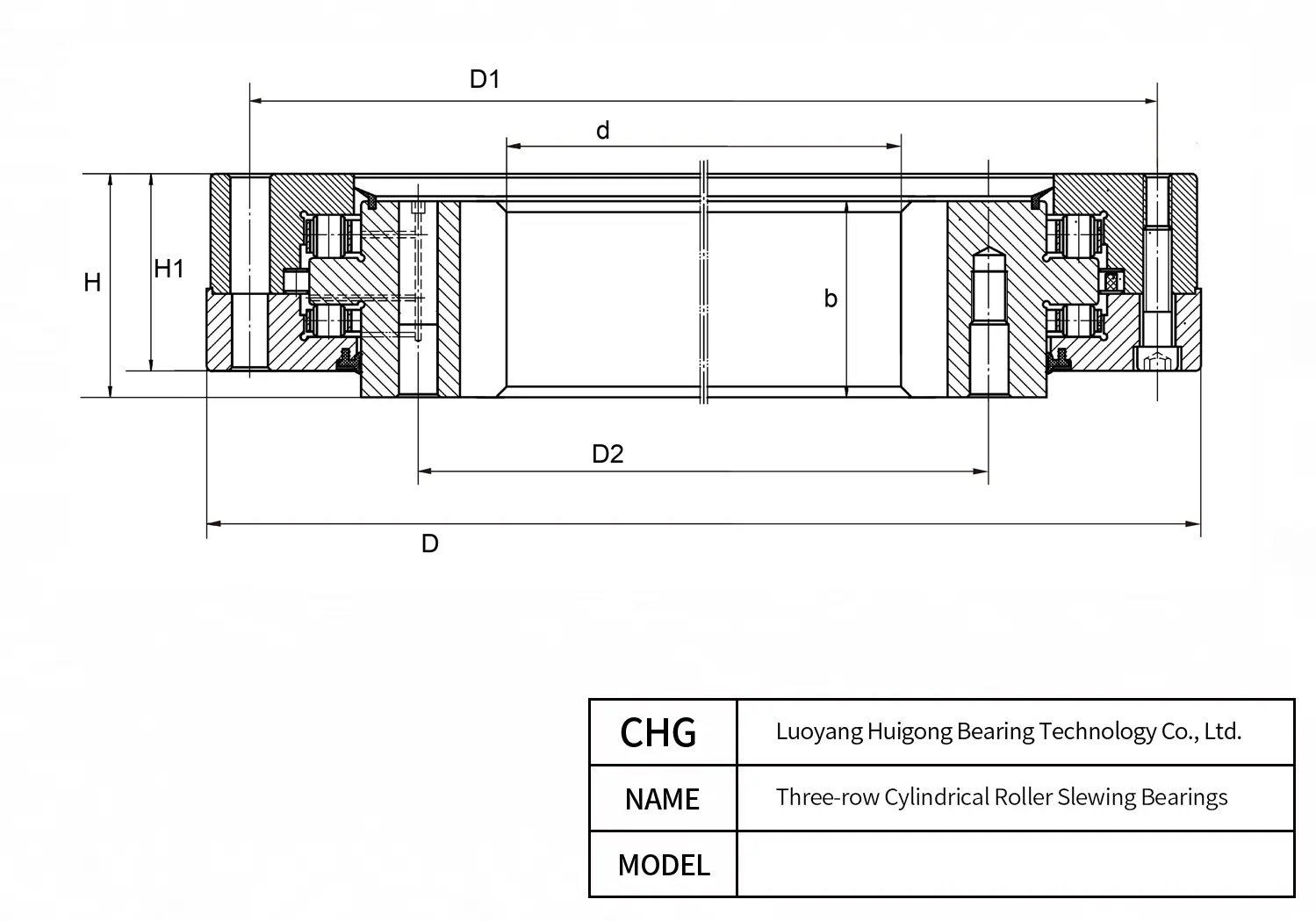

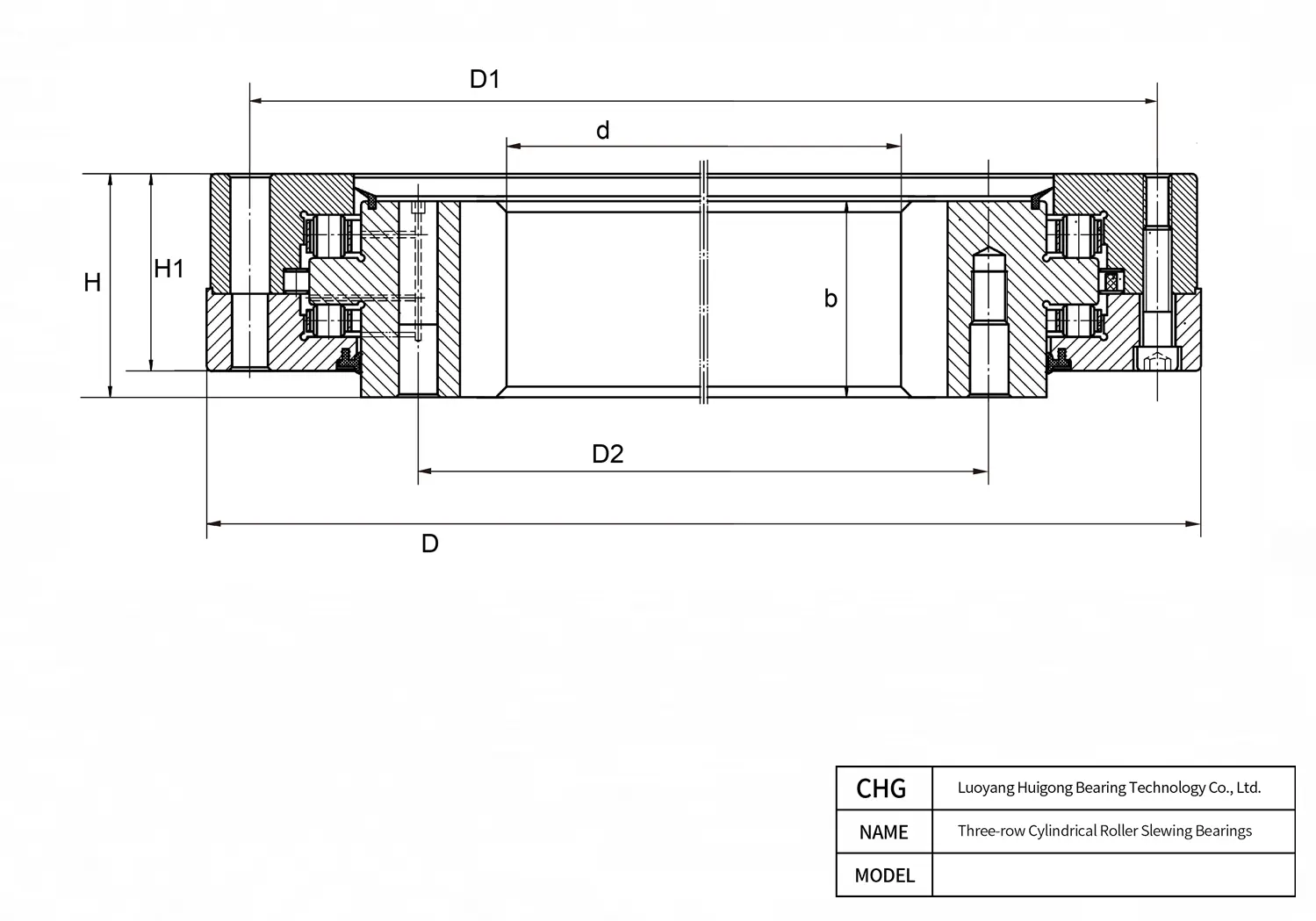

5397/3370 - Three-row Cylindrical Roller Slewing Bearings
Technical Specifications
| Overview | |
|---|---|
| Part Number | 5397/3370 |
| Brand | CHG® |
| Gear Type | Internal Gear |
| Characteristics | |
| Bearing Type | Three-row Cylindrical Roller Slewing Bearing |
| Row Configuration | Three-row |
| Dimensions | |
| Bore Diameter (d) | 3370 mm |
| Width (B) | 192 mm |
| Outer Diameter (D) | 3832 mm |
| Inner/Outer Ring Height H1 | 219 mm |
| End-face Height Difference h | 54 mm |
| Number of Lubrication Holes n1 | 6 |
| Mounting Dimensions | |
| Outer Ring Mounting Hole P.C.D. D1 | 2161 mm |
| Inner Ring Mounting Hole P.C.D. D2 | 1845 mm |
| Lubrication Port Thread / Size Φ1 | M10×1 |
| Inner Ring Mounting Hole Count n2 | 60 |
| Inner Ring Mounting Hole Specification Φ2 (Ø / Thread) | 39 |
| Outer Ring Mounting Hole Count n3 | 60 |
| Outer Ring Mounting Hole Specification Φ3 (Ø / Thread) | 39 |
| Gear Data | |
| Gear Module m | 16 mm |
| Gear Tip Diameter De | 1702.4 mm |
| Number of Gear Teeth z | 107 |
| Gear Face Width b | 160 mm |
| Addendum Modification Coefficient x | 0.5 |
| Reference Data | |
| Reference Mass (kg) | 2213 kg |
5397/3370 3832 mm 3370 mm 192 mm 2161 mm 1845 mm Frequently Asked Questions about 5397/3370 Three-row Cylindrical Roller Slewing Bearings
Find key technical answers regarding dimensions, specifications, and replacement options for this model.
The Open Type engineered for 5397/3370 by CHG Bearing utilizes precision non-contact metal shields or reinforced NBR/FKM contact lip seals. This barrier prevents particulate ingress, washdown fluids, and abrasive dust from reaching the raceways while eliminating grease leakage under centrifugal forces.
When fitting 5397/3370 over a 3370 mm shaft, CHG Bearing strictly recommends uniform induction heating (controlled between 90°C and 110°C) or precision hydraulic press sleeves. Under no circumstances should direct impact blows be struck against the rings or cage, as shock loads cause brinelling indents and premature spalling.
Model 5397/3370 is manufactured by CHG Bearing in standard Normal clearance (CN) for ambient temperature transmission, and C3 or C4 clearance for heavy duty applications. C3 clearance compensates for radial shrinkage caused by tight shaft press-fits (bore 3370 mm) and steep thermal gradients between inner and outer rings.
The CHG Bearing 5397/3370 is rated for limiting speeds up to standard rated RPM under forced oil-mist or circulating oil lubrication regimes. When lubricated with factory-filled synthetic high-speed grease, safe continuous velocity is maintained at approximately 75% to 85% of the maximum nominal limit, preventing thermal runaway.
