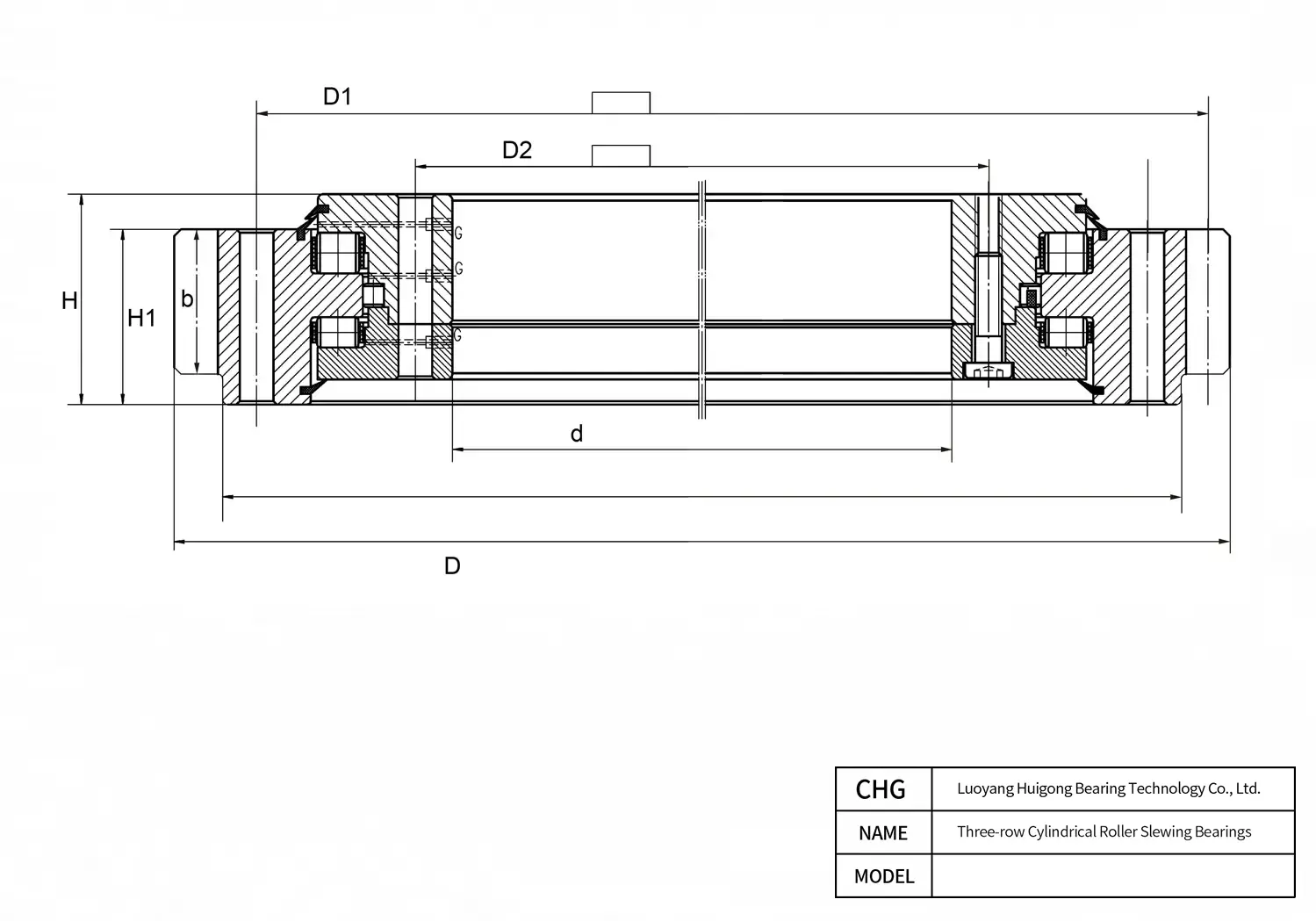

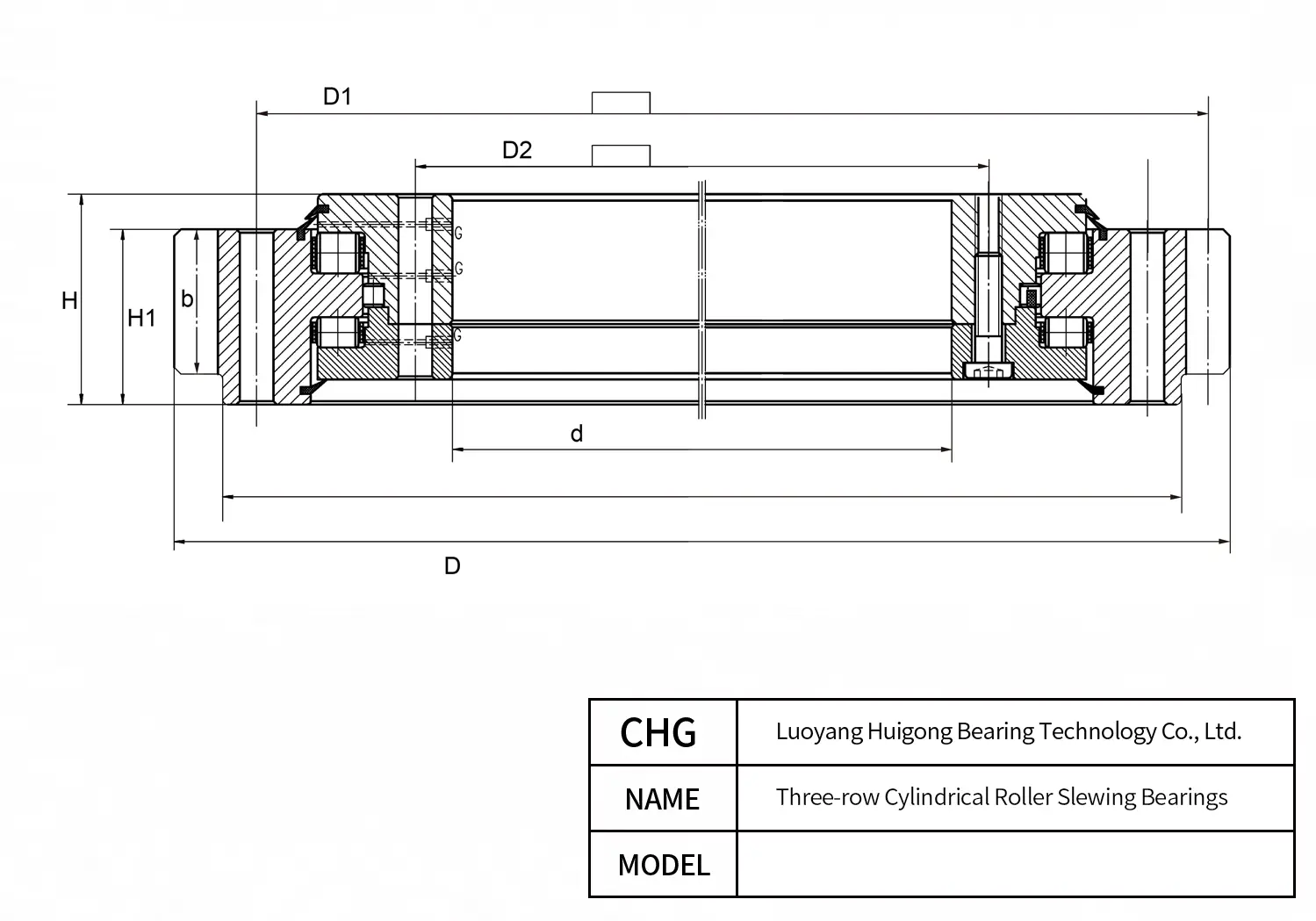

Manufactured by CHG Bearing, the 132.45.2800.03 is a precision Three-row Cylindrical Roller Slewing Bearings. Key dimensional parameters include a 2579 mm bore diameter, a 3021 mm outer diameter, and a 231 mm overall width. This component is designed to meet standard load requirements and ensure consistent operational performance. For comprehensive technical evaluation, please explore the detailed specifications, dimensional data, product images, and CAD drawings provided below. A complete PDF data sheet is also readily available for direct download to support your engineering and procurement needs.
132.45.2800.03 - Three-row Cylindrical Roller Slewing Bearings
Technical Specifications
| Overview | |
|---|---|
| Part Number | 132.45.2800.03 |
| Brand | CHG® |
| Gear Type | External Gear |
| Characteristics | |
| Bearing Type | Three-row Cylindrical Roller Slewing Bearing |
| Row Configuration | Three-row |
| Dimensions | |
| Bore Diameter (d) | 2579 mm |
| Width (B) | 231 mm |
| Outer Diameter (D) | 3021 mm |
| Inner/Outer Ring Height H1 | 180 mm |
| End-face Height Difference h | 32 mm |
| Number of Lubrication Holes n1 | 10 |
| Mounting Dimensions | |
| Outer Ring Mounting Hole P.C.D. D1 | 3735 mm |
| Inner Ring Mounting Hole P.C.D. D2 | 3441 mm |
| Lubrication Port Thread / Size Φ1 | G1/4 |
| Inner Ring Mounting Hole Count n2 | 108 |
| Inner Ring Mounting Hole Specification Φ2 (Ø / Thread) | 33 |
| Outer Ring Mounting Hole Count n3 | 108 |
| Outer Ring Mounting Hole Specification Φ3 (Ø / Thread) | 33 |
| Gear Data | |
| Gear Module m | 24 mm |
| Gear Tip Diameter De | 3931.2 mm |
| Number of Gear Teeth z | 161 |
| Gear Face Width b | 170 mm |
| Addendum Modification Coefficient x | 0.5 |
| Reference Data | |
| Reference Mass (kg) | 3804 kg |
132.45.2800.03 3021 mm 2579 mm 3735 mm 3441 mm 231 mm Frequently Asked Questions about 132.45.2800.03 Three-row Cylindrical Roller Slewing Bearings
Find key technical answers regarding dimensions, specifications, and replacement options for this model.
Following standard ISO 281 fatigue calculation guidelines, the nominal rating life (L10) of CHG Bearing 132.45.2800.03 correlates its dynamic capacity (standard dynamic) with equivalent dynamic loads. In controlled industrial settings with proper contamination-free filtration, field data confirms continuous operational longevity exceeding 20,000 to 50,000 service hours.
Quality starts with raw material selection: CHG Bearing crafts 132.45.2800.03 inner and outer rings from high-purity High-Quality Chrome Steel (GCr15/100Cr6). Our raw billets undergo vacuum degassing and secondary ESR (electroslag remelting) processes to drastically eliminate non-metallic sulfide and oxide inclusions, elevating subsurface contact fatigue resistance.
Each 132.45.2800.03 produced in CHG Bearing manufacturing facilities features accurately profiled corner chamfers complying with DIN 5412 / ISO standard corner radii. When designing mating shafts and housing shoulders, machining an undercut or fillet radius strictly within the inner ring clearance limit (2579 mm bore side) ensures perfect planar contact without edge binding.
Yes, CHG Bearing works closely with industrial OEMs and brand distributors. We offer turnkey custom engineering for 132.45.2800.03, including laser-etched customer logos, custom internal radial clearances, specialized grease formulations, and bespoke protective packaging.
