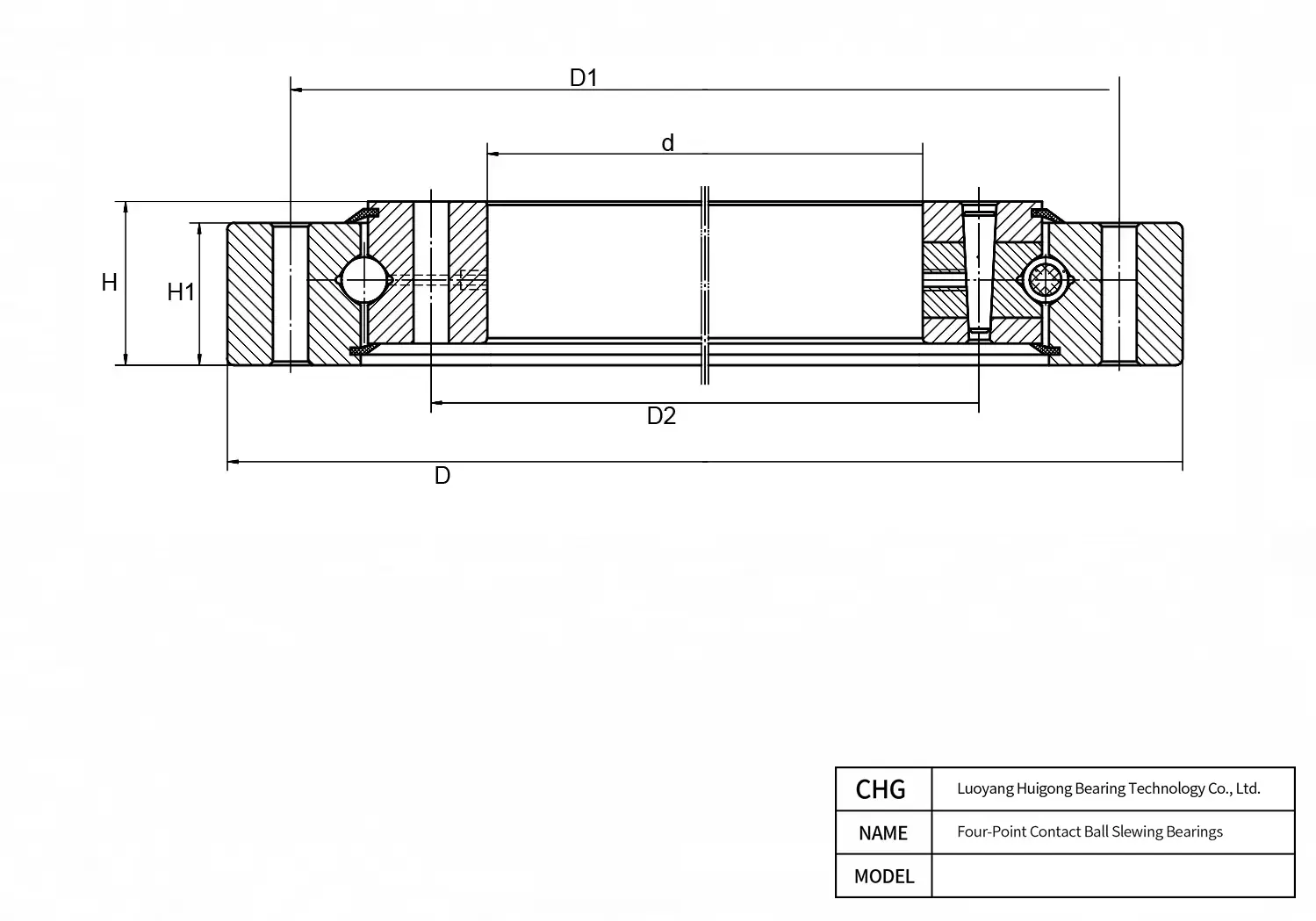

Manufactured by CHG Bearing, the 04.035.00.0.CM is a precision Four-Point Contact Ball Slewing Bearings. Key dimensional parameters include a 434 mm bore diameter, a 648 mm outer diameter, and a 56 mm overall width. This component is designed to meet standard load requirements and ensure consistent operational performance. For comprehensive technical evaluation, please explore the detailed specifications, dimensional data, product images, and CAD drawings provided below. A complete PDF data sheet is also readily available for direct download to support your engineering and procurement needs.
04.035.00.0.CM - Four-Point Contact Ball Slewing Bearings
Technical Specifications
| Overview | |
|---|---|
| Part Number | 04.035.00.0.CM |
| Brand | CHG® |
| Gear Type | Gearless |
| Characteristics | |
| Bearing Type | Single-row Four-point Contact Ball Slewing Bearing |
| Row Configuration | Single-row |
| Dimensions | |
| Bore Diameter (d) | 434 mm |
| Width (B) | 56 mm |
| Outer Diameter (D) | 648 mm |
| Number of Lubrication Holes n1 | 4 |
| Mounting Dimensions | |
| Outer Ring Mounting Hole P.C.D. D1 | 620 mm |
| Inner Ring Mounting Hole P.C.D. D2 | 462 mm |
| Lubrication Port Thread / Size Φ1 | 8 |
| Inner Ring Mounting Hole Count n2 | 14 |
| Inner Ring Mounting Hole Specification Φ2 (Ø / Thread) | 18 |
| Outer Ring Mounting Hole Count n3 | 10 |
| Outer Ring Mounting Hole Specification Φ3 (Ø / Thread) | 18 |
| Reference Data | |
| Reference Mass (kg) | 33.1 kg |
04.035.00.0.CM 648 mm 434 mm 56 mm 462 mm 620 mm Frequently Asked Questions about 04.035.00.0.CM Four-Point Contact Ball Slewing Bearings
Find key technical answers regarding dimensions, specifications, and replacement options for this model.
Each 04.035.00.0.CM produced in CHG Bearing manufacturing facilities features accurately profiled corner chamfers complying with DIN 5412 / ISO standard corner radii. When designing mating shafts and housing shoulders, machining an undercut or fillet radius strictly within the inner ring clearance limit (434 mm bore side) ensures perfect planar contact without edge binding.
Built for demanding industrial environments, the 04.035.00.0.CM Four-Point Contact Ball Slewing Bearings by CHG Bearing boasts a dynamic load rating (Cr) of standard dynamic and a static load threshold (C0r) of standard static. The optimized internal raceway geometry balances stress distribution, mitigating edge loading even when operating under peak mechanical stresses.
As a primary manufacturer, CHG Bearing supports both trial batch evaluations and container-load supply for 04.035.00.0.CM. Standard catalog sizes are stocked for rapid 3–7 day dispatch, while high-volume OEM production runs typically dispatch within 30–45 days.
To extend the trouble-free lifespan of CHG Bearing 04.035.00.0.CM, preventive maintenance routines should monitor operating housing temperature (normally maintaining below 70°C) and conduct regular vibration FFT analysis to identify early raceway micro-pitting before unexpected line halts occur.
