Manufactured by CHG Bearing, the 011.08.121.03 is a precision Four-Point Contact Ball Slewing Bearings. Key dimensional parameters include a 83 mm bore diameter, a 160 mm outer diameter, and a 25 mm overall width. This component is designed to meet standard load requirements and ensure consistent operational performance. For comprehensive technical evaluation, please explore the detailed specifications, dimensional data, product images, and CAD drawings provided below. A complete PDF data sheet is also readily available for direct download to support your engineering and procurement needs.
011.08.121.03 - Four-Point Contact Ball Slewing Bearings
Technical Specifications
| Overview | |
|---|---|
| Part Number | 011.08.121.03 |
| Brand | CHG® |
| Gear Type | External Gear |
| Characteristics | |
| Bearing Type | Single-row Four-point Contact Ball Slewing Bearing |
| Row Configuration | Single-row |
| Dimensions | |
| Bore Diameter (d) | 83 mm |
| Width (B) | 25 mm |
| Outer Diameter (D) | 160 mm |
| Number of Lubrication Holes n1 | 2 |
| Mounting Dimensions | |
| Outer Ring Mounting Hole P.C.D. D1 | 146 mm |
| Inner Ring Mounting Hole P.C.D. D2 | 97 mm |
| Lubrication Port Thread / Size Φ1 | 6 |
| Inner Ring Mounting Hole Count n2 | 14 |
| Inner Ring Mounting Hole Specification Φ2 (Ø / Thread) | 6.5 |
| Outer Ring Mounting Hole Count n3 | 16 |
| Outer Ring Mounting Hole Specification Φ3 (Ø / Thread) | 6.5 |
| Gear Data | |
| Gear Module m | 2.5 mm |
| Gear Tip Diameter De | 172.5 mm |
| Number of Gear Teeth z | 69 |
| Gear Face Width b | 15 mm |
| Addendum Modification Coefficient x | 0 |
| Reference Data | |
| Reference Mass (kg) | 2.05 kg |

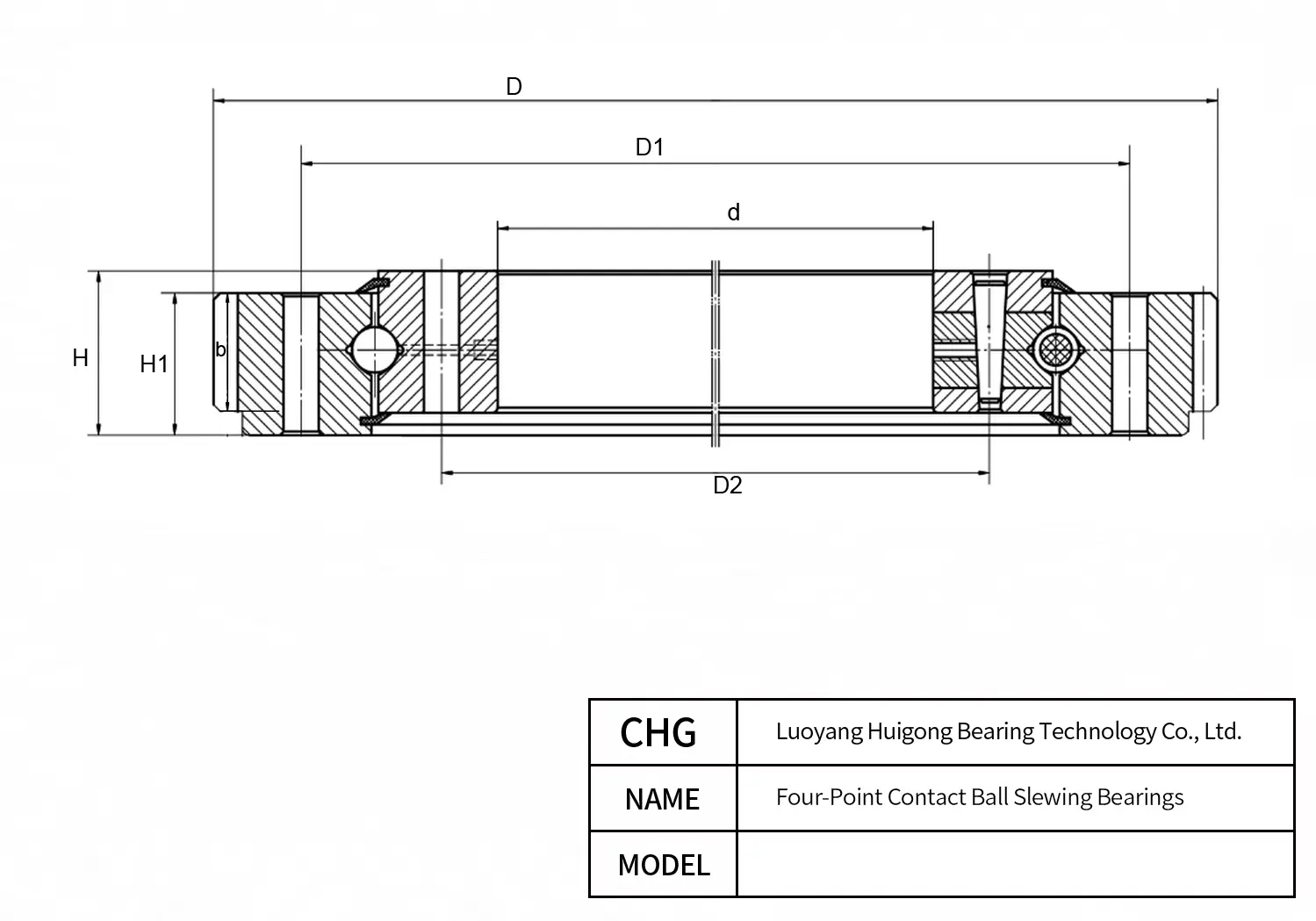

011.08.121.03 160 mm 146 mm 83 mm 25 mm 97 mm Frequently Asked Questions about 011.08.121.03 Four-Point Contact Ball Slewing Bearings
Find key technical answers regarding dimensions, specifications, and replacement options for this model.
Model 011.08.121.03 is manufactured by CHG Bearing in standard Normal clearance (CN) for ambient temperature transmission, and C3 or C4 clearance for heavy duty applications. C3 clearance compensates for radial shrinkage caused by tight shaft press-fits (bore 83 mm) and steep thermal gradients between inner and outer rings.
To ensure optimum performance of CHG Bearing 011.08.121.03 Four-Point Contact Ball Slewing Bearings under general rotational loads, our application engineers advise an inner-ring shaft tolerance of m5 or k5 for the 83 mm bore. For the 160 mm outer ring, an H7 or J7 housing bore fit is recommended to eliminate creep while accommodating normal thermal gradient expansion.
Standard batches of CHG Bearing 011.08.121.03 conform strictly to ISO Class Normal (ABEC-1). For high-precision machine tool spindles, gearboxes, or robotics requiring tighter runouts, CHG Bearing can provide custom batches graded to ISO Class 6 (P6/ABEC-3) or ISO Class 5 (P5/ABEC-5) with 100% micrometer verification.
In its sealed configuration (Open Type), CHG Bearing pre-charges 011.08.121.03 with premium wide-temperature lithium-complex or polyurea grease, calibrated to a 30%–35% cavity volume ratio. For open-type variants, synthetic PAO or refined mineral lubricating oils with appropriate EP (Extreme Pressure) additives should be circulated.
