Manufactured by CHG Bearing, the 024.25.630 is a precision Double-Row Ball Slewing Bearings. Key dimensional parameters include a 514 mm bore diameter, a 746 mm outer diameter, and a 106 mm overall width. This component is designed to meet standard load requirements and ensure consistent operational performance. For comprehensive technical evaluation, please explore the detailed specifications, dimensional data, product images, and CAD drawings provided below. A complete PDF data sheet is also readily available for direct download to support your engineering and procurement needs.
024.25.630 - Double-Row Ball Slewing Bearings
Technical Specifications
| Overview | |
|---|---|
| Part Number | 024.25.630 |
| Brand | CHG® |
| Gear Type | Internal Gear |
| Characteristics | |
| Bearing Type | Double-Row Ball Slewing Bearing |
| Row Configuration | Double Row |
| Dimensions | |
| Bore Diameter (d) | 514 mm |
| Width (B) | 106 mm |
| Outer Diameter (D) | 746 mm |
| End-face Height Difference h | 26 mm |
| Number of Lubrication Holes n1 | 4 |
| Ring Height H1 | 96 mm |
| Mounting Hole Diameter Φ | 18 mm |
| Performance | |
| Mounting Hole Count n | 24 |
| Tangential Tooth Force, Normalized Z (×10⁴ N) | 6 ×10⁴ N |
| Tangential Tooth Force, Quenched T (×10⁴ N) | 8.3 ×10⁴ N |
| Mounting Dimensions | |
| Outer Ring Mounting Hole P.C.D. D1 | 710 mm |
| Inner Ring Mounting Hole P.C.D. D2 | 550 mm |
| Lubrication Port Thread / Size Φ1 | M10×1 |
| Gear Data | |
| Gear Module m | 8 mm |
| Gear Tip Diameter De | 475.2 mm |
| Number of Gear Teeth z | 60 |
| Gear Face Width b | 60 mm |
| Addendum Modification Coefficient x | 0.5 |
| Reference Data | |
| Reference Mass (kg) | 130 kg |

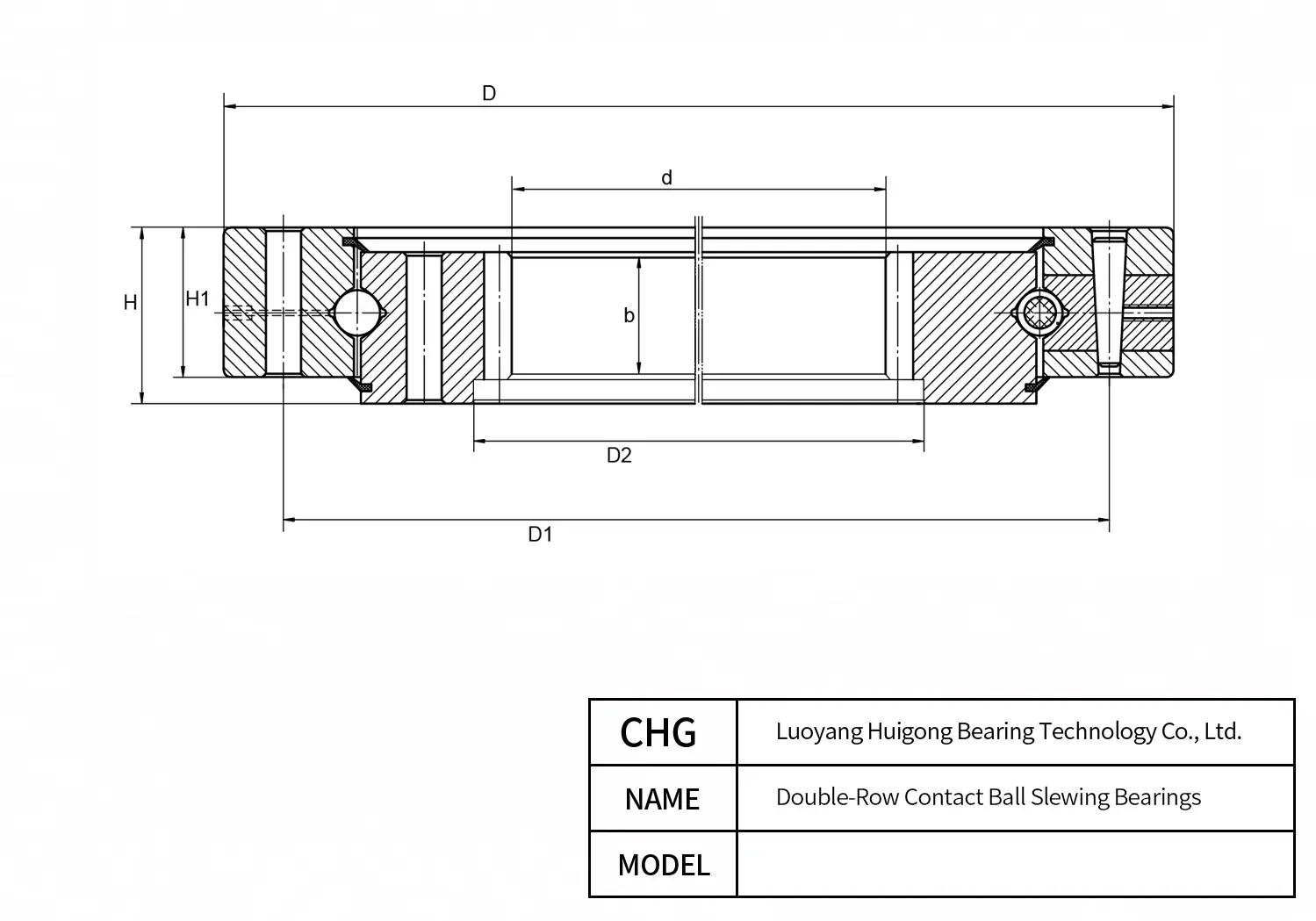

024.25.630 710 mm 550 mm 106 mm 514 mm 746 mm Frequently Asked Questions about 024.25.630 Double-Row Ball Slewing Bearings
Find key technical answers regarding dimensions, specifications, and replacement options for this model.
Absolutely. The CHG Bearing 024.25.630 Double-Row Ball Slewing Bearings is a 1:1 direct interchange for renowned brands, matching part numbers: SKF 024.25.630, FAG 024.25.630, NSK 024.25.630. It shares identical envelope boundary dimensions, load capacities, and shaft fits, allowing instant drop-in replacement without retrofitting your machinery.
Yes, CHG Bearing works closely with industrial OEMs and brand distributors. We offer turnkey custom engineering for 024.25.630, including laser-etched customer logos, custom internal radial clearances, specialized grease formulations, and bespoke protective packaging.
Every production batch of CHG Bearing 024.25.630 Double-Row Ball Slewing Bearings comes with complete traceability. Upon shipment, CHG Bearing can provide EN 10204 3.1 Material Test Reports (MTR), Certificates of Conformity (CoC), spectral chemical composition analysis, and dimensional inspection sheets.
To safeguard CHG Bearing 024.25.630 against fretting wear and false brinelling during transport or vibration, assemble mating surfaces (514 mm x 746 mm) using anti-fretting mounting paste. Maintaining strict alignment and avoiding prolonged static vibration will preserve raceway polish.
