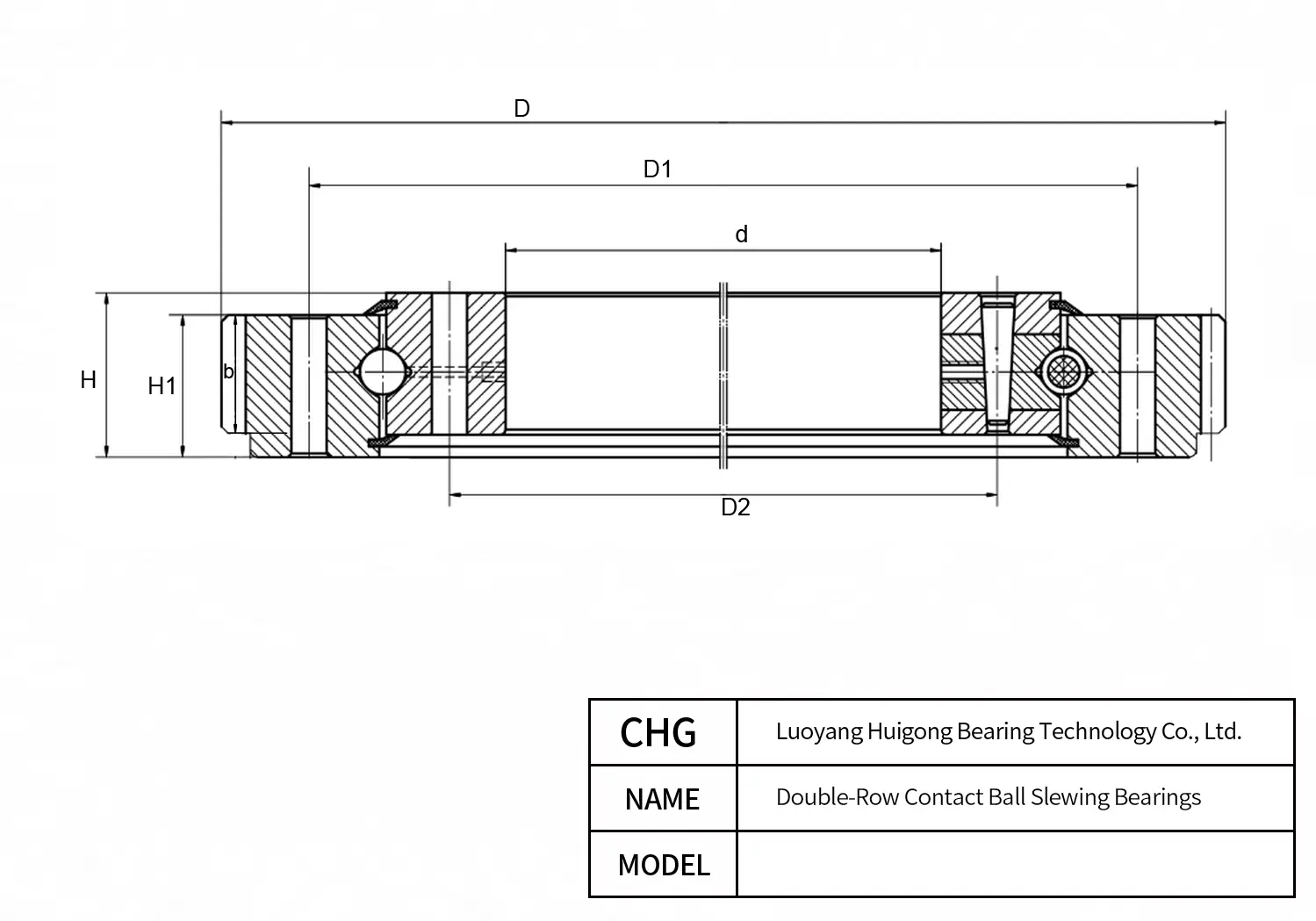

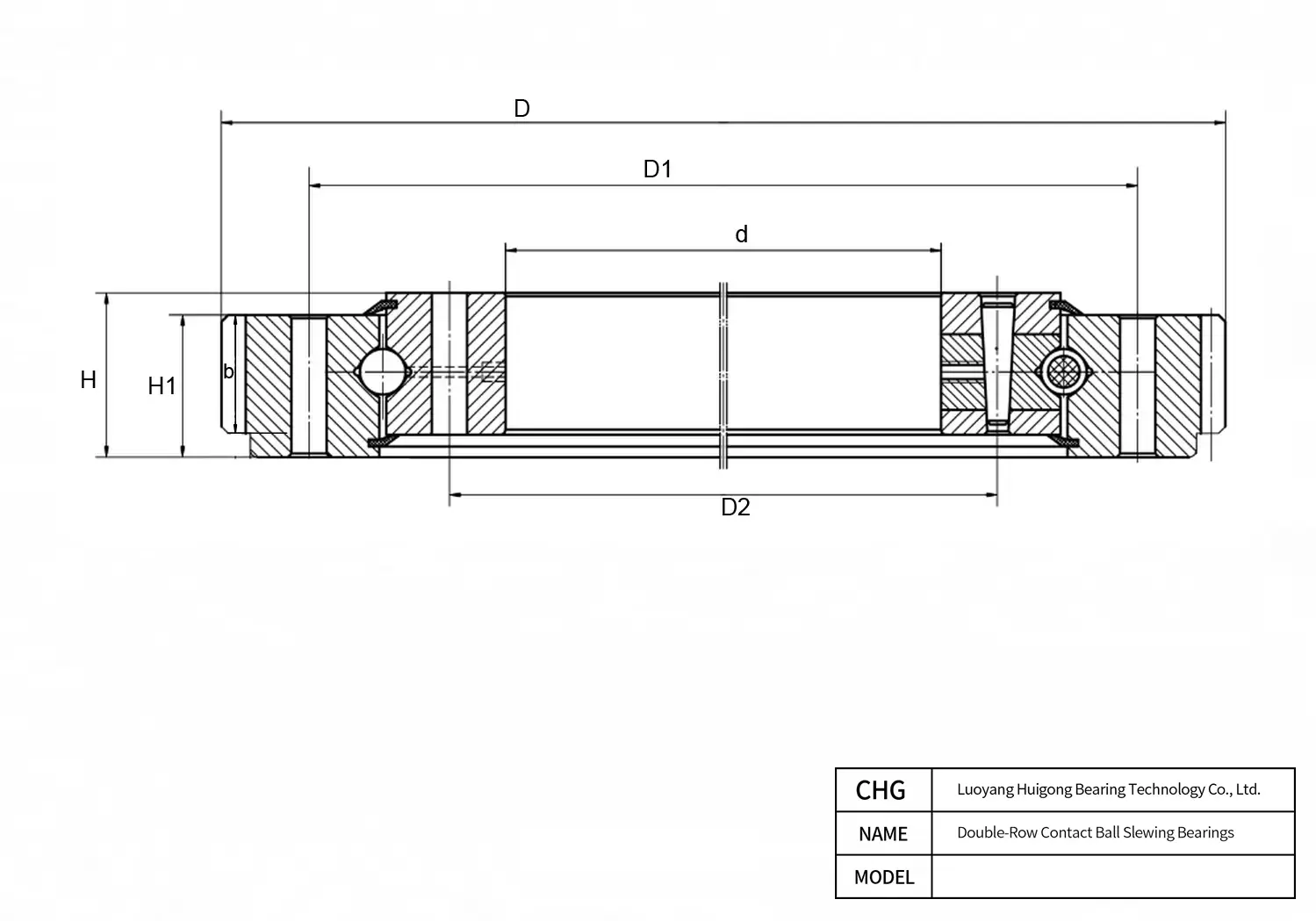

Manufactured by CHG Bearing, the 022.60.3150 is a precision Double-Row Ball Slewing Bearings. Key dimensional parameters include a 2872 mm bore diameter, a 3428 mm outer diameter, and a 226 mm overall width. This component is designed to meet standard load requirements and ensure consistent operational performance. For comprehensive technical evaluation, please explore the detailed specifications, dimensional data, product images, and CAD drawings provided below. A complete PDF data sheet is also readily available for direct download to support your engineering and procurement needs.
022.60.3150 - Double-Row Ball Slewing Bearings
Technical Specifications
| Overview | |
|---|---|
| Part Number | 022.60.3150 |
| Brand | CHG® |
| Gear Type | External Gear |
| Characteristics | |
| Bearing Type | Double-Row Ball Slewing Bearing |
| Row Configuration | Double Row |
| Dimensions | |
| Bore Diameter (d) | 2872 mm |
| Width (B) | 226 mm |
| Outer Diameter (D) | 3428 mm |
| End-face Height Difference h | 56 mm |
| Number of Lubrication Holes n1 | 8 |
| Ring Height H1 | 214 mm |
| Mounting Hole Diameter Φ | 45 mm |
| Performance | |
| Mounting Hole Count n | 56 |
| Tangential Tooth Force, Normalized Z (×10⁴ N) | 41.5 ×10⁴ N |
| Tangential Tooth Force, Quenched T (×10⁴ N) | 57.4 ×10⁴ N |
| Mounting Dimensions | |
| Outer Ring Mounting Hole P.C.D. D1 | 3338 mm |
| Inner Ring Mounting Hole P.C.D. D2 | 2962 mm |
| Lubrication Port Thread / Size Φ1 | M10×1 |
| Gear Data | |
| Gear Module m | 22 mm |
| Gear Tip Diameter De | 3537.6 mm |
| Number of Gear Teeth z | 158 |
| Gear Face Width b | 150 mm |
| Addendum Modification Coefficient x | 0.5 |
| Reference Data | |
| Reference Mass (kg) | 3300 kg |
022.60.3150 3428 mm 2872 mm 226 mm 3338 mm 2962 mm Frequently Asked Questions about 022.60.3150 Double-Row Ball Slewing Bearings
Find key technical answers regarding dimensions, specifications, and replacement options for this model.
When fitting 022.60.3150 over a 2872 mm shaft, CHG Bearing strictly recommends uniform induction heating (controlled between 90°C and 110°C) or precision hydraulic press sleeves. Under no circumstances should direct impact blows be struck against the rings or cage, as shock loads cause brinelling indents and premature spalling.
Standard batches of CHG Bearing 022.60.3150 conform strictly to ISO Class Normal (ABEC-1). For high-precision machine tool spindles, gearboxes, or robotics requiring tighter runouts, CHG Bearing can provide custom batches graded to ISO Class 6 (P6/ABEC-3) or ISO Class 5 (P5/ABEC-5) with 100% micrometer verification.
As standard production, CHG Bearing subjects 022.60.3150 to precision bainite or martensite quenching, offering dimensional stability up to 120°C (248°F). For high-heat processing equipment, CHG Bearing also supplies custom S0 (150°C), S1 (200°C), or S2 (250°C) stabilization heat treatments upon request to prevent residual austenite transformation.
To safeguard CHG Bearing 022.60.3150 against fretting wear and false brinelling during transport or vibration, assemble mating surfaces (2872 mm x 3428 mm) using anti-fretting mounting paste. Maintaining strict alignment and avoiding prolonged static vibration will preserve raceway polish.
