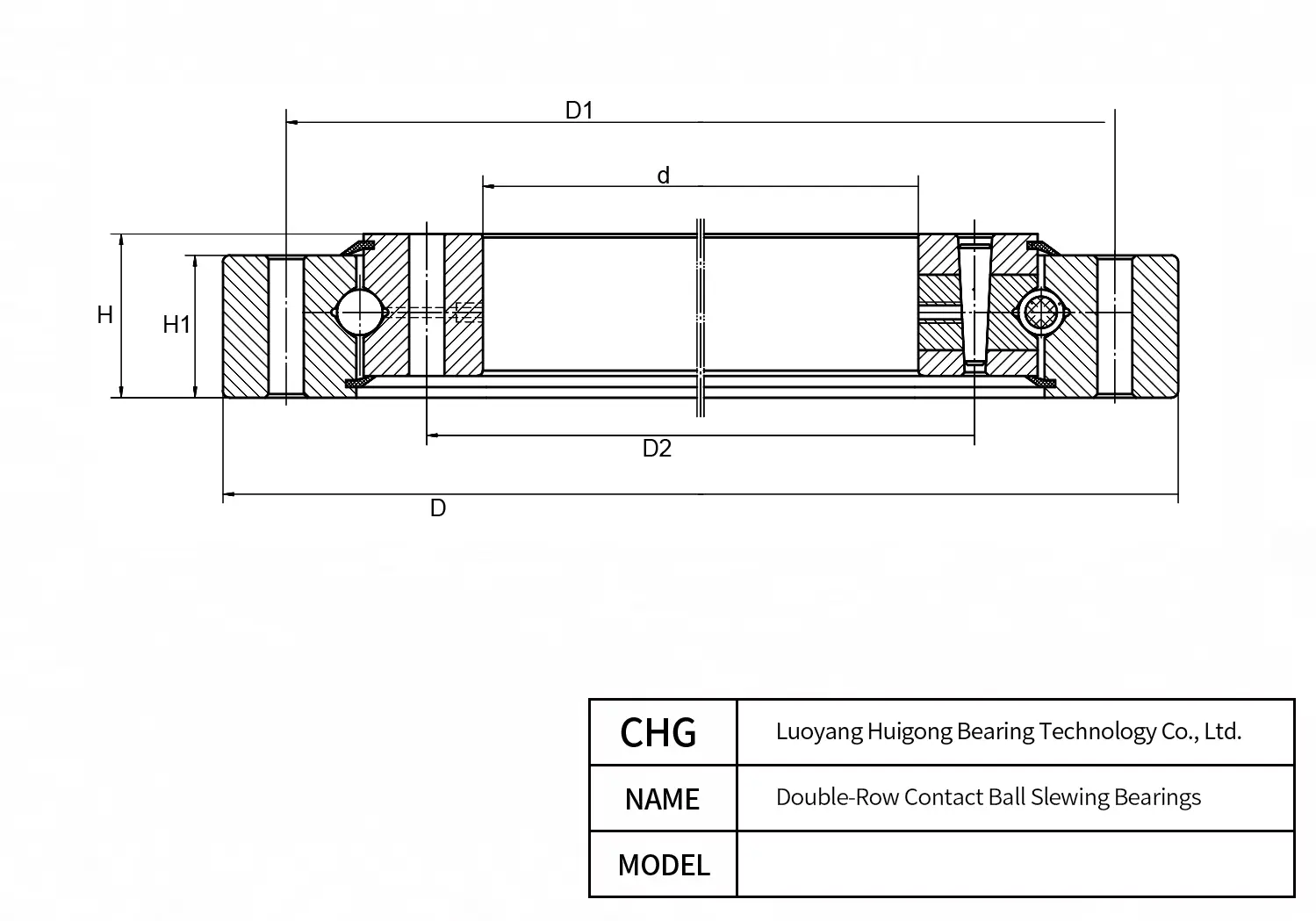

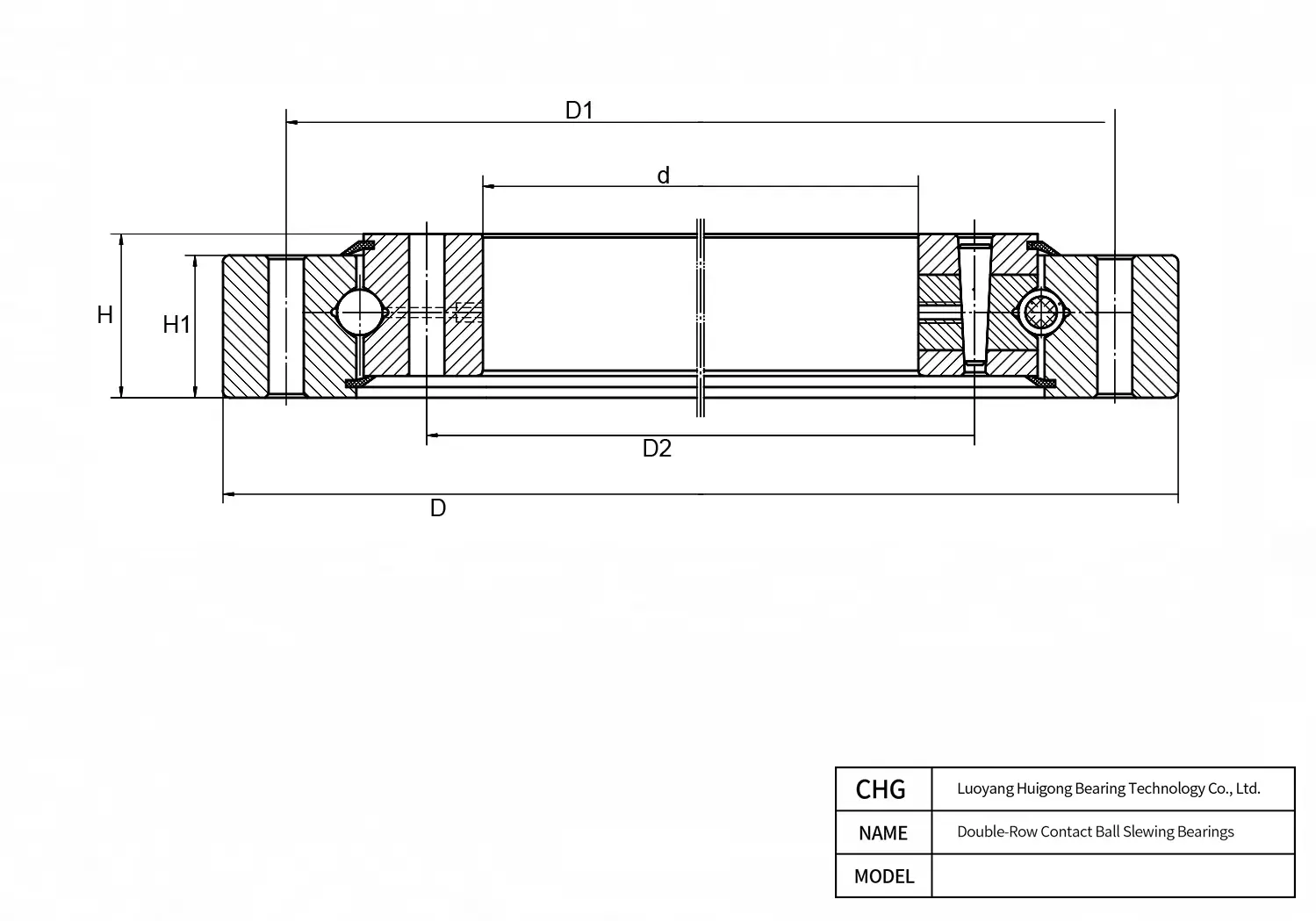

Manufactured by CHG Bearing, the 020.50.2500 is a precision Double-Row Ball Slewing Bearings. Key dimensional parameters include a 2285 mm bore diameter, a 2715 mm outer diameter, and a 190 mm overall width. This component is designed to meet standard load requirements and ensure consistent operational performance. For comprehensive technical evaluation, please explore the detailed specifications, dimensional data, product images, and CAD drawings provided below. A complete PDF data sheet is also readily available for direct download to support your engineering and procurement needs.
020.50.2500 - Double-Row Ball Slewing Bearings
Technical Specifications
| Overview | |
|---|---|
| Part Number | 020.50.2500 |
| Brand | CHG® |
| Gear Type | Gearless |
| Characteristics | |
| Bearing Type | Double-Row Ball Slewing Bearing |
| Row Configuration | Double Row |
| Dimensions | |
| Bore Diameter (d) | 2285 mm |
| Width (B) | 190 mm |
| Outer Diameter (D) | 2715 mm |
| End-face Height Difference h | 47 mm |
| Number of Lubrication Holes n1 | 8 |
| Ring Height H1 | 178 mm |
| Mounting Hole Diameter Φ | 33 mm |
| Performance | |
| Mounting Hole Count n | 56 |
| Mounting Dimensions | |
| Outer Ring Mounting Hole P.C.D. D1 | 2649 mm |
| Inner Ring Mounting Hole P.C.D. D2 | 2351 mm |
| Lubrication Port Thread / Size Φ1 | M10×1 |
| Reference Data | |
| Reference Mass (kg) | 1700 kg |
020.50.2500 2715 mm 2285 mm 190 mm 2351 mm 2649 mm Frequently Asked Questions about 020.50.2500 Double-Row Ball Slewing Bearings
Find key technical answers regarding dimensions, specifications, and replacement options for this model.
When fitting 020.50.2500 over a 2285 mm shaft, CHG Bearing strictly recommends uniform induction heating (controlled between 90°C and 110°C) or precision hydraulic press sleeves. Under no circumstances should direct impact blows be struck against the rings or cage, as shock loads cause brinelling indents and premature spalling.
For international ocean and air freight, CHG Bearing packs 020.50.2500 with industrial VCI anti-corrosion barrier wrapping, sealed polybags, individual cartons, and fumigated ocean-worthy wooden crates. This multi-layer barrier guarantees rust-free storage for a minimum shelf life of 24 to 36 months.
To match diverse operational dynamics, CHG Bearing supplies 020.50.2500 with multiple cage configurations: high-strength pressed steel ribbon cages for standard duty, solid machined brass cages (M/CA) for heavy vibration and shock loads, or lightweight glass-fiber reinforced polyamide cages (TN9/TVP) for high acceleration and ultra-low noise.
Beyond standard alloy steel, CHG Bearing can customize the 020.50.2500 Double-Row Ball Slewing Bearings using AISI 440C stainless steel, black oxide coating, zinc-nickel plating, or hybrid ceramic (Si3N4) balls for applications involving chemical exposure, marine salt fog, or galvanic current hazards.
