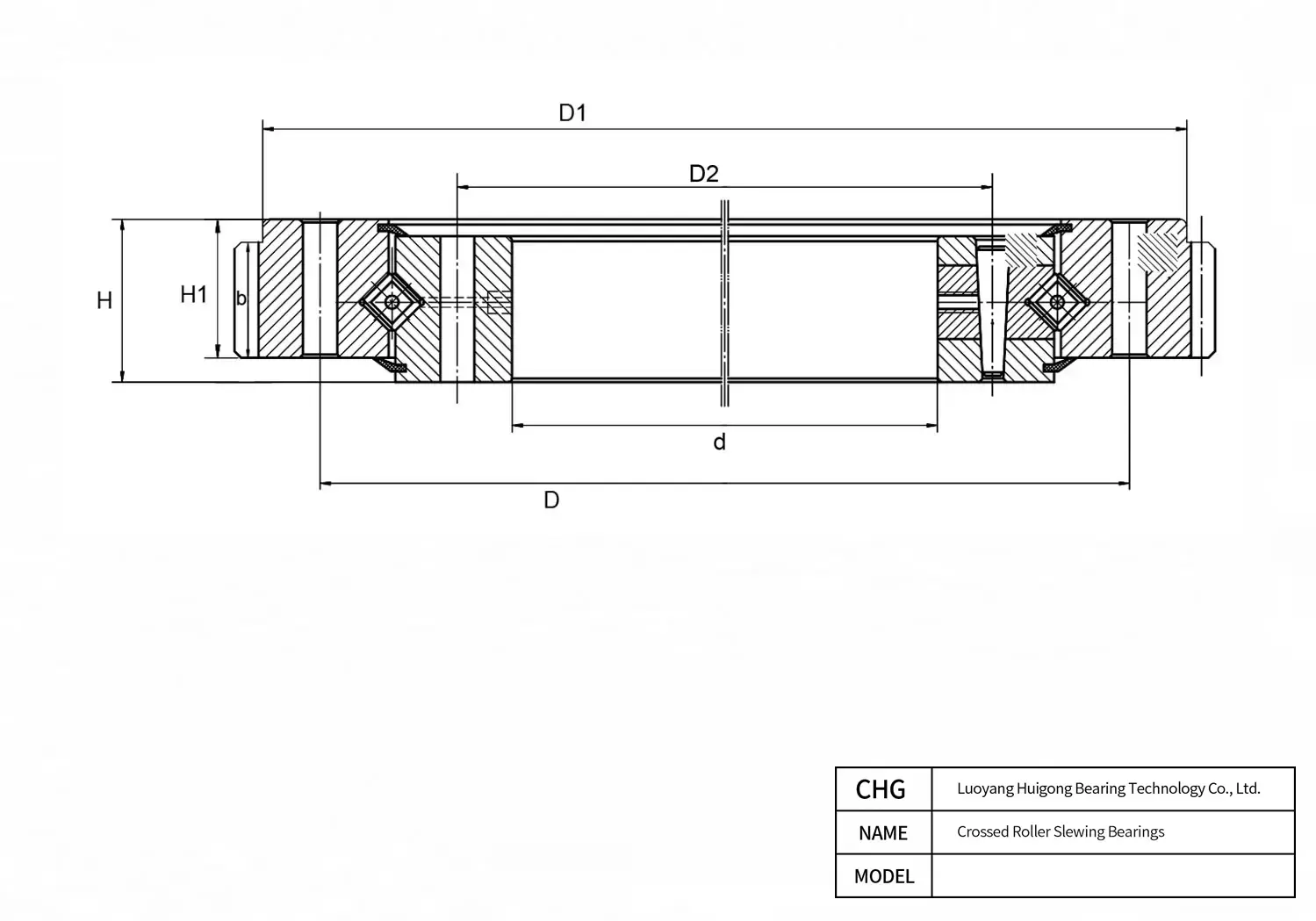

Manufactured by CHG Bearing, the 792/1280G2 is a precision Crossed Roller Slewing Bearings. Key dimensional parameters include a 1280 mm bore diameter, a 1600 mm outer diameter, and a 175 mm overall width. This component is designed to meet standard load requirements and ensure consistent operational performance. For comprehensive technical evaluation, please explore the detailed specifications, dimensional data, product images, and CAD drawings provided below. A complete PDF data sheet is also readily available for direct download to support your engineering and procurement needs.
792/1280G2 - Crossed Roller Slewing Bearings
Technical Specifications
| Overview | |
|---|---|
| Part Number | 792/1280G2 |
| Brand | CHG® |
| Gear Type | External Gear |
| Characteristics | |
| Bearing Type | Single-row Crossed Roller Slewing Bearing |
| Row Configuration | Single-row |
| Dimensions | |
| Bore Diameter (d) | 1280 mm |
| Width (B) | 175 mm |
| Outer Diameter (D) | 1600 mm |
| Inner/Outer Ring Height H1 | 160 mm |
| End-face Height Difference h | 15 mm |
| Number of Lubrication Holes n1 | 12 |
| Mounting Dimensions | |
| Outer Ring Mounting Hole P.C.D. D1 | 1550 mm |
| Inner Ring Mounting Hole P.C.D. D2 | 1340 mm |
| Lubrication Port Thread / Size Φ1 | 12 |
| Inner Ring Mounting Hole Count n2 | 24 |
| Inner Ring Mounting Hole Specification Φ2 (Ø / Thread) | 22 |
| Outer Ring Mounting Hole Count n3 | 24 |
| Outer Ring Mounting Hole Specification Φ3 (Ø / Thread) | 22 |
| Reference Data | |
| Reference Mass (kg) | 758 kg |
792/1280G2 1600 mm 1280 mm 175 mm 1550 mm 1340 mm Frequently Asked Questions about 792/1280G2 Crossed Roller Slewing Bearings
Find key technical answers regarding dimensions, specifications, and replacement options for this model.
Sourcing 792/1280G2 directly from CHG Bearing eliminates intermediate brokerage markups while granting you factory-direct engineering backup, rigorous ISO-certified quality assurance, competitive volume wholesale pricing, and dependable supply chain stability for Crossed Roller Slewing Bearings.
To ensure optimum performance of CHG Bearing 792/1280G2 Crossed Roller Slewing Bearings under general rotational loads, our application engineers advise an inner-ring shaft tolerance of m5 or k5 for the 1280 mm bore. For the 1600 mm outer ring, an H7 or J7 housing bore fit is recommended to eliminate creep while accommodating normal thermal gradient expansion.
Absolutely. The CHG Bearing 792/1280G2 Crossed Roller Slewing Bearings is a 1:1 direct interchange for renowned brands, matching part numbers: SKF 792/1280G2, FAG 792/1280G2, NSK 792/1280G2. It shares identical envelope boundary dimensions, load capacities, and shaft fits, allowing instant drop-in replacement without retrofitting your machinery.
The CHG Bearing 792/1280G2 is rated for limiting speeds up to standard rated RPM under forced oil-mist or circulating oil lubrication regimes. When lubricated with factory-filled synthetic high-speed grease, safe continuous velocity is maintained at approximately 75% to 85% of the maximum nominal limit, preventing thermal runaway.
