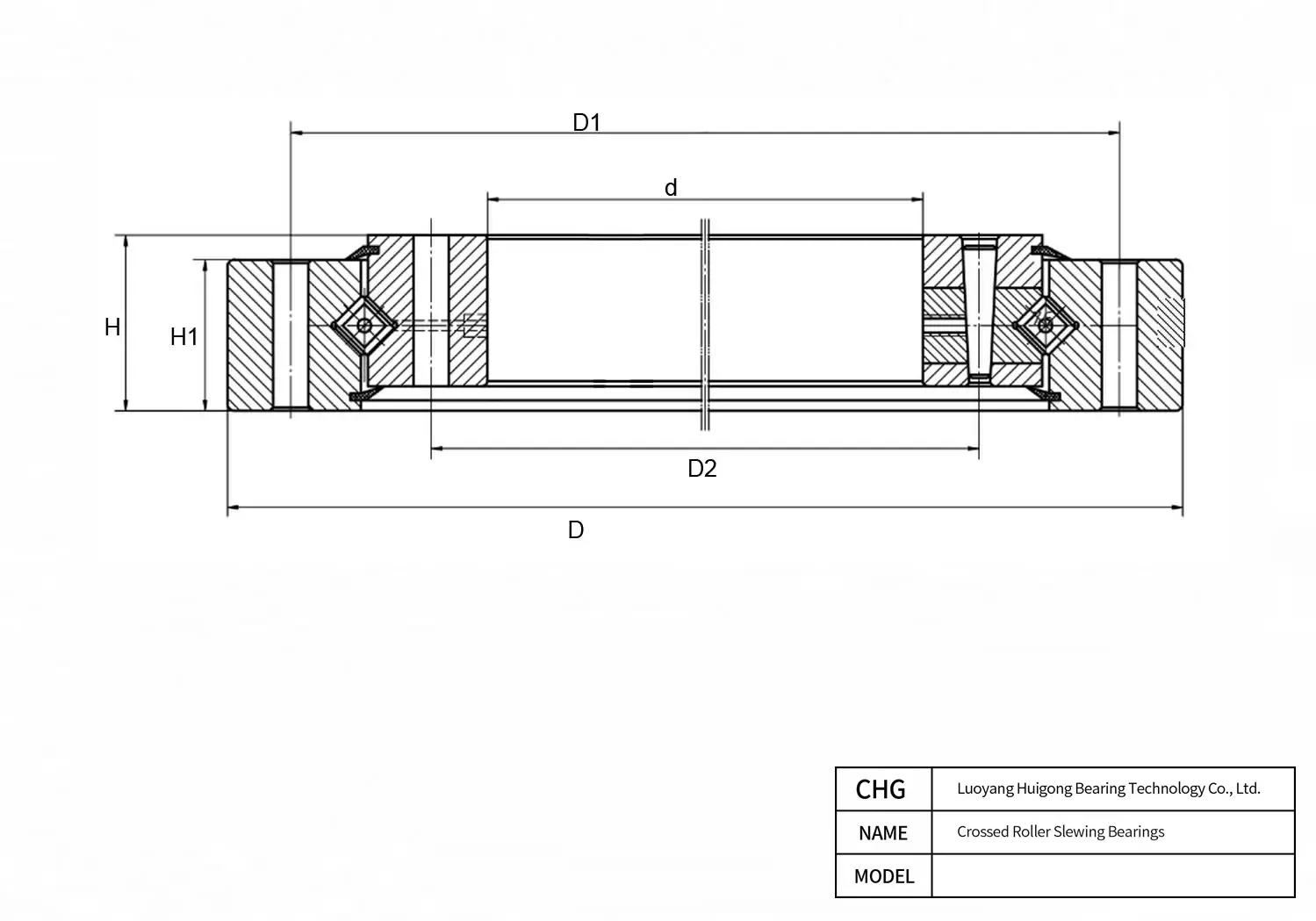

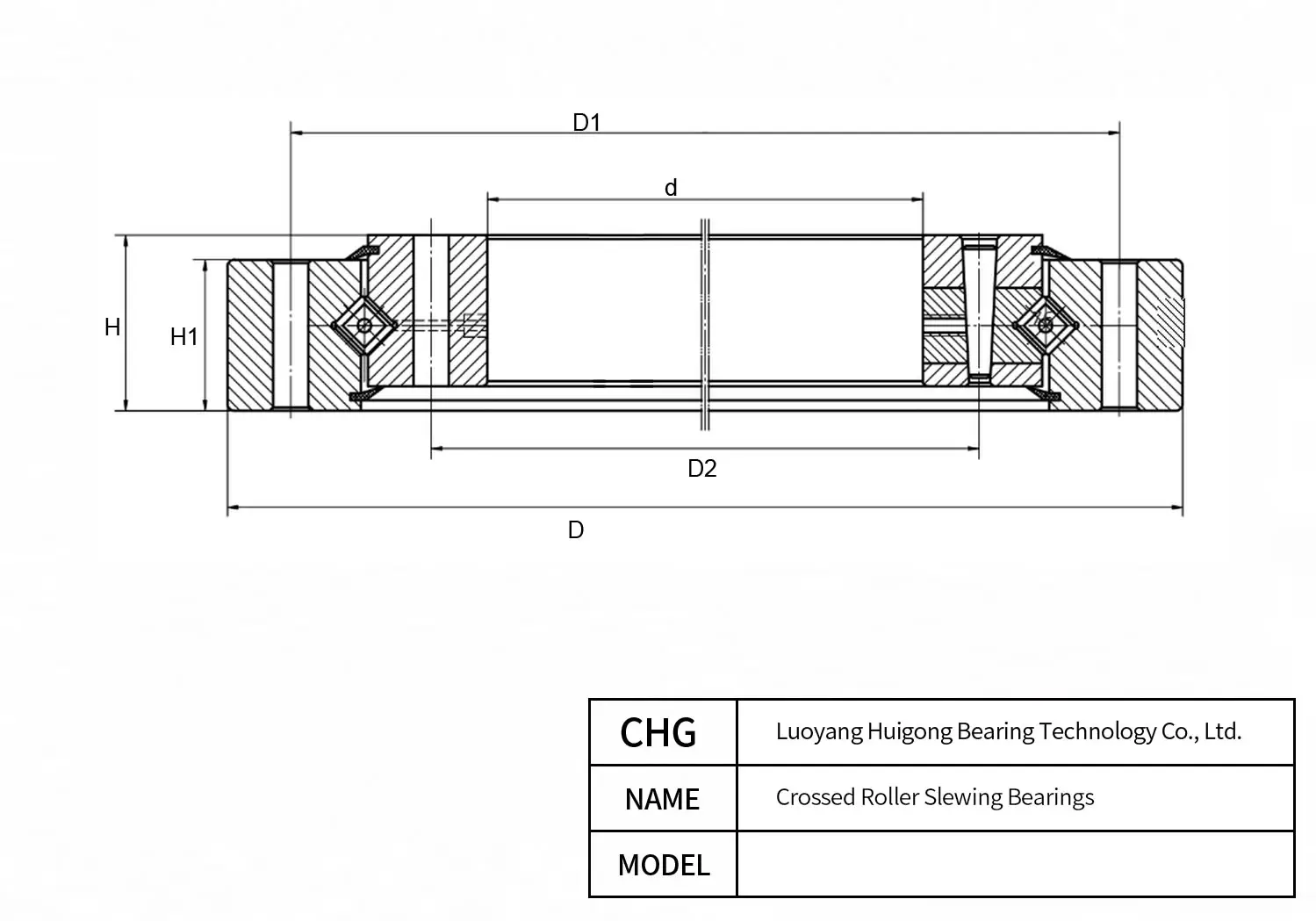

Manufactured by CHG Bearing, the 1797/2500G2 is a precision Crossed Roller Slewing Bearings. Key dimensional parameters include a 2500 mm bore diameter, a mm outer diameter, and a 210 mm overall width. This component is designed to meet standard load requirements and ensure consistent operational performance. For comprehensive technical evaluation, please explore the detailed specifications, dimensional data, product images, and CAD drawings provided below. A complete PDF data sheet is also readily available for direct download to support your engineering and procurement needs.
1797/2500G2 - Crossed Roller Slewing Bearings
Technical Specifications
| Overview | |
|---|---|
| Part Number | 1797/2500G2 |
| Brand | CHG® |
| Gear Type | Gearless |
| Characteristics | |
| Bearing Type | Single-row Crossed Roller Slewing Bearing |
| Row Configuration | Single-row |
| Dimensions | |
| Bore Diameter (d) | 2500 mm |
| Width (B) | 210 mm |
| Inner/Outer Ring Height H1 | 200 mm |
| End-face Height Difference h | 10 mm |
| Number of Lubrication Holes n1 | 12 |
| Mounting Dimensions | |
| Outer Ring Mounting Hole P.C.D. D1 | 2990 mm |
| Inner Ring Mounting Hole P.C.D. D2 | 2630 mm |
| Lubrication Port Thread / Size Φ1 | 14 |
| Inner Ring Mounting Hole Count n2 | 36 |
| Inner Ring Mounting Hole Specification Φ2 (Ø / Thread) | 37 |
| Outer Ring Mounting Hole Count n3 | 36 |
| Outer Ring Mounting Hole Specification Φ3 (Ø / Thread) | 37 |
| Gear Data | |
| Gear Module m | 25 mm |
| Gear Tip Diameter De | 3250 mm |
| Number of Gear Teeth z | 128 |
| Gear Face Width b | 200 mm |
| Addendum Modification Coefficient x | 0 |
| Reference Data | |
| Reference Mass (kg) | 4597 kg |
1797/2500G2 mm 2500 mm 210 mm 2990 mm 2630 mm Frequently Asked Questions about 1797/2500G2 Crossed Roller Slewing Bearings
Find key technical answers regarding dimensions, specifications, and replacement options for this model.
Yes, 100% of 1797/2500G2 Crossed Roller Slewing Bearings leaving CHG Bearing production lines are subjected to multi-frequency Anderometer sound testing. All units satisfy baseline Z1V1 levels, with dedicated quiet-running electric motor quality (EMQ) lots certified to Z2V2 and Z3V3 standards for silent machinery integration.
Beyond standard alloy steel, CHG Bearing can customize the 1797/2500G2 Crossed Roller Slewing Bearings using AISI 440C stainless steel, black oxide coating, zinc-nickel plating, or hybrid ceramic (Si3N4) balls for applications involving chemical exposure, marine salt fog, or galvanic current hazards.
When fitting 1797/2500G2 over a 2500 mm shaft, CHG Bearing strictly recommends uniform induction heating (controlled between 90°C and 110°C) or precision hydraulic press sleeves. Under no circumstances should direct impact blows be struck against the rings or cage, as shock loads cause brinelling indents and premature spalling.
As standard production, CHG Bearing subjects 1797/2500G2 to precision bainite or martensite quenching, offering dimensional stability up to 120°C (248°F). For high-heat processing equipment, CHG Bearing also supplies custom S0 (150°C), S1 (200°C), or S2 (250°C) stabilization heat treatments upon request to prevent residual austenite transformation.
