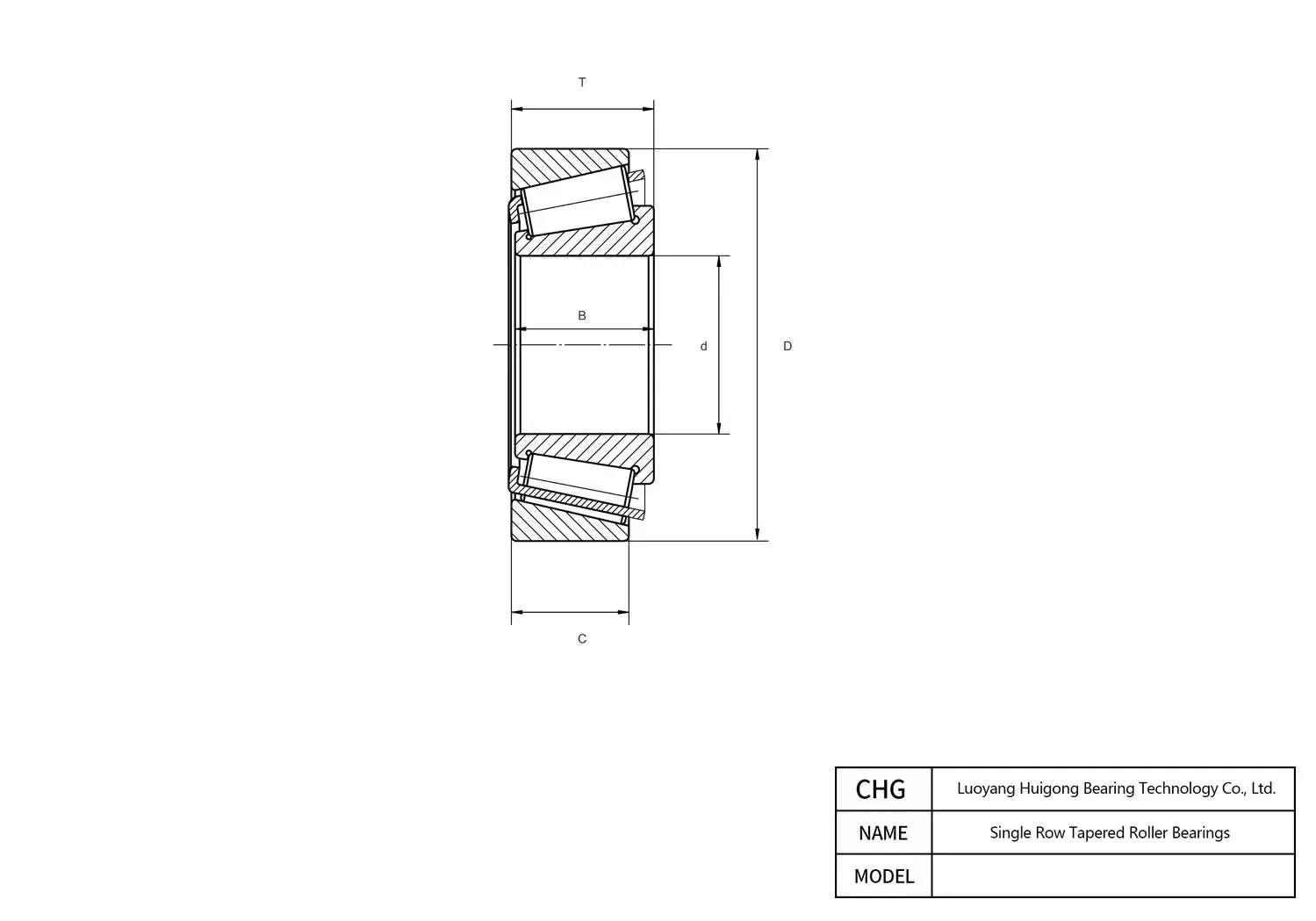

Manufactured by CHG Bearing, the 30256X is a precision Single Row Tapered Roller Bearings. Key dimensional parameters include a 280 mm bore diameter, a 420 mm outer diameter, and a 87 mm overall width. This component is designed to meet standard load requirements and ensure consistent operational performance. For comprehensive technical evaluation, please explore the detailed specifications, dimensional data, product images, and CAD drawings provided below. A complete PDF data sheet is also readily available for direct download to support your engineering and procurement needs.
30256X - Single Row Tapered Roller Bearings
Technical Specifications
| Overview | |
|---|---|
| Part Number | 30256X |
| Brand | CHG® |
| Characteristics | |
| Bearing Type | Single Row Tapered Roller Bearing |
| Number of Rows | Single Row |
| Tolerance Class | P5 |
| Dimensions | |
| Bore Diameter (d) | 280 mm |
| Width (B) | 87 mm |
| Outer Diameter (D) | 420 mm |
| Outer Ring Width C | 65 mm |
| Bore Diameter Tolerance | -0.025 – 0 mm |
| Outside Diameter Tolerance | -0.033 – 0 mm |
| Inner Ring Chamfer | 5 min mm |
| Outer Ring Chamfer | 4 min mm |
| Shaft Abutment Diameter | N/A mm |
| Housing Abutment Diameter | N/A mm |
| Overall Bearing Width Tolerance | -0.25 – +0.35 mm |
| Inner Ring Width B | 87 mm |
| Inner Ring Width Tolerance | -0.70 – 0 mm |
| Outer Ring Width Tolerance | -0.70 – 0 mm |
| Performance | |
| Basic Dynamic Load Rating C (kN) | 1170 kN |
| Basic Static Load Rating C0 (kN) | 2230 kN |
| Material | |
| Mass (kg) | 40.4 kg |
| Ring Material | Case-Hardened Steel / Bearing Steel |
| Rolling Element Material | Case-Hardened Steel / Bearing Steel |
| Cage Material | 08Al Steel |
30256X 420 mm 280 mm 87 mm Frequently Asked Questions about 30256X Single Row Tapered Roller Bearings
Find key technical answers regarding dimensions, specifications, and replacement options for this model.
Quality starts with raw material selection: CHG Bearing crafts 30256X inner and outer rings from high-purity High-Quality Chrome Steel (GCr15/100Cr6). Our raw billets undergo vacuum degassing and secondary ESR (electroslag remelting) processes to drastically eliminate non-metallic sulfide and oxide inclusions, elevating subsurface contact fatigue resistance.
Built for demanding industrial environments, the 30256X Single Row Tapered Roller Bearings by CHG Bearing boasts a dynamic load rating (Cr) of standard dynamic and a static load threshold (C0r) of standard static. The optimized internal raceway geometry balances stress distribution, mitigating edge loading even when operating under peak mechanical stresses.
Each 30256X produced in CHG Bearing manufacturing facilities features accurately profiled corner chamfers complying with DIN 5412 / ISO standard corner radii. When designing mating shafts and housing shoulders, machining an undercut or fillet radius strictly within the inner ring clearance limit (280 mm bore side) ensures perfect planar contact without edge binding.
To match diverse operational dynamics, CHG Bearing supplies 30256X with multiple cage configurations: high-strength pressed steel ribbon cages for standard duty, solid machined brass cages (M/CA) for heavy vibration and shock loads, or lightweight glass-fiber reinforced polyamide cages (TN9/TVP) for high acceleration and ultra-low noise.
