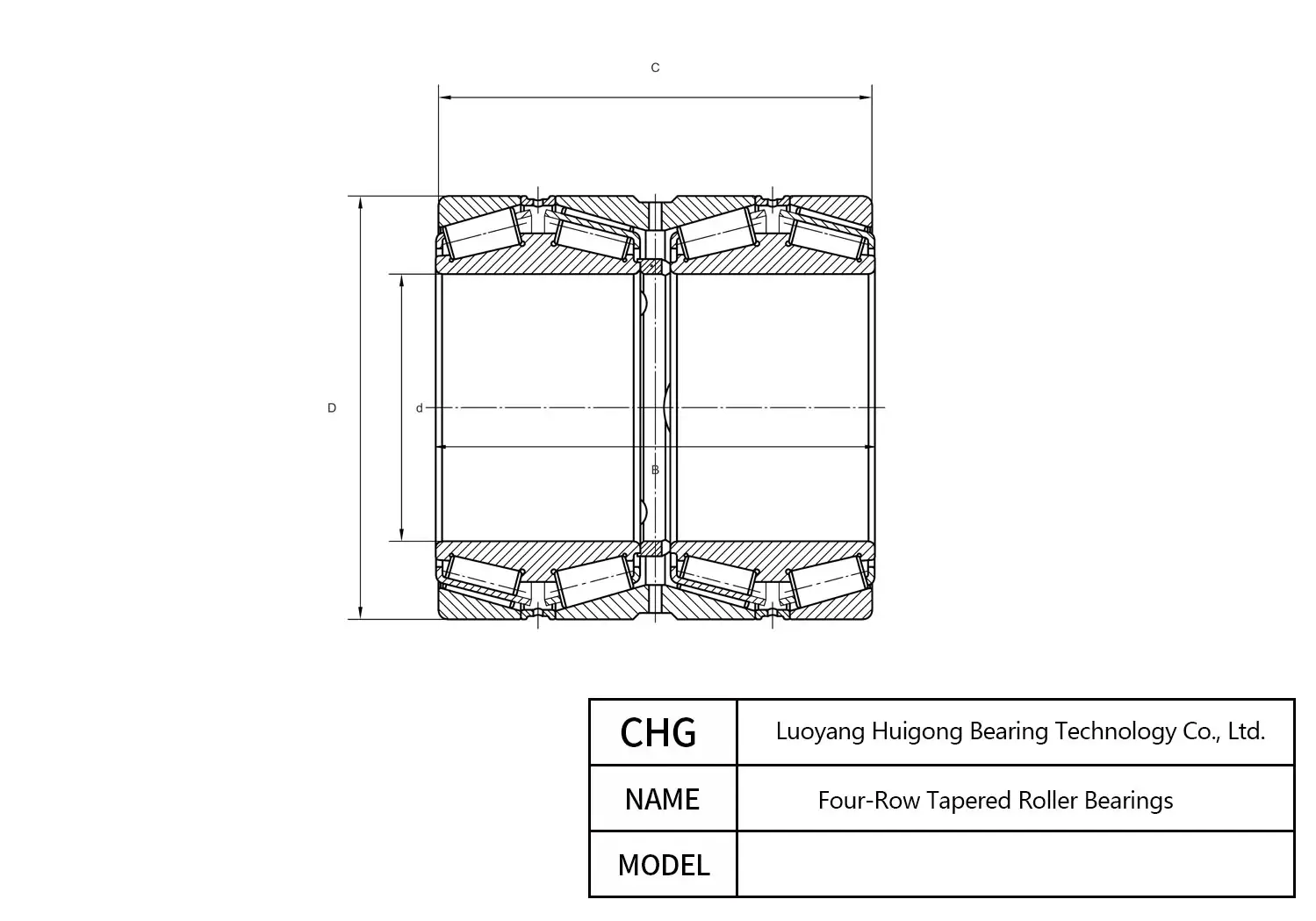

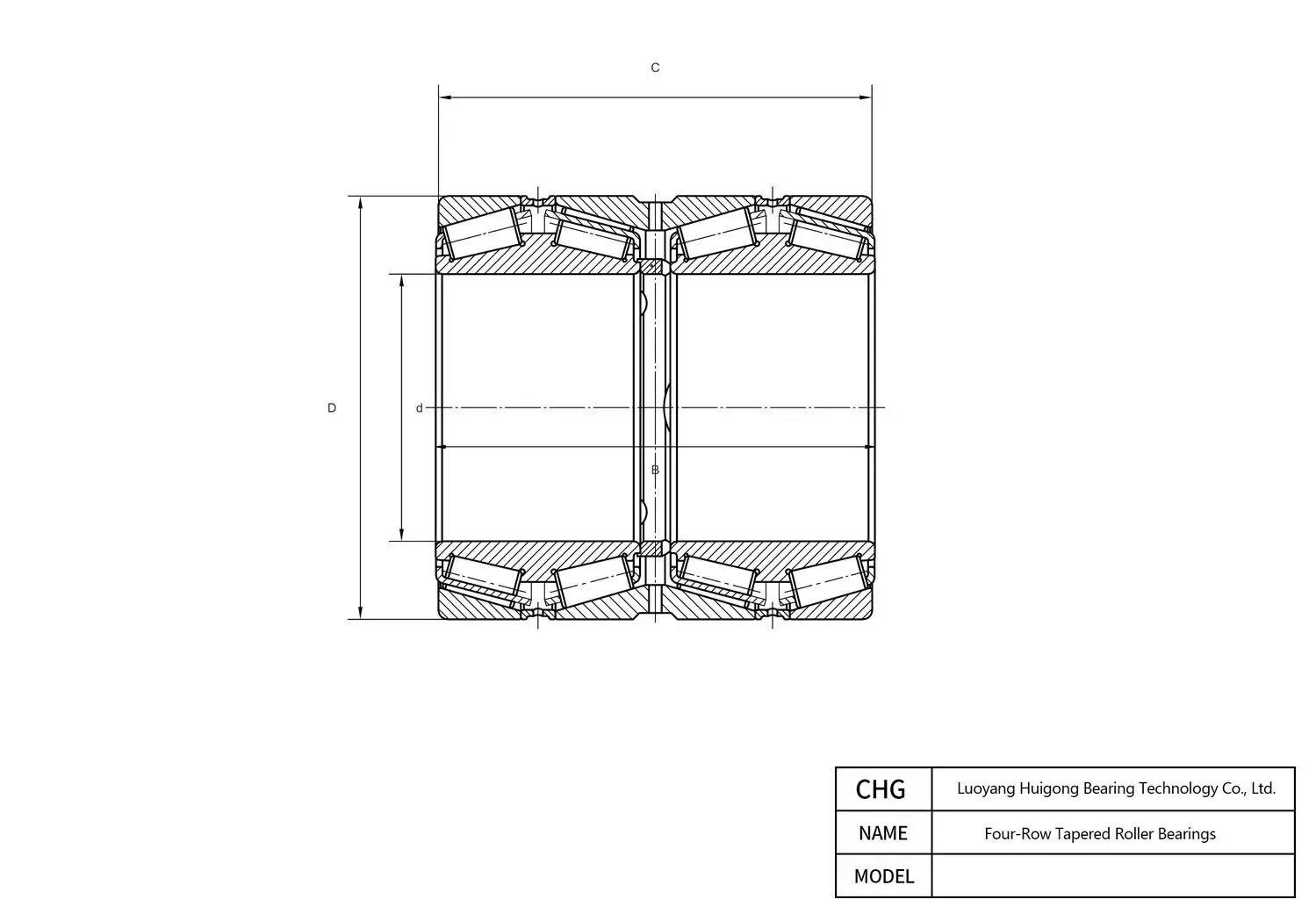

Manufactured by CHG Bearing, the 381084 is a precision Four-Row Tapered Roller Bearings. Key dimensional parameters include a 420 mm bore diameter, a 620 mm outer diameter, and a 356 mm overall width. This component is designed to meet standard load requirements and ensure consistent operational performance. For comprehensive technical evaluation, please explore the detailed specifications, dimensional data, product images, and CAD drawings provided below. A complete PDF data sheet is also readily available for direct download to support your engineering and procurement needs.

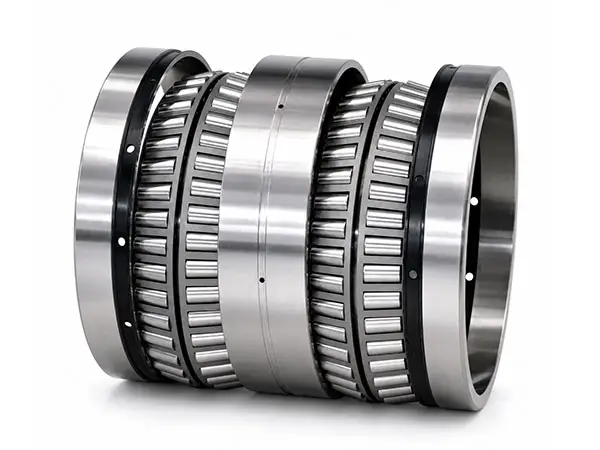

381084 - Four-Row Tapered Roller Bearings
Technical Specifications
| Overview | |
|---|---|
| Part Number | 381084 |
| Brand | CHG® |
| Characteristics | |
| Bearing Type | Four Row Tapered Roller Bearing |
| Number of Rows | Four Row |
| Tolerance Class | P0 |
| Dimensions | |
| Bore Diameter (d) | 420 mm |
| Width (B) | 356 mm |
| Outer Diameter (D) | 620 mm |
| Bore Diameter Tolerance | -0.045 – 0 mm |
| Outside Diameter Tolerance | -0.050 – 0 mm |
| Inner Ring Chamfer | 5 min mm |
| Outer Ring Chamfer | 4 min mm |
| Inner Ring Assembly Width Tolerance | -0.9 – +0.9 mm |
| Outer Ring Assembly Width | 356 mm |
| Outer Ring Assembly Width Tolerance | -0.9 – +0.9 mm |
| Shaft Abutment Diameter | 450 mm |
| Housing Abutment Diameter | 570 mm |
| Lubrication Hole Diameter | 9 mm |
| Performance | |
| Basic Dynamic Load Rating C (kN) | 3948 kN |
| Basic Static Load Rating C0 (kN) | 7616 kN |
| Material | |
| Mass (kg) | 358 kg |
| Ring Material | Case-Hardened Steel / Bearing Steel |
| Rolling Element Material | Case-Hardened Steel / Bearing Steel |
| Cage Material | Grade 45 Steel / 08Al Steel / Grade 10 Steel |
| Lubrication Groove Width | 20 mm |
381084 620 mm 420 mm 356 mm Frequently Asked Questions about 381084 Four-Row Tapered Roller Bearings
Find key technical answers regarding dimensions, specifications, and replacement options for this model.
Every production batch of CHG Bearing 381084 Four-Row Tapered Roller Bearings comes with complete traceability. Upon shipment, CHG Bearing can provide EN 10204 3.1 Material Test Reports (MTR), Certificates of Conformity (CoC), spectral chemical composition analysis, and dimensional inspection sheets.
Following standard ISO 281 fatigue calculation guidelines, the nominal rating life (L10) of CHG Bearing 381084 correlates its dynamic capacity (standard dynamic) with equivalent dynamic loads. In controlled industrial settings with proper contamination-free filtration, field data confirms continuous operational longevity exceeding 20,000 to 50,000 service hours.
Built for demanding industrial environments, the 381084 Four-Row Tapered Roller Bearings by CHG Bearing boasts a dynamic load rating (Cr) of standard dynamic and a static load threshold (C0r) of standard static. The optimized internal raceway geometry balances stress distribution, mitigating edge loading even when operating under peak mechanical stresses.
In its sealed configuration (Open Type), CHG Bearing pre-charges 381084 with premium wide-temperature lithium-complex or polyurea grease, calibrated to a 30%–35% cavity volume ratio. For open-type variants, synthetic PAO or refined mineral lubricating oils with appropriate EP (Extreme Pressure) additives should be circulated.
