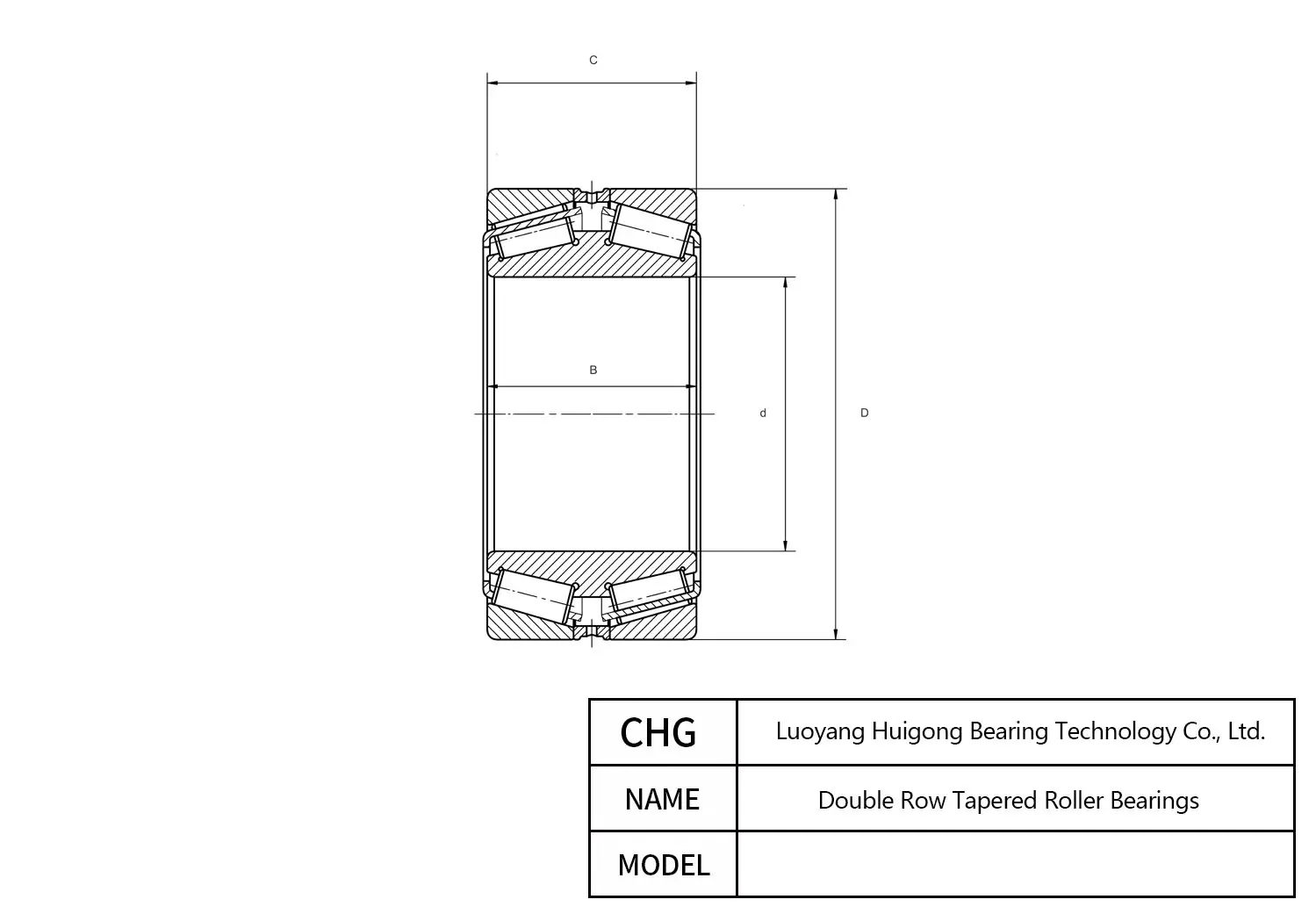

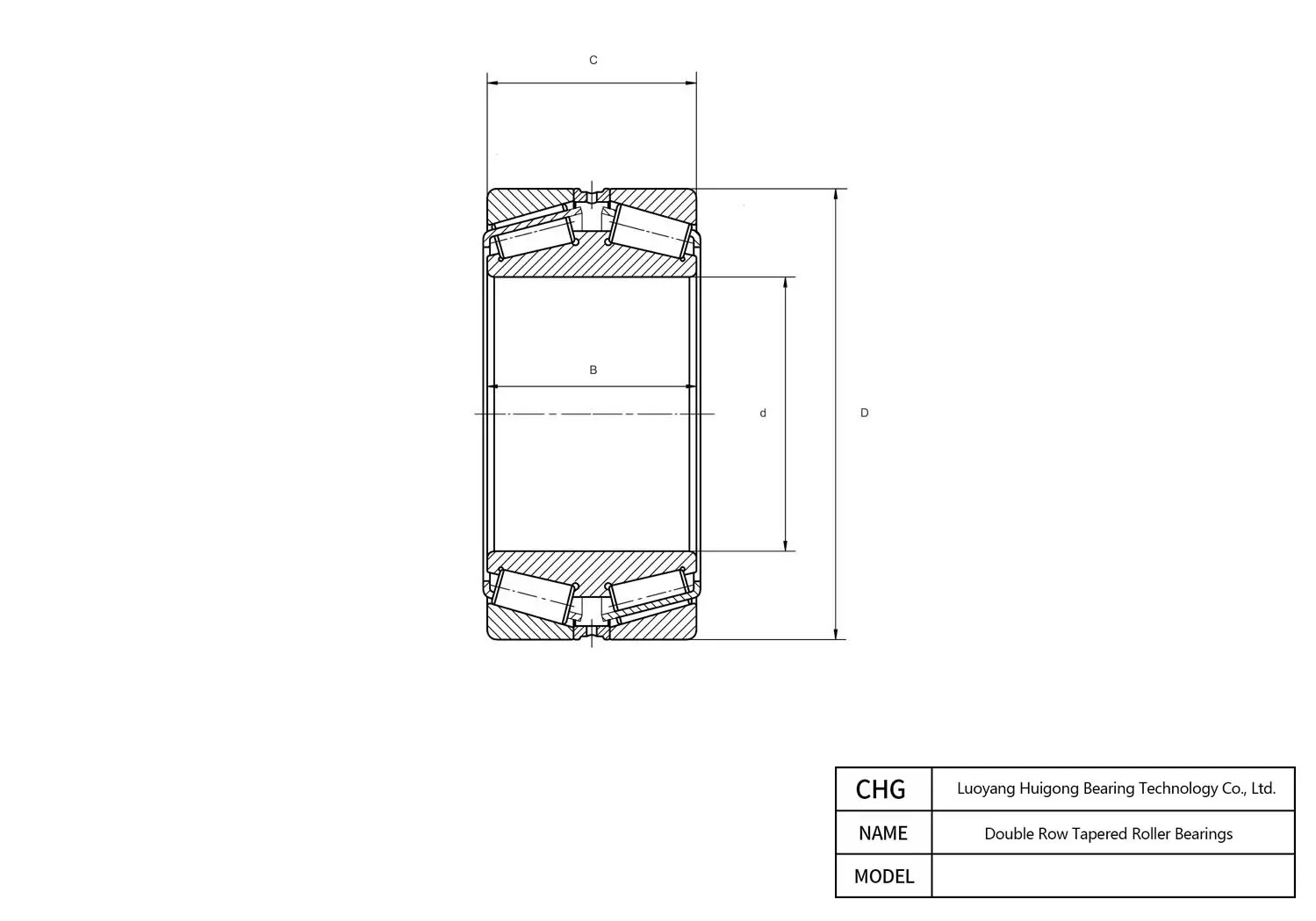

Manufactured by CHG Bearing, the 93800A/93128XD is a precision Double Row Tapered Roller Bearings. Key dimensional parameters include a 203.2 mm bore diameter, a 319.977 mm outer diameter, and a 146.05 mm overall width. This component is designed to meet standard load requirements and ensure consistent operational performance. For comprehensive technical evaluation, please explore the detailed specifications, dimensional data, product images, and CAD drawings provided below. A complete PDF data sheet is also readily available for direct download to support your engineering and procurement needs.
93800A/93128XD - Double Row Tapered Roller Bearings
Technical Specifications
| Overview | |
|---|---|
| Part Number | 93800A/93128XD |
| Brand | CHG® |
| Bearing | Double Row Tapered Roller Bearing |
| Characteristics | |
| Series | 370000 |
| Number of Rows | Double Row |
| Tolerance Class | Class 4 |
| Dimensions | |
| Bore Diameter (d) | 203.2 mm |
| Width (B) | 146.05 mm |
| Outer Diameter (D) | 319.977 mm |
| Bore Diameter Tolerance | 0 – +0.025 mm |
| Outside Diameter Tolerance | 0 – +0.025 mm |
| Inner Ring Chamfer | 3.2 mm |
| Outer Ring Chamfer | 0.8 mm |
| Inner Ring Assembly Width Tolerance | 0 – +0.406 mm |
| Outer Ring Assembly Width | 76.2 mm |
| Outer Ring Assembly Width Tolerance | 0 – +0.406 mm |
| Shaft Abutment Diameter | 179 mm |
| Housing Abutment Diameter | 214 mm |
| Lubrication Hole Diameter | 5 mm |
| Performance | |
| Basic Dynamic Load Rating C (kN) | 442 kN |
| Basic Static Load Rating C0 (kN) | 1140 kN |
| Material | |
| Mass (kg) | 9.35 kg |
| Ring Material | Bearing Steel |
| Cage Material | 08Al Steel / Grade 10 Steel |
| Lubrication Groove Width | 10 mm |
| Roller Material | Bearing Steel |
93800A/93128XD 319.977 mm 203.2 mm 146.05 mm Frequently Asked Questions about 93800A/93128XD Double Row Tapered Roller Bearings
Find key technical answers regarding dimensions, specifications, and replacement options for this model.
The Open Type engineered for 93800A/93128XD by CHG Bearing utilizes precision non-contact metal shields or reinforced NBR/FKM contact lip seals. This barrier prevents particulate ingress, washdown fluids, and abrasive dust from reaching the raceways while eliminating grease leakage under centrifugal forces.
The CHG Bearing 93800A/93128XD is rated for limiting speeds up to standard rated RPM under forced oil-mist or circulating oil lubrication regimes. When lubricated with factory-filled synthetic high-speed grease, safe continuous velocity is maintained at approximately 75% to 85% of the maximum nominal limit, preventing thermal runaway.
Beyond standard alloy steel, CHG Bearing can customize the 93800A/93128XD Double Row Tapered Roller Bearings using AISI 440C stainless steel, black oxide coating, zinc-nickel plating, or hybrid ceramic (Si3N4) balls for applications involving chemical exposure, marine salt fog, or galvanic current hazards.
Following standard ISO 281 fatigue calculation guidelines, the nominal rating life (L10) of CHG Bearing 93800A/93128XD correlates its dynamic capacity (standard dynamic) with equivalent dynamic loads. In controlled industrial settings with proper contamination-free filtration, field data confirms continuous operational longevity exceeding 20,000 to 50,000 service hours.
