Manufactured by CHG Bearing, the 360KBE30+L is a precision Double Row Tapered Roller Bearings. Key dimensional parameters include a 360 mm bore diameter, a 540 mm outer diameter, and a 134 mm overall width. This component is designed to meet standard load requirements and ensure consistent operational performance. For comprehensive technical evaluation, please explore the detailed specifications, dimensional data, product images, and CAD drawings provided below. A complete PDF data sheet is also readily available for direct download to support your engineering and procurement needs.

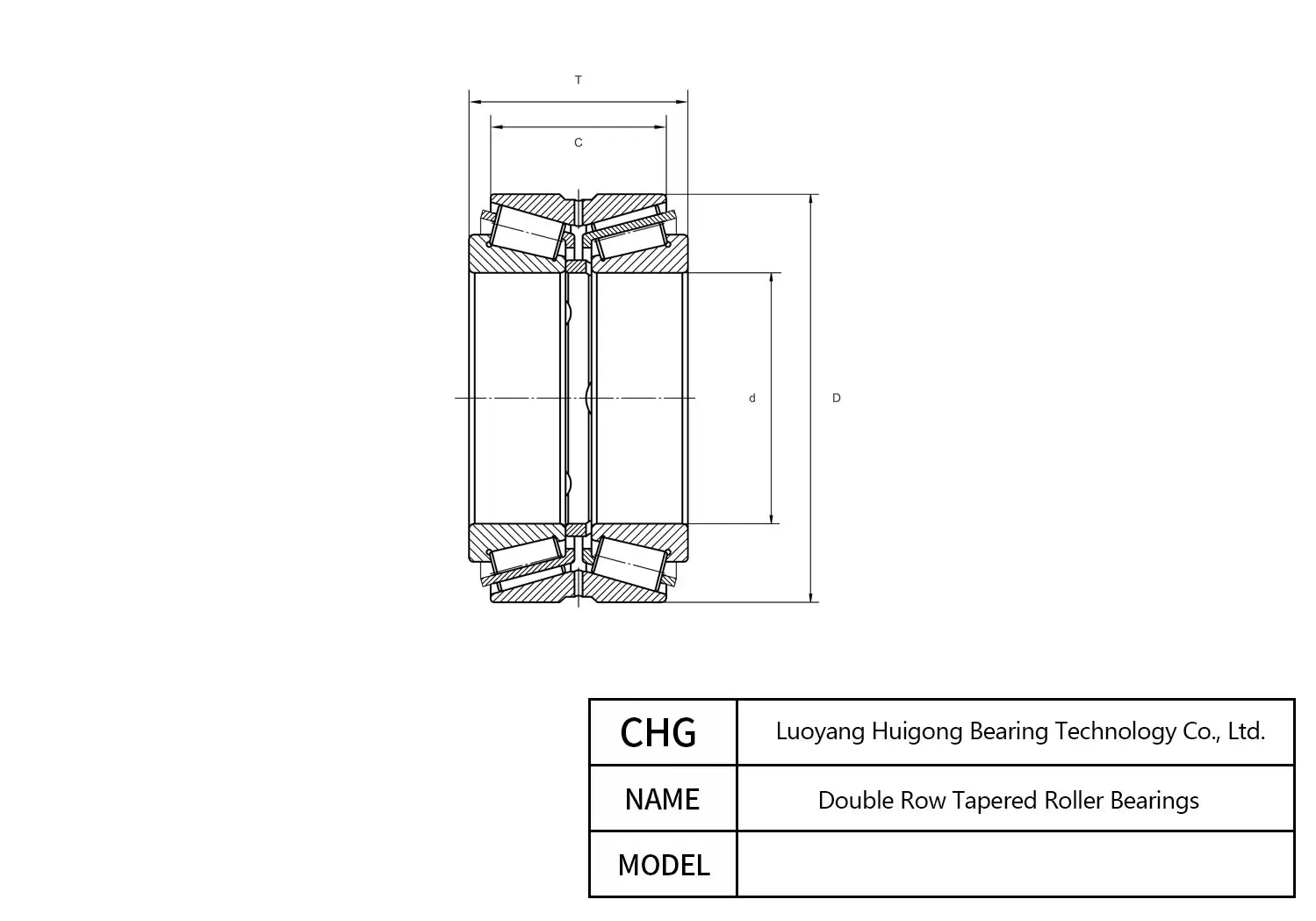

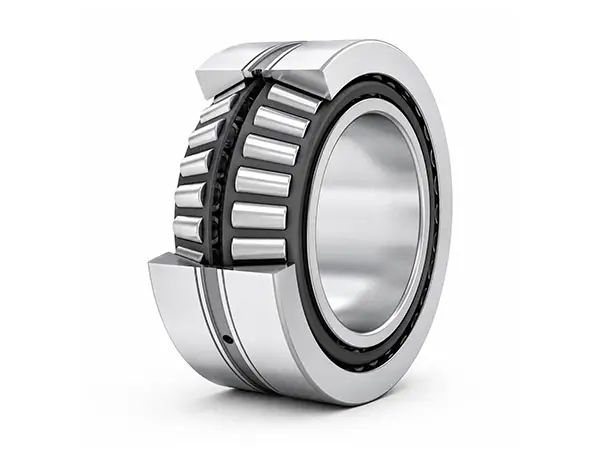

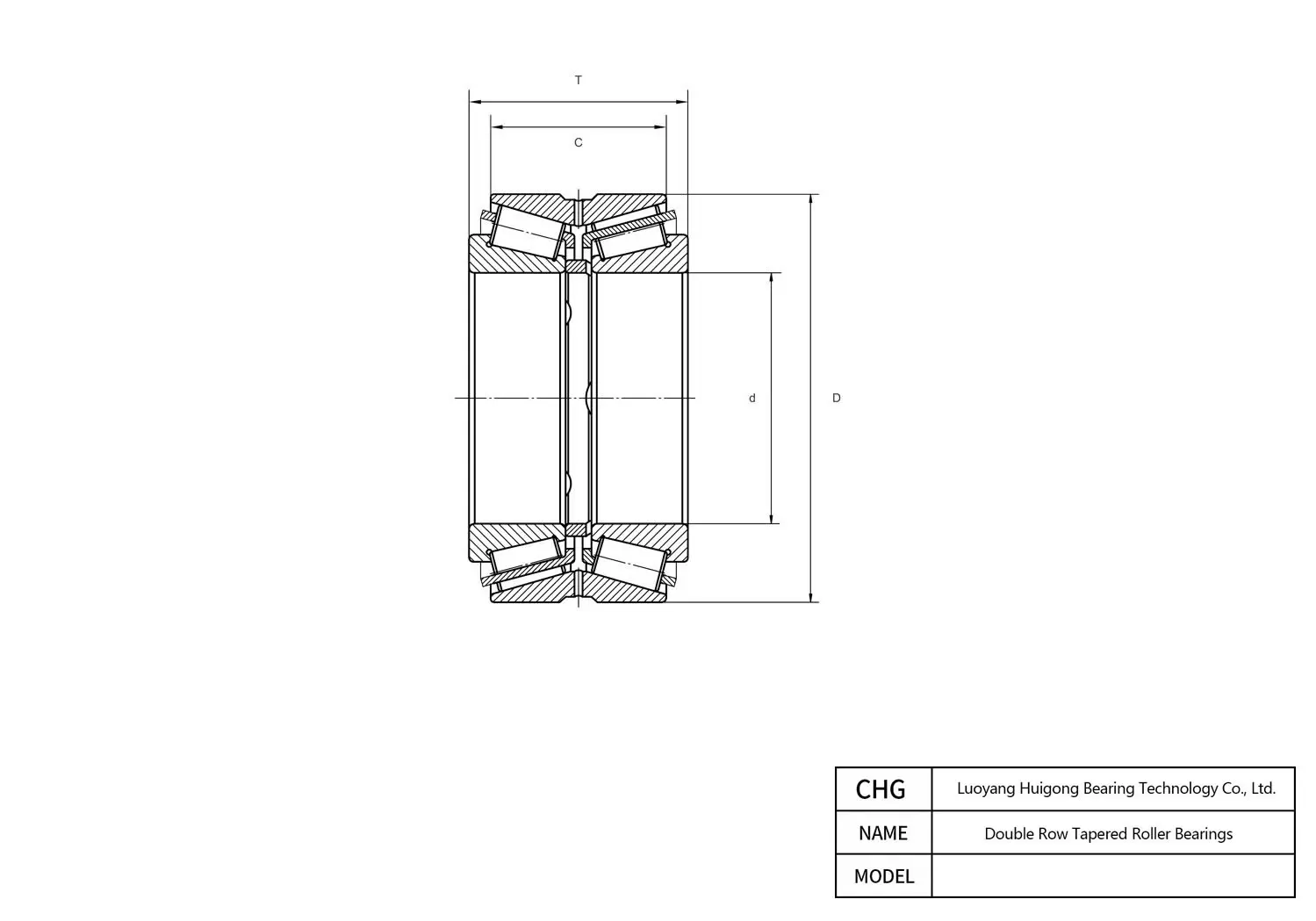

360KBE30+L - Double Row Tapered Roller Bearings
Technical Specifications
| Overview | |
|---|---|
| Part Number | 360KBE30+L |
| Brand | CHG® |
| Bearing | Double Row Tapered Roller Bearing |
| Characteristics | |
| Series | 350000 |
| Number of Rows | Double Row |
| Tolerance Class | P5 |
| Dimensions | |
| Bore Diameter (d) | 360 mm |
| Width (B) | 134 mm |
| Outer Diameter (D) | 540 mm |
| Bore Diameter Tolerance | -0.035 – 0 mm |
| Outside Diameter Tolerance | -0.045 – 0 mm |
| Inner Ring Chamfer | 6 mm |
| Outer Ring Chamfer | 2.5 mm |
| Inner Ring Assembly Width Tolerance | -0.80 – 0 mm |
| Outer Ring Assembly Width | 152 mm |
| Outer Ring Assembly Width Tolerance | -0.80 – 0 mm |
| Shaft Abutment Diameter | 468 mm |
| Housing Abutment Diameter | 615 mm |
| Lubrication Hole Diameter | 9 mm |
| Performance | |
| Basic Dynamic Load Rating C (kN) | 3150 kN |
| Basic Static Load Rating C0 (kN) | 6900 kN |
| Material | |
| Mass (kg) | 211 kg |
| Ring Material | Case-Hardened Steel / Bearing Steel |
| Cage Material | 08Al Steel / Grade 10 Steel |
| Lubrication Groove Width | 20 mm |
| Roller Material | Case-Hardened Steel / Bearing Steel |
360KBE30+L 540 mm 360 mm Frequently Asked Questions about 360KBE30+L Double Row Tapered Roller Bearings
Find key technical answers regarding dimensions, specifications, and replacement options for this model.
Beyond standard alloy steel, CHG Bearing can customize the 360KBE30+L Double Row Tapered Roller Bearings using AISI 440C stainless steel, black oxide coating, zinc-nickel plating, or hybrid ceramic (Si3N4) balls for applications involving chemical exposure, marine salt fog, or galvanic current hazards.
Sourcing 360KBE30+L directly from CHG Bearing eliminates intermediate brokerage markups while granting you factory-direct engineering backup, rigorous ISO-certified quality assurance, competitive volume wholesale pricing, and dependable supply chain stability for Double Row Tapered Roller Bearings.
Each 360KBE30+L produced in CHG Bearing manufacturing facilities features accurately profiled corner chamfers complying with DIN 5412 / ISO standard corner radii. When designing mating shafts and housing shoulders, machining an undercut or fillet radius strictly within the inner ring clearance limit (360 mm bore side) ensures perfect planar contact without edge binding.
In its sealed configuration (Open Type), CHG Bearing pre-charges 360KBE30+L with premium wide-temperature lithium-complex or polyurea grease, calibrated to a 30%–35% cavity volume ratio. For open-type variants, synthetic PAO or refined mineral lubricating oils with appropriate EP (Extreme Pressure) additives should be circulated.
