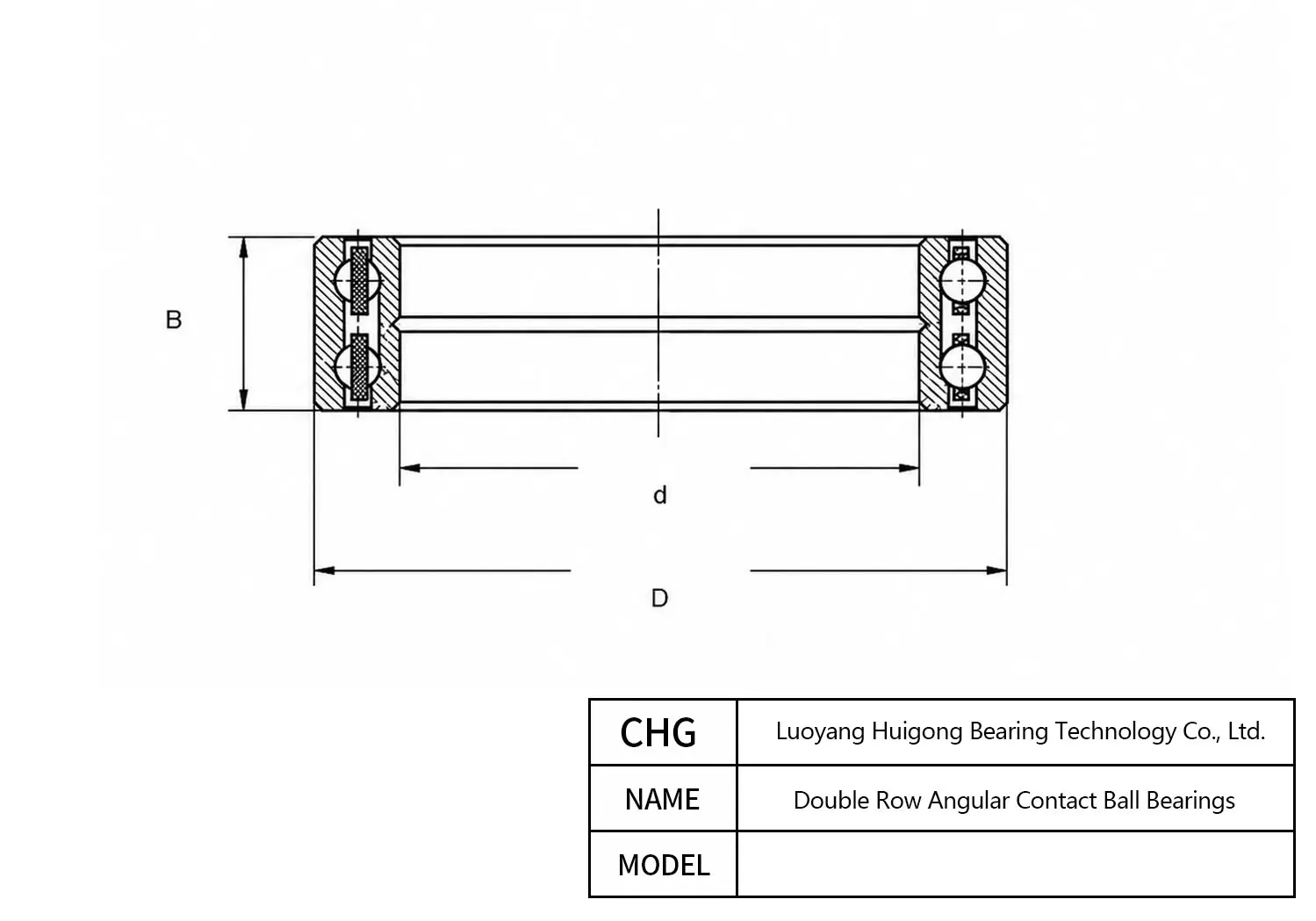

Manufactured by CHG Bearing, the 7088BM/DF is a precision Double Row Angular Contact Ball Bearings. Key dimensional parameters include a 440 mm bore diameter, a 650 mm outer diameter, and a 188 mm overall width. This component is designed to meet standard load requirements and ensure consistent operational performance. For comprehensive technical evaluation, please explore the detailed specifications, dimensional data, product images, and CAD drawings provided below. A complete PDF data sheet is also readily available for direct download to support your engineering and procurement needs.

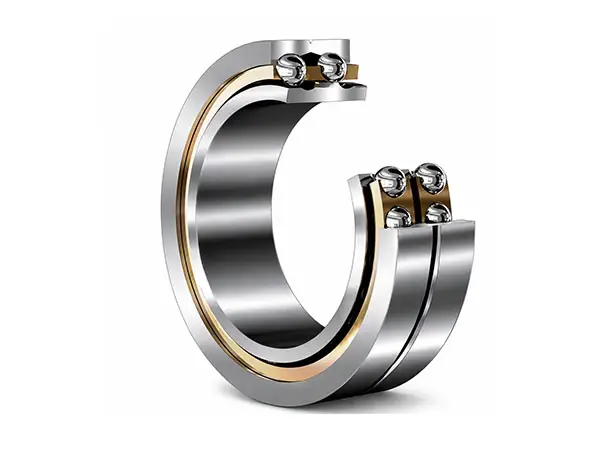

7088BM/DF - Double Row Angular Contact Ball Bearings
Technical Specifications
| Overview | |
|---|---|
| Part Number | 7088BM/DF |
| Brand | CHG® |
| Characteristics | |
| Bearing Type | Double Row Angular Contact Ball Bearing |
| Number of Rows | Double Row |
| Load Direction | Combined |

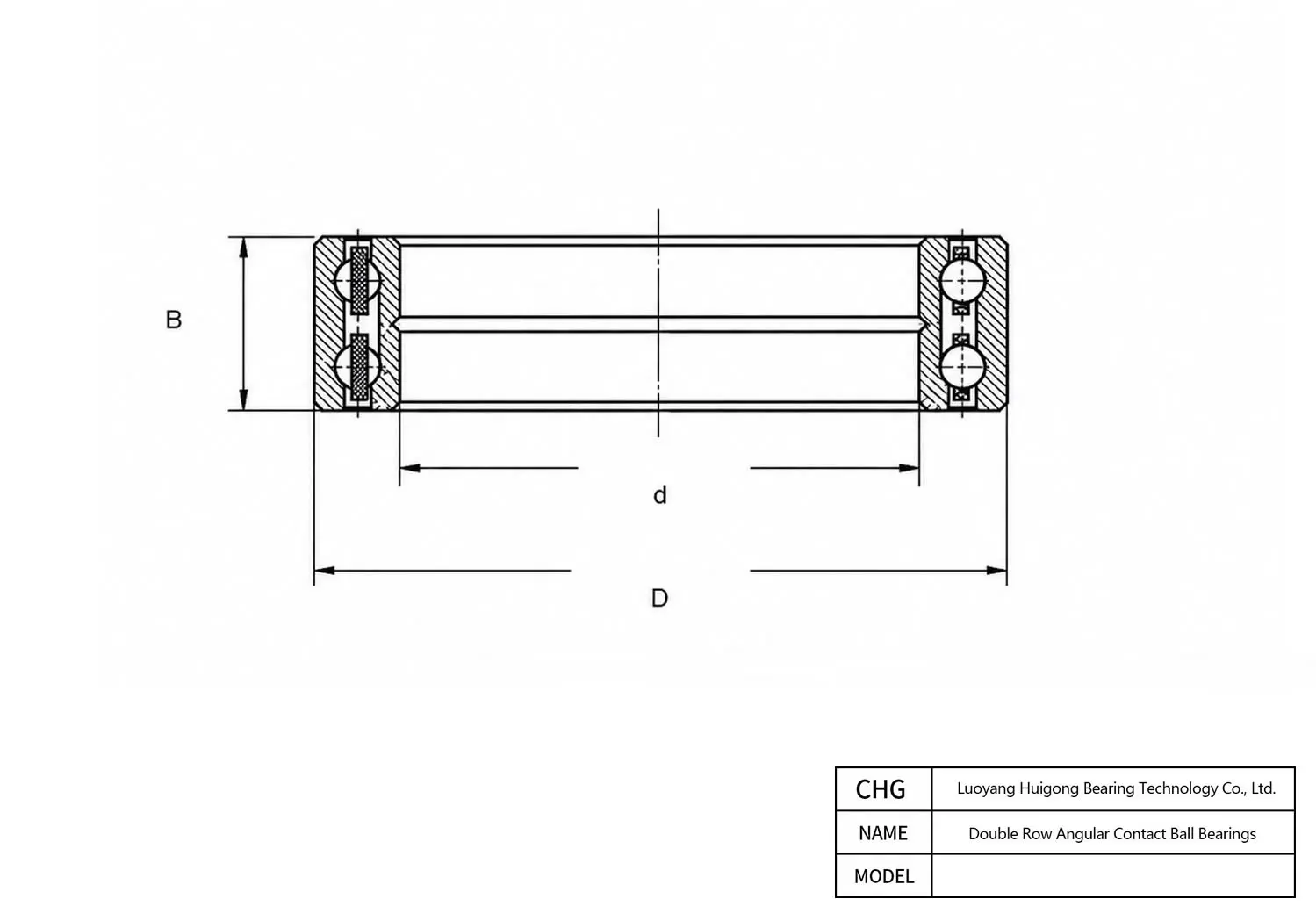

| Dimensions | |
| Bore Diameter (d) | 440 mm |
| Width (B) | 188 mm |
| Outer Diameter (D) | 650 mm |
| Minimum Chamfer Dimension rmin | 6 mm |
| Performance | |
| Basic Dynamic Load Rating C (kN) | 1090 kN |
| Basic Static Load Rating C0 (kN) | 2200 kN |
| Material | |
| Mass (kg) | 206 kg |
| Cage Material | Brass |
7088BM/DF 650 mm 440 mm 188 mm Frequently Asked Questions about 7088BM/DF Double Row Angular Contact Ball Bearings
Find key technical answers regarding dimensions, specifications, and replacement options for this model.
As standard production, CHG Bearing subjects 7088BM/DF to precision bainite or martensite quenching, offering dimensional stability up to 120°C (248°F). For high-heat processing equipment, CHG Bearing also supplies custom S0 (150°C), S1 (200°C), or S2 (250°C) stabilization heat treatments upon request to prevent residual austenite transformation.
Model 7088BM/DF is manufactured by CHG Bearing in standard Normal clearance (CN) for ambient temperature transmission, and C3 or C4 clearance for heavy duty applications. C3 clearance compensates for radial shrinkage caused by tight shaft press-fits (bore 440 mm) and steep thermal gradients between inner and outer rings.
Built for demanding industrial environments, the 7088BM/DF Double Row Angular Contact Ball Bearings by CHG Bearing boasts a dynamic load rating (Cr) of standard dynamic and a static load threshold (C0r) of standard static. The optimized internal raceway geometry balances stress distribution, mitigating edge loading even when operating under peak mechanical stresses.
To match diverse operational dynamics, CHG Bearing supplies 7088BM/DF with multiple cage configurations: high-strength pressed steel ribbon cages for standard duty, solid machined brass cages (M/CA) for heavy vibration and shock loads, or lightweight glass-fiber reinforced polyamide cages (TN9/TVP) for high acceleration and ultra-low noise.
