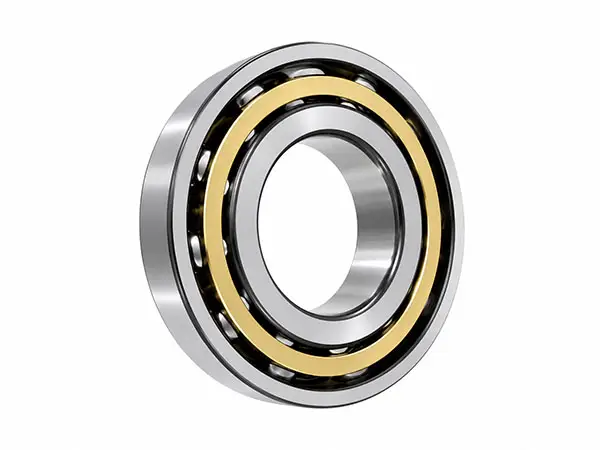

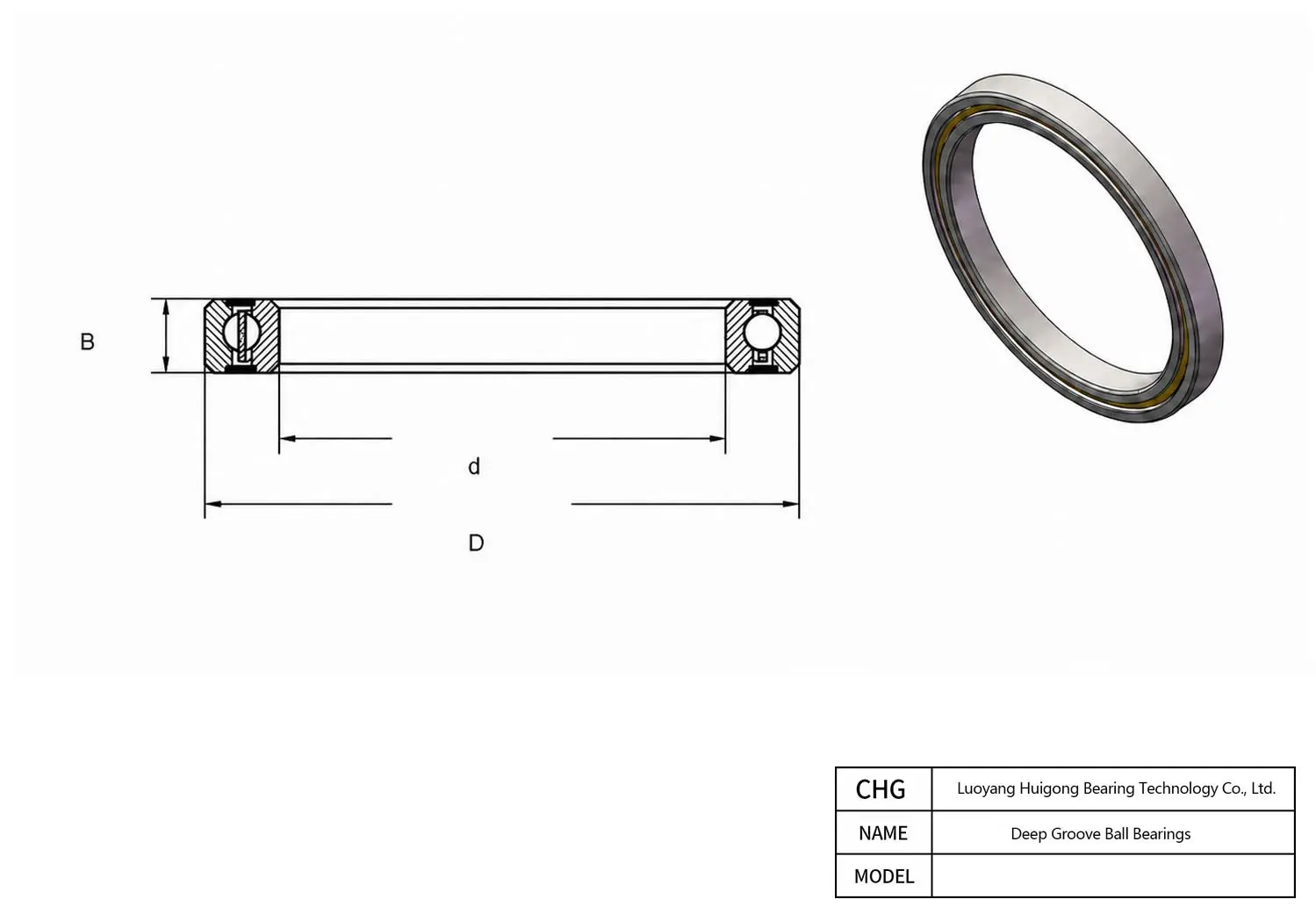

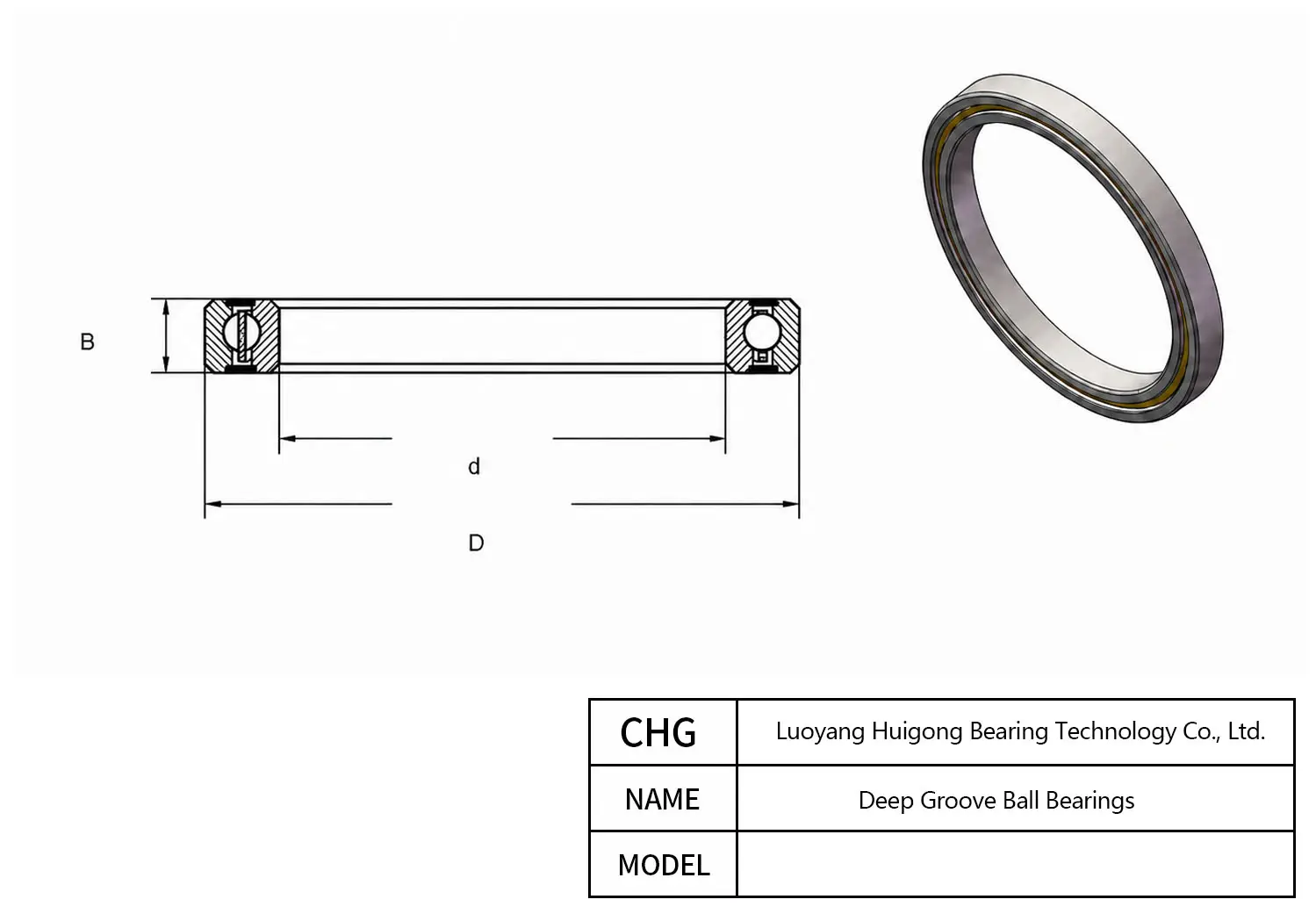

Manufactured by CHG Bearing, the 60/630M is a precision Deep Groove Ball Bearings. Key dimensional parameters include a 630 mm bore diameter, a 920 mm outer diameter, and a 128 mm overall width. This component is designed to meet standard load requirements and ensure consistent operational performance. For comprehensive technical evaluation, please explore the detailed specifications, dimensional data, product images, and CAD drawings provided below. A complete PDF data sheet is also readily available for direct download to support your engineering and procurement needs.
60/630M - Deep Groove Ball Bearings
Technical Specifications
| Overview | |
|---|---|
| Part Number | 60/630M |
| Brand | CHG® |
| Characteristics | |
| Bearing Type | Deep Groove Ball Bearing |
| Seal Type | Open |
| Number of Rows | Single Row |
| Tolerance Class | P5 |
| Load Direction | Radial |
| Dimensions | |
| Bore Diameter (d) | 630 mm |
| Width (B) | 128 mm |
| Outer Diameter (D) | 920 mm |
| Bore Diameter Tolerance | -0.03 – 0 mm |
| Outside Diameter Tolerance | -0.04 – 0 mm |
| Width Tolerance | -0.5 – 0 mm |
| Performance | |
| Basic Dynamic Load Rating C (kN) | 777 kN |
| Basic Static Load Rating C0 (kN) | 1720 kN |
| Material | |
| Mass (kg) | 301 kg |
| Ring Material | Bearing Steel |
| Cage Material | Brass |
| Ball Material | Bearing Steel |
60/630M 920 mm 630 mm 128 mm Frequently Asked Questions about 60/630M Deep Groove Ball Bearings
Find key technical answers regarding dimensions, specifications, and replacement options for this model.
To safeguard CHG Bearing 60/630M against fretting wear and false brinelling during transport or vibration, assemble mating surfaces (630 mm x 920 mm) using anti-fretting mounting paste. Maintaining strict alignment and avoiding prolonged static vibration will preserve raceway polish.
Absolutely. The CHG Bearing 60/630M Deep Groove Ball Bearings is a 1:1 direct interchange for renowned brands, matching part numbers: SKF 60/630M, FAG 60/630M, NSK 60/630M. It shares identical envelope boundary dimensions, load capacities, and shaft fits, allowing instant drop-in replacement without retrofitting your machinery.
Sourcing 60/630M directly from CHG Bearing eliminates intermediate brokerage markups while granting you factory-direct engineering backup, rigorous ISO-certified quality assurance, competitive volume wholesale pricing, and dependable supply chain stability for Deep Groove Ball Bearings.
Yes, 100% of 60/630M Deep Groove Ball Bearings leaving CHG Bearing production lines are subjected to multi-frequency Anderometer sound testing. All units satisfy baseline Z1V1 levels, with dedicated quiet-running electric motor quality (EMQ) lots certified to Z2V2 and Z3V3 standards for silent machinery integration.
