Manufactured by CHG Bearing, the 81176 is a precision Cylindrical Roller Thrust Bearings. Key dimensional parameters include a 380 mm bore diameter, a 460 mm outer diameter, and a mm overall width. This component is designed to meet standard load requirements and ensure consistent operational performance. For comprehensive technical evaluation, please explore the detailed specifications, dimensional data, product images, and CAD drawings provided below. A complete PDF data sheet is also readily available for direct download to support your engineering and procurement needs.

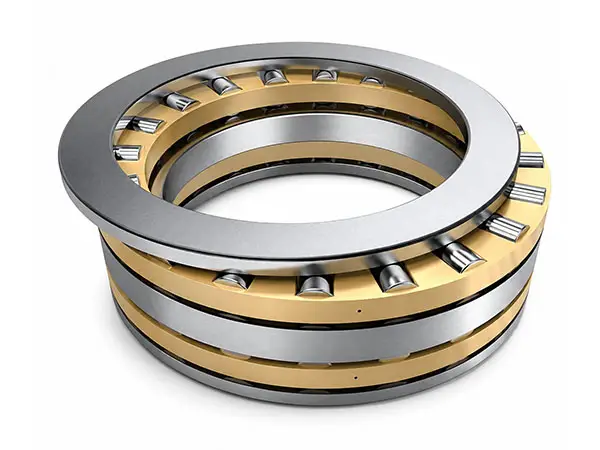

81176 - Cylindrical Roller Thrust Bearings
Technical Specifications
| Overview | |
|---|---|
| Part Number | 81176 |
| Brand | CHG® |
| Characteristics | |
| Bearing Type | Cylindrical Roller Thrust Bearing |
| Design Type | Single Direction |
| Load Direction | Axial |
| Dimensions | |
| Bore Diameter (d) | 380 mm |
| Outer Diameter (D) | 460 mm |
| Minimum Chamfer Dimension rmin | 2 mm |
| Overall Height H | 65 mm |
| Inner-Ring Land Diameter (L1 / d1) | 384 mm |
| Outer-Ring Land Diameter (L2 / D1) | 456 mm |
| Performance | |
| Limiting Speed – Grease (r/min) | 260 r/min |
| Limiting Speed – Oil-air (r/min) | 360 r/min |
| Basic Static Axial Load Rating C0a (N) | 4770 N |
| Basic Dynamic Axial Load Rating Ca (N) | 837 N |
| Material | |
| Mass (kg) | 22 kg |

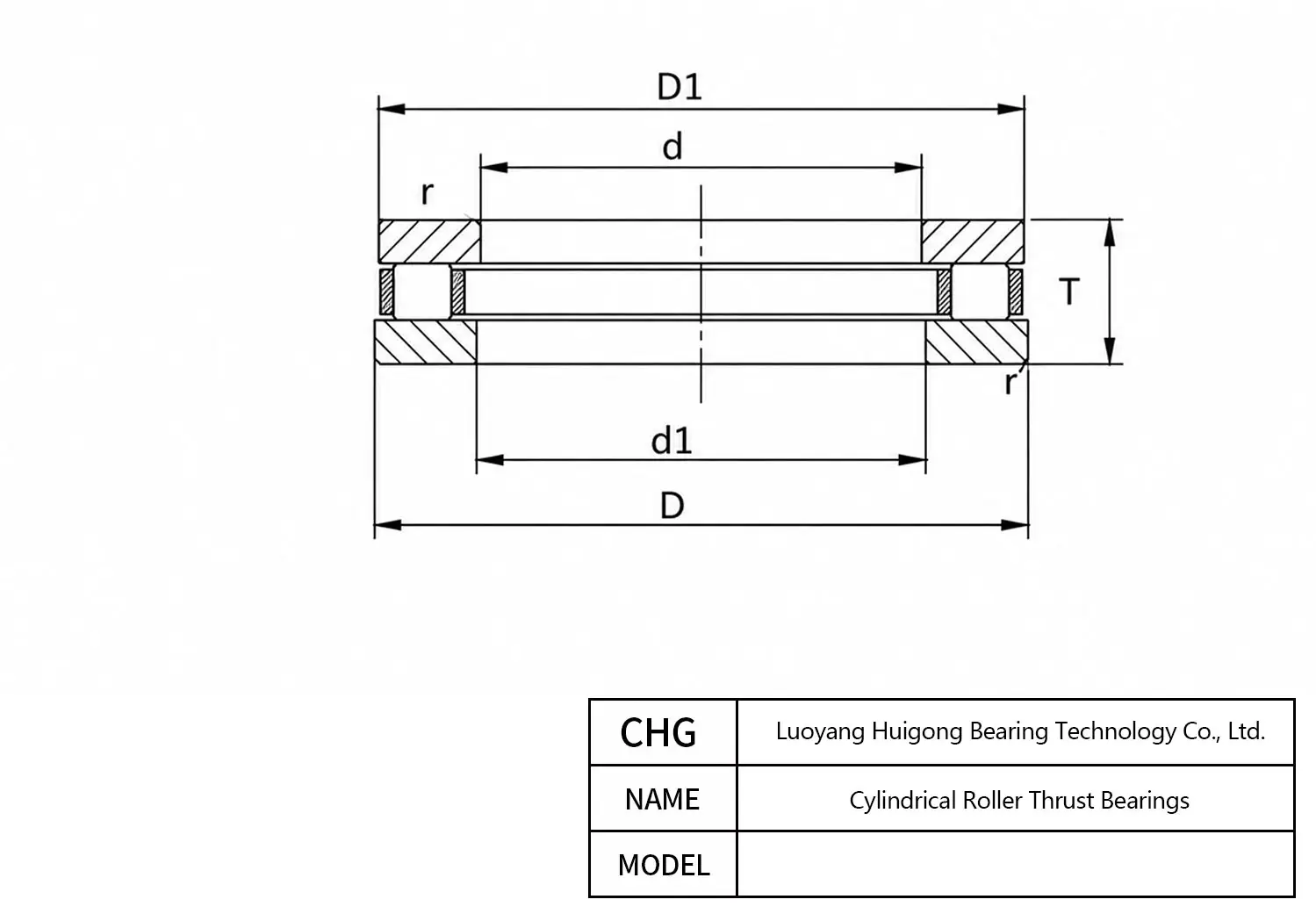

81176 460 mm 456 mm 380 mm 384 mm Frequently Asked Questions about 81176 Cylindrical Roller Thrust Bearings
Find key technical answers regarding dimensions, specifications, and replacement options for this model.
Absolutely. The CHG Bearing 81176 Cylindrical Roller Thrust Bearings is a 1:1 direct interchange for renowned brands, matching part numbers: SKF 81176, FAG 81176, NSK 81176. It shares identical envelope boundary dimensions, load capacities, and shaft fits, allowing instant drop-in replacement without retrofitting your machinery.
The Open Type engineered for 81176 by CHG Bearing utilizes precision non-contact metal shields or reinforced NBR/FKM contact lip seals. This barrier prevents particulate ingress, washdown fluids, and abrasive dust from reaching the raceways while eliminating grease leakage under centrifugal forces.
Quality starts with raw material selection: CHG Bearing crafts 81176 inner and outer rings from high-purity High-Quality Chrome Steel (GCr15/100Cr6). Our raw billets undergo vacuum degassing and secondary ESR (electroslag remelting) processes to drastically eliminate non-metallic sulfide and oxide inclusions, elevating subsurface contact fatigue resistance.
Yes, CHG Bearing works closely with industrial OEMs and brand distributors. We offer turnkey custom engineering for 81176, including laser-etched customer logos, custom internal radial clearances, specialized grease formulations, and bespoke protective packaging.
