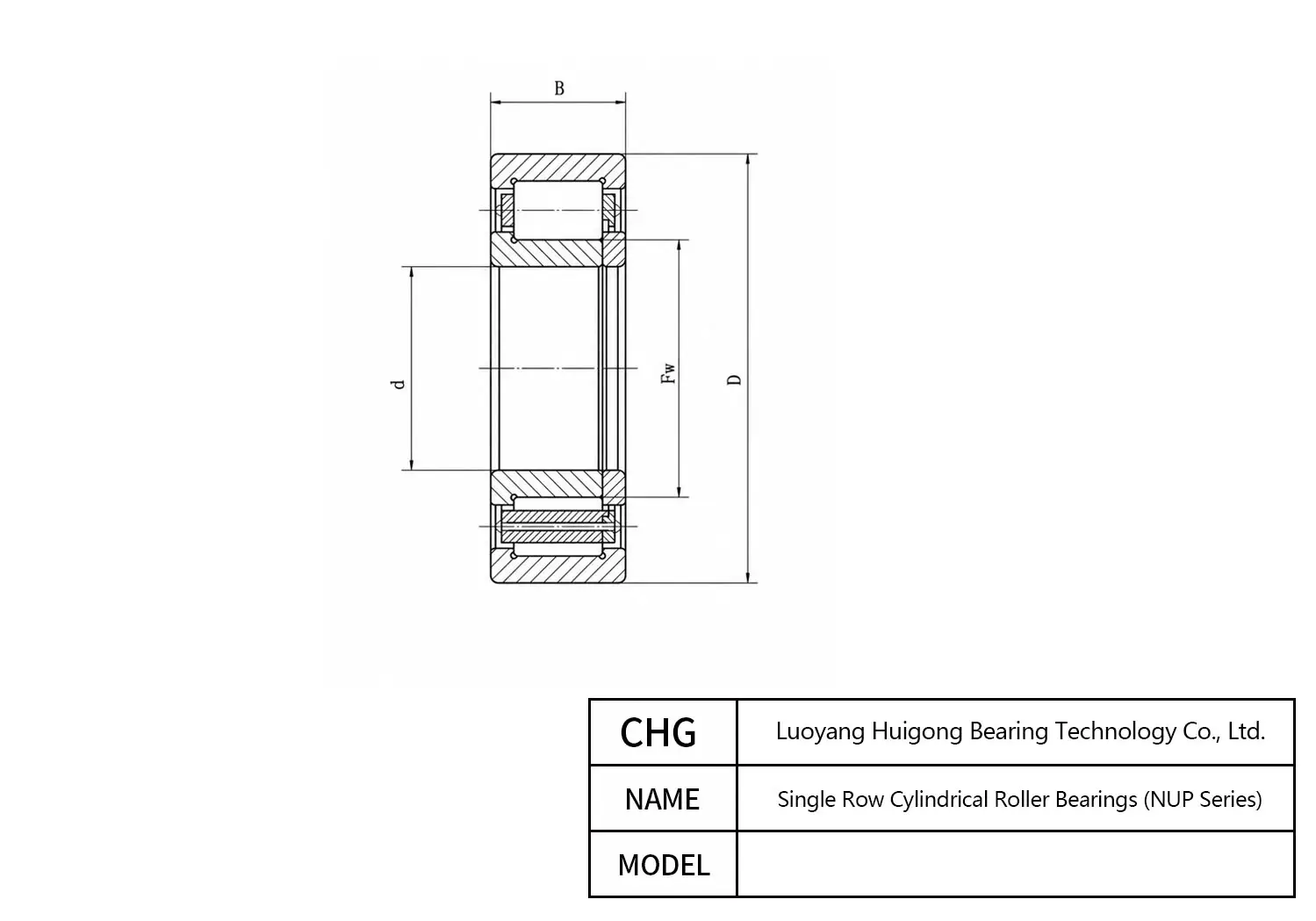

Manufactured by CHG Bearing, the NUP224-E is a precision Single Row Cylindrical Roller Bearings. Key dimensional parameters include a 220 mm bore diameter, a 400 mm outer diameter, and a 65 mm overall width. This component is designed to meet standard load requirements and ensure consistent operational performance. For comprehensive technical evaluation, please explore the detailed specifications, dimensional data, product images, and CAD drawings provided below. A complete PDF data sheet is also readily available for direct download to support your engineering and procurement needs.
NUP224-E - Single Row Cylindrical Roller Bearings
Technical Specifications
| Overview | |
|---|---|
| Part Number | NUP224-E |
| Brand | CHG® |
| Characteristics | |
| Bearing Type | Single Row Cylindrical Roller Bearing |
| Number of Rows | Single Row |
| Tolerance Class | P0 |
| Dimensions | |
| Bore Diameter (d) | 220 mm |
| Width (B) | 65 mm |
| Outer Diameter (D) | 400 mm |
| Bore Diameter Tolerance | -0.030 – 0 mm |
| Outside Diameter Tolerance | -0.040 – 0 mm |
| Width Tolerance | -0.30 – 0 mm |
| Enveloping Circle Diameter Fw | 270 mm |
| Inner Ring Chamfer | 4 min mm |
| Outer Ring Chamfer | 4 min mm |
| Performance | |
| Basic Dynamic Load Rating C (kN) | 969 kN |
| Basic Static Load Rating C0 (kN) | 1290 kN |
| Material | |
| Mass (kg) | 41.2 kg |
| Ring Material | Bearing Steel |
| Rolling Element Material | Bearing Steel |
| Cage Material | Brass |

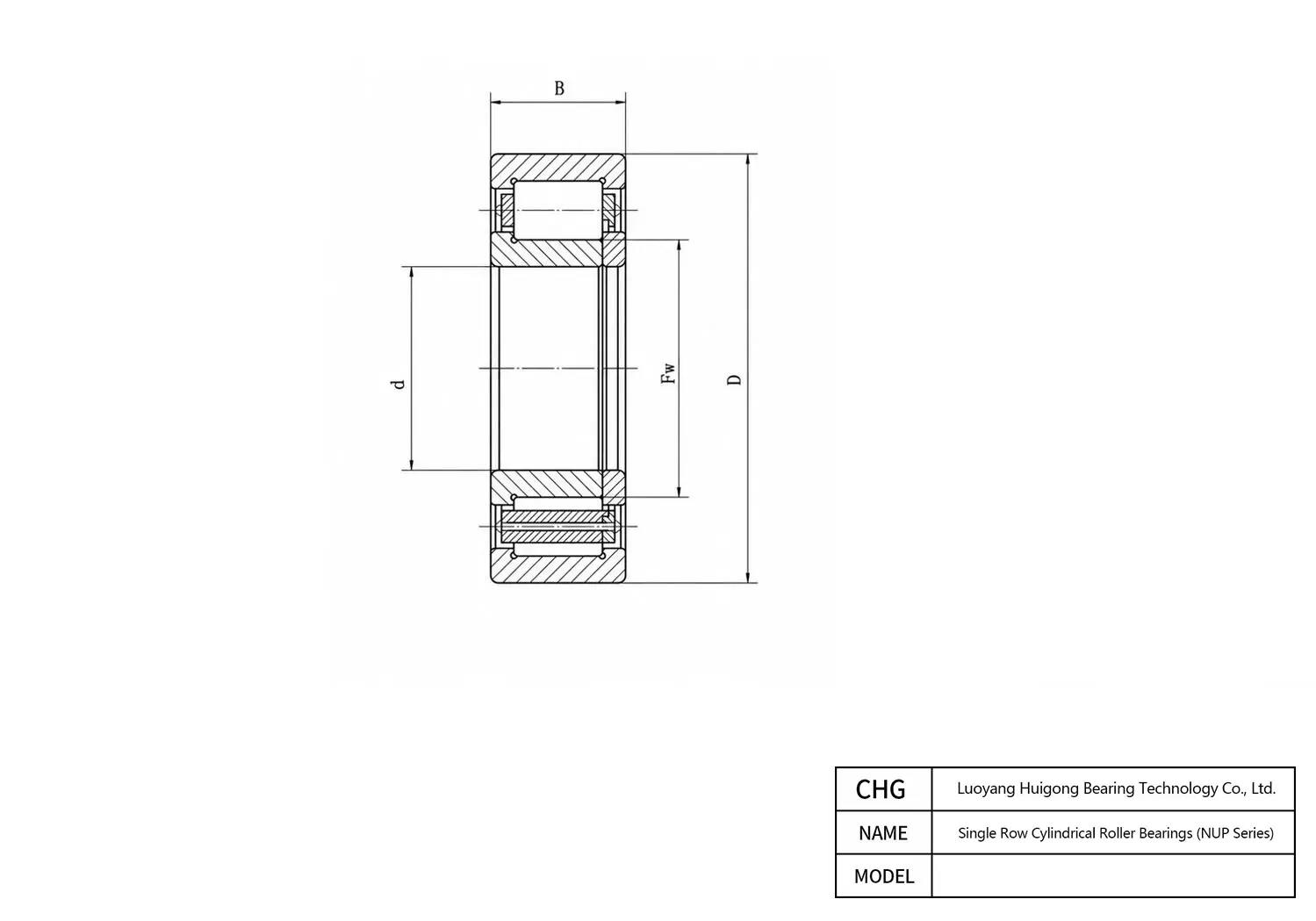

NUP224-E 400 mm 220 mm 270 mm 65 mm Frequently Asked Questions about NUP224-E Single Row Cylindrical Roller Bearings
Find key technical answers regarding dimensions, specifications, and replacement options for this model.
Standard batches of CHG Bearing NUP224-E conform strictly to ISO Class Normal (ABEC-1). For high-precision machine tool spindles, gearboxes, or robotics requiring tighter runouts, CHG Bearing can provide custom batches graded to ISO Class 6 (P6/ABEC-3) or ISO Class 5 (P5/ABEC-5) with 100% micrometer verification.
Yes, 100% of NUP224-E Single Row Cylindrical Roller Bearings leaving CHG Bearing production lines are subjected to multi-frequency Anderometer sound testing. All units satisfy baseline Z1V1 levels, with dedicated quiet-running electric motor quality (EMQ) lots certified to Z2V2 and Z3V3 standards for silent machinery integration.
To ensure optimum performance of CHG Bearing NUP224-E Single Row Cylindrical Roller Bearings under general rotational loads, our application engineers advise an inner-ring shaft tolerance of m5 or k5 for the 220 mm bore. For the 400 mm outer ring, an H7 or J7 housing bore fit is recommended to eliminate creep while accommodating normal thermal gradient expansion.
To extend the trouble-free lifespan of CHG Bearing NUP224-E, preventive maintenance routines should monitor operating housing temperature (normally maintaining below 70°C) and conduct regular vibration FFT analysis to identify early raceway micro-pitting before unexpected line halts occur.
