Manufactured by CHG Bearing, the NU1034 is a precision Single Row Cylindrical Roller Bearings. Key dimensional parameters include a 170 mm bore diameter, a 260 mm outer diameter, and a 42 mm overall width. This component is designed to meet standard load requirements and ensure consistent operational performance. For comprehensive technical evaluation, please explore the detailed specifications, dimensional data, product images, and CAD drawings provided below. A complete PDF data sheet is also readily available for direct download to support your engineering and procurement needs.
NU1034 - Single Row Cylindrical Roller Bearings
Technical Specifications
| Overview | |
|---|---|
| Part Number | NU1034 |
| Brand | CHG® |
| Characteristics | |
| Bearing Type | Single Row Cylindrical Roller Bearing |
| Number of Rows | Single Row |
| Tolerance Class | P0 |
| Dimensions | |
| Bore Diameter (d) | 170 mm |
| Width (B) | 42 mm |
| Outer Diameter (D) | 260 mm |
| Bore Diameter Tolerance | -0.025 – 0 mm |
| Outside Diameter Tolerance | -0.035 – 0 mm |
| Width Tolerance | -0.25 – 0 mm |
| Enveloping Circle Diameter Fw | 193 mm |
| Inner Ring Chamfer | 2.1 min mm |
| Outer Ring Chamfer | 2.1 min mm |
| Performance | |
| Basic Dynamic Load Rating C (kN) | 276 kN |
| Basic Static Load Rating C0 (kN) | 400 kN |
| Material | |
| Mass (kg) | 7.9 kg |
| Ring Material | Bearing Steel |
| Rolling Element Material | Bearing Steel |
| Cage Material | Brass |

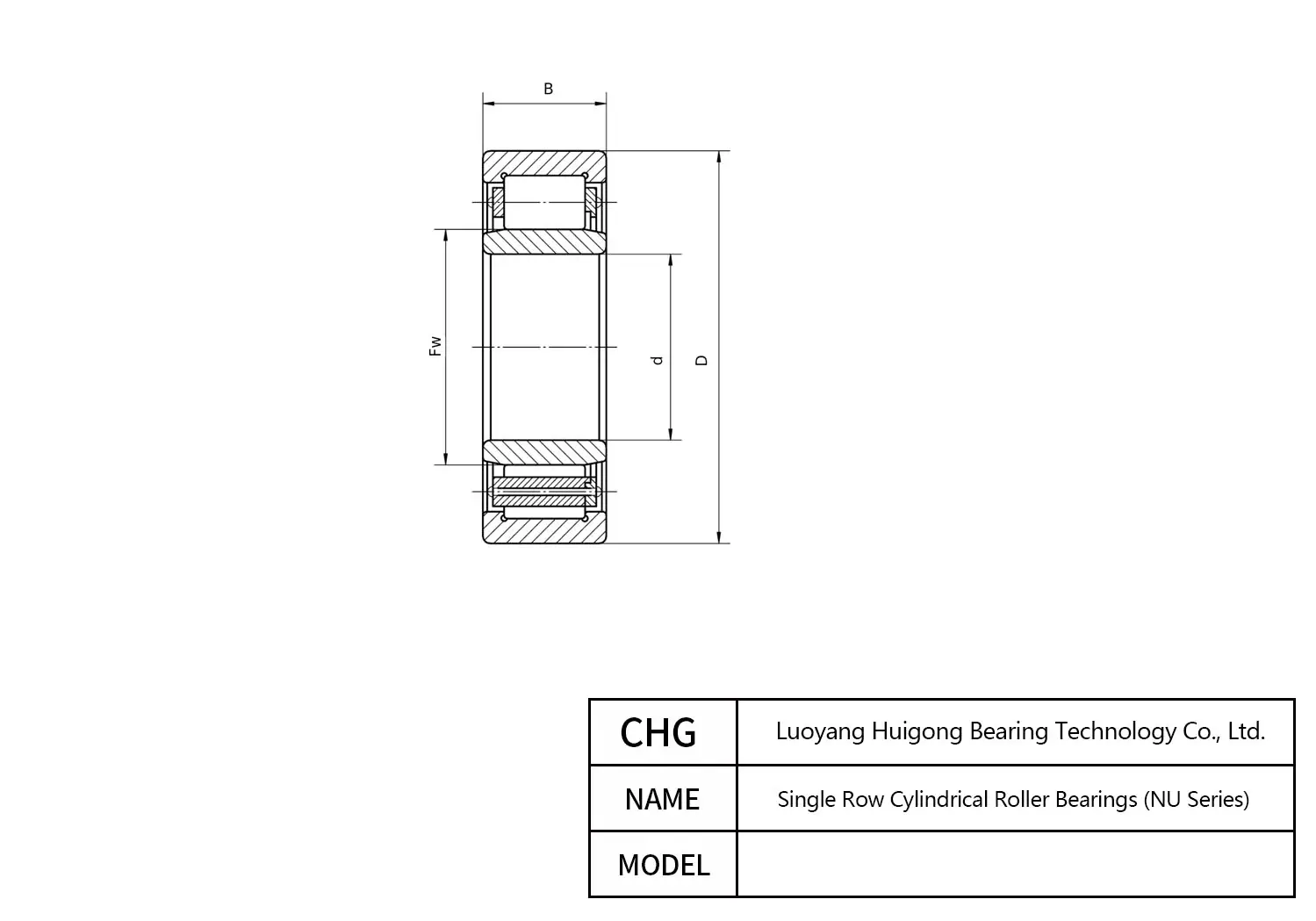

NU1034 260 mm 170 mm 42 mm 193 mm Frequently Asked Questions about NU1034 Single Row Cylindrical Roller Bearings
Find key technical answers regarding dimensions, specifications, and replacement options for this model.
To extend the trouble-free lifespan of CHG Bearing NU1034, preventive maintenance routines should monitor operating housing temperature (normally maintaining below 70°C) and conduct regular vibration FFT analysis to identify early raceway micro-pitting before unexpected line halts occur.
Beyond standard alloy steel, CHG Bearing can customize the NU1034 Single Row Cylindrical Roller Bearings using AISI 440C stainless steel, black oxide coating, zinc-nickel plating, or hybrid ceramic (Si3N4) balls for applications involving chemical exposure, marine salt fog, or galvanic current hazards.
Absolutely. The CHG Bearing NU1034 Single Row Cylindrical Roller Bearings is a 1:1 direct interchange for renowned brands, matching part numbers: SKF NU1034, FAG NU1034, NSK NU1034. It shares identical envelope boundary dimensions, load capacities, and shaft fits, allowing instant drop-in replacement without retrofitting your machinery.
As a primary manufacturer, CHG Bearing supports both trial batch evaluations and container-load supply for NU1034. Standard catalog sizes are stocked for rapid 3–7 day dispatch, while high-volume OEM production runs typically dispatch within 30–45 days.
