Manufactured by CHG Bearing, the NU1022 is a precision Single Row Cylindrical Roller Bearings. Key dimensional parameters include a 110 mm bore diameter, a 170 mm outer diameter, and a 28 mm overall width. This component is designed to meet standard load requirements and ensure consistent operational performance. For comprehensive technical evaluation, please explore the detailed specifications, dimensional data, product images, and CAD drawings provided below. A complete PDF data sheet is also readily available for direct download to support your engineering and procurement needs.
NU1022 - Single Row Cylindrical Roller Bearings
Technical Specifications
| Overview | |
|---|---|
| Part Number | NU1022 |
| Brand | CHG® |
| Characteristics | |
| Bearing Type | Single Row Cylindrical Roller Bearing |
| Number of Rows | Single Row |
| Tolerance Class | P0 |
| Dimensions | |
| Bore Diameter (d) | 110 mm |
| Width (B) | 28 mm |
| Outer Diameter (D) | 170 mm |
| Bore Diameter Tolerance | -0.020 – 0 mm |
| Outside Diameter Tolerance | -0.025 – 0 mm |
| Width Tolerance | -0.20 – 0 mm |
| Enveloping Circle Diameter Fw | 125 mm |
| Inner Ring Chamfer | 1.1 min mm |
| Outer Ring Chamfer | 2 min mm |
| Performance | |
| Basic Dynamic Load Rating C (kN) | 134 kN |
| Basic Static Load Rating C0 (kN) | 171 kN |
| Material | |
| Mass (kg) | 2.31 kg |
| Ring Material | Bearing Steel |
| Rolling Element Material | Bearing Steel |
| Cage Material | Brass |

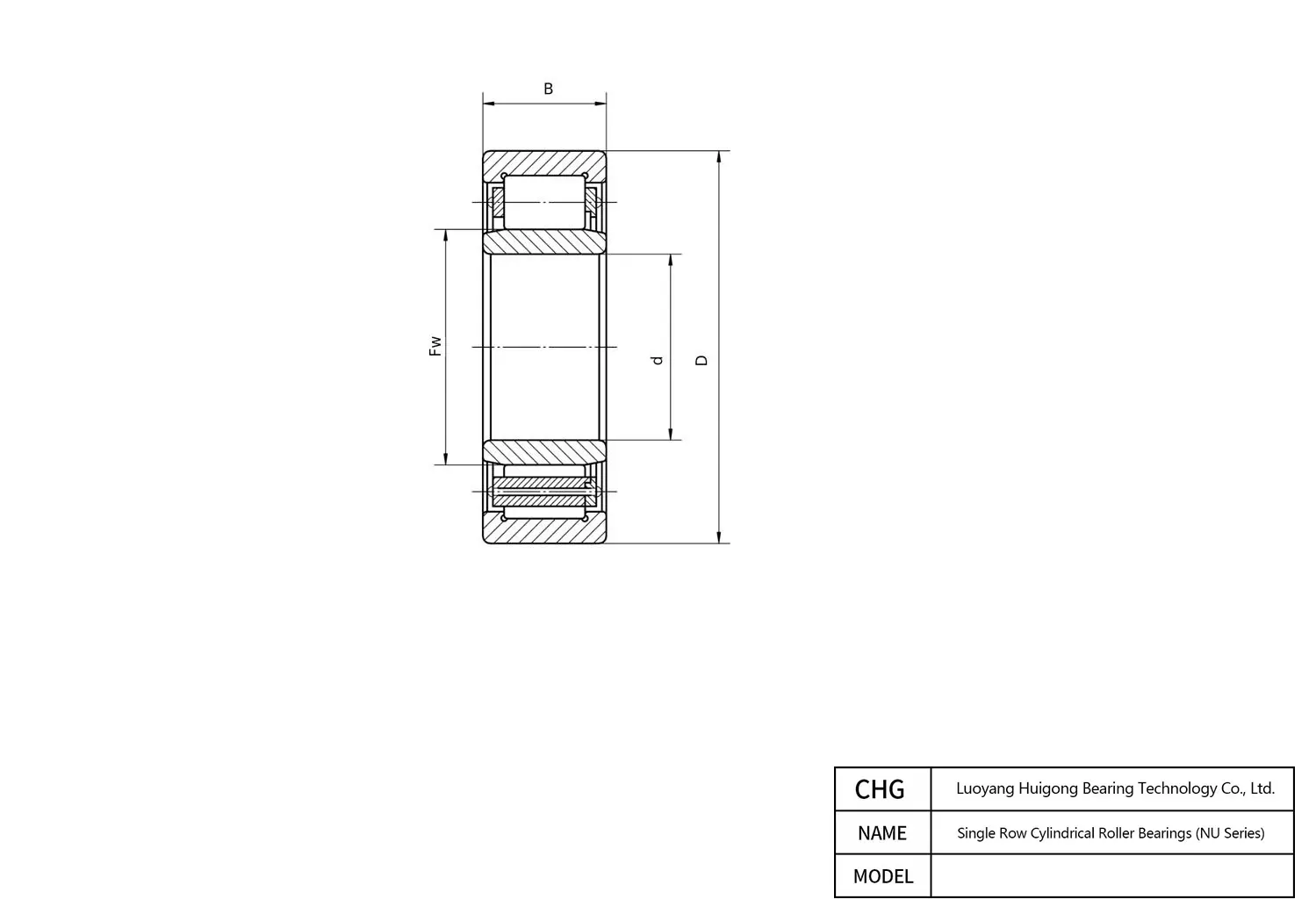

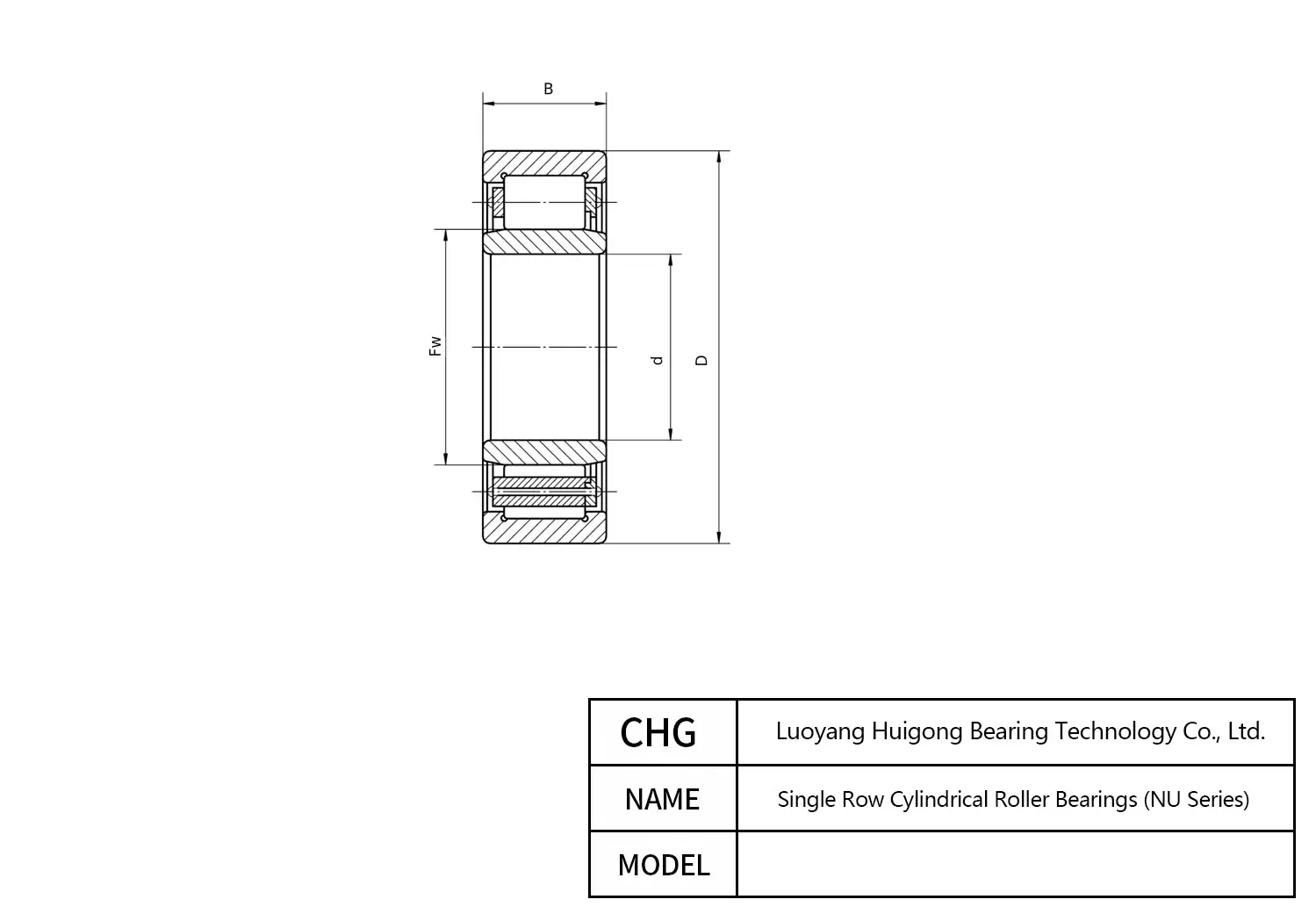

NU1022 170 mm 110 mm 28 mm 125 mm Frequently Asked Questions about NU1022 Single Row Cylindrical Roller Bearings
Find key technical answers regarding dimensions, specifications, and replacement options for this model.
To ensure optimum performance of CHG Bearing NU1022 Single Row Cylindrical Roller Bearings under general rotational loads, our application engineers advise an inner-ring shaft tolerance of m5 or k5 for the 110 mm bore. For the 170 mm outer ring, an H7 or J7 housing bore fit is recommended to eliminate creep while accommodating normal thermal gradient expansion.
Quality starts with raw material selection: CHG Bearing crafts NU1022 inner and outer rings from high-purity High-Quality Chrome Steel (GCr15/100Cr6). Our raw billets undergo vacuum degassing and secondary ESR (electroslag remelting) processes to drastically eliminate non-metallic sulfide and oxide inclusions, elevating subsurface contact fatigue resistance.
As standard production, CHG Bearing subjects NU1022 to precision bainite or martensite quenching, offering dimensional stability up to 120°C (248°F). For high-heat processing equipment, CHG Bearing also supplies custom S0 (150°C), S1 (200°C), or S2 (250°C) stabilization heat treatments upon request to prevent residual austenite transformation.
To match diverse operational dynamics, CHG Bearing supplies NU1022 with multiple cage configurations: high-strength pressed steel ribbon cages for standard duty, solid machined brass cages (M/CA) for heavy vibration and shock loads, or lightweight glass-fiber reinforced polyamide cages (TN9/TVP) for high acceleration and ultra-low noise.
