Manufactured by CHG Bearing, the NNCF5056V is a precision Full Complement Cylindrical Roller Bearings. Key dimensional parameters include a 280 mm bore diameter, a 420 mm outer diameter, and a 190 mm overall width. This component is designed to meet standard load requirements and ensure consistent operational performance. For comprehensive technical evaluation, please explore the detailed specifications, dimensional data, product images, and CAD drawings provided below. A complete PDF data sheet is also readily available for direct download to support your engineering and procurement needs.
NNCF5056V - Full Complement Cylindrical Roller Bearings
Technical Specifications
| Overview | |
|---|---|
| Part Number | NNCF5056V |
| Brand | CHG® |
| Rolling Element | Cylindrical Roller |
| Construction | Double Row; Full Complement (No Cage) |
| Characteristics | |
| Bearing Type | Double-Row Full-Complement Cylindrical Roller Bearing |
| Series | NNCF |
| Load Direction | Radial |
| Limiting Speed — Grease (r/min) | 360 r/min |
| Limiting Speed — Oil (r/min) | 670 r/min |

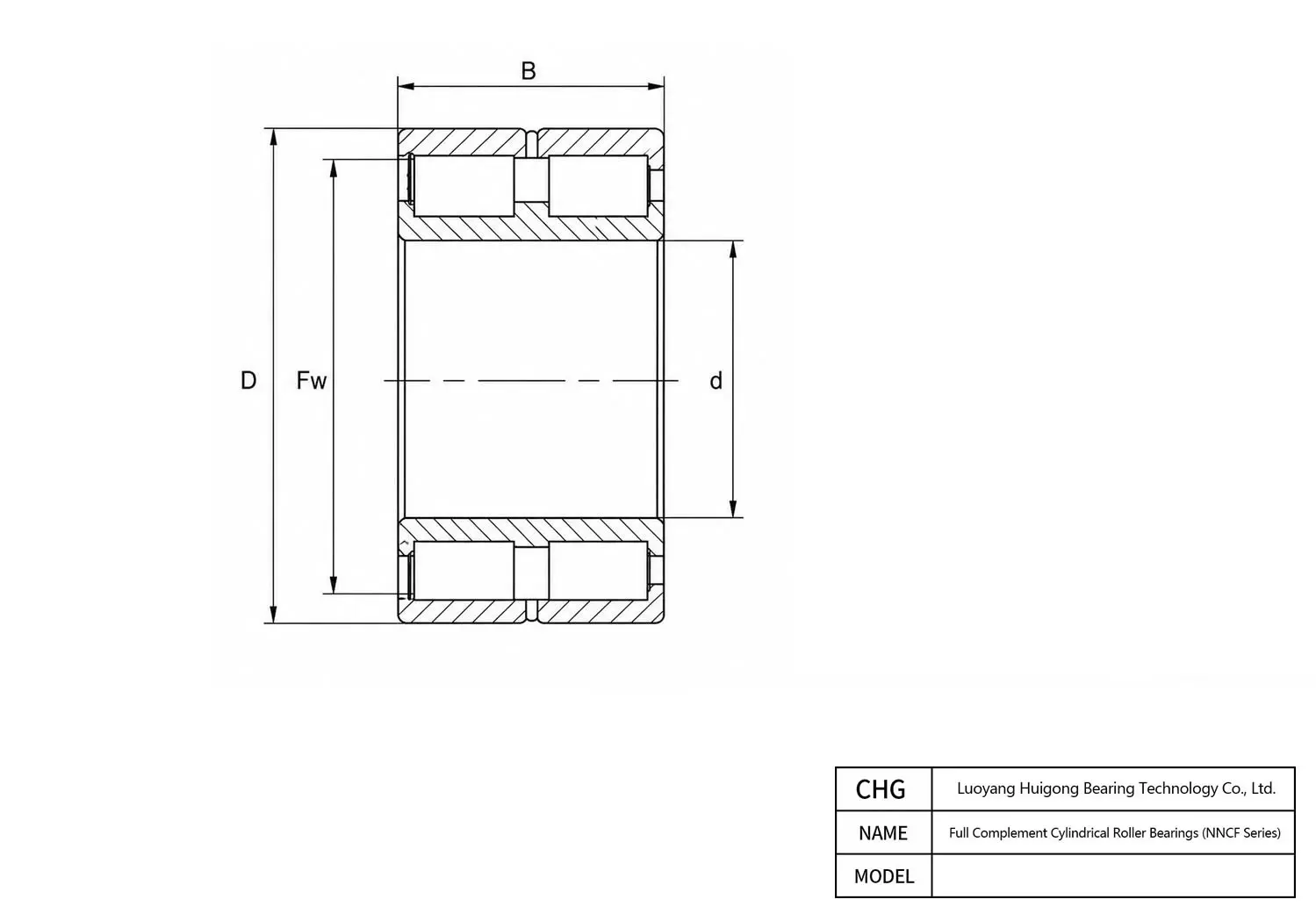

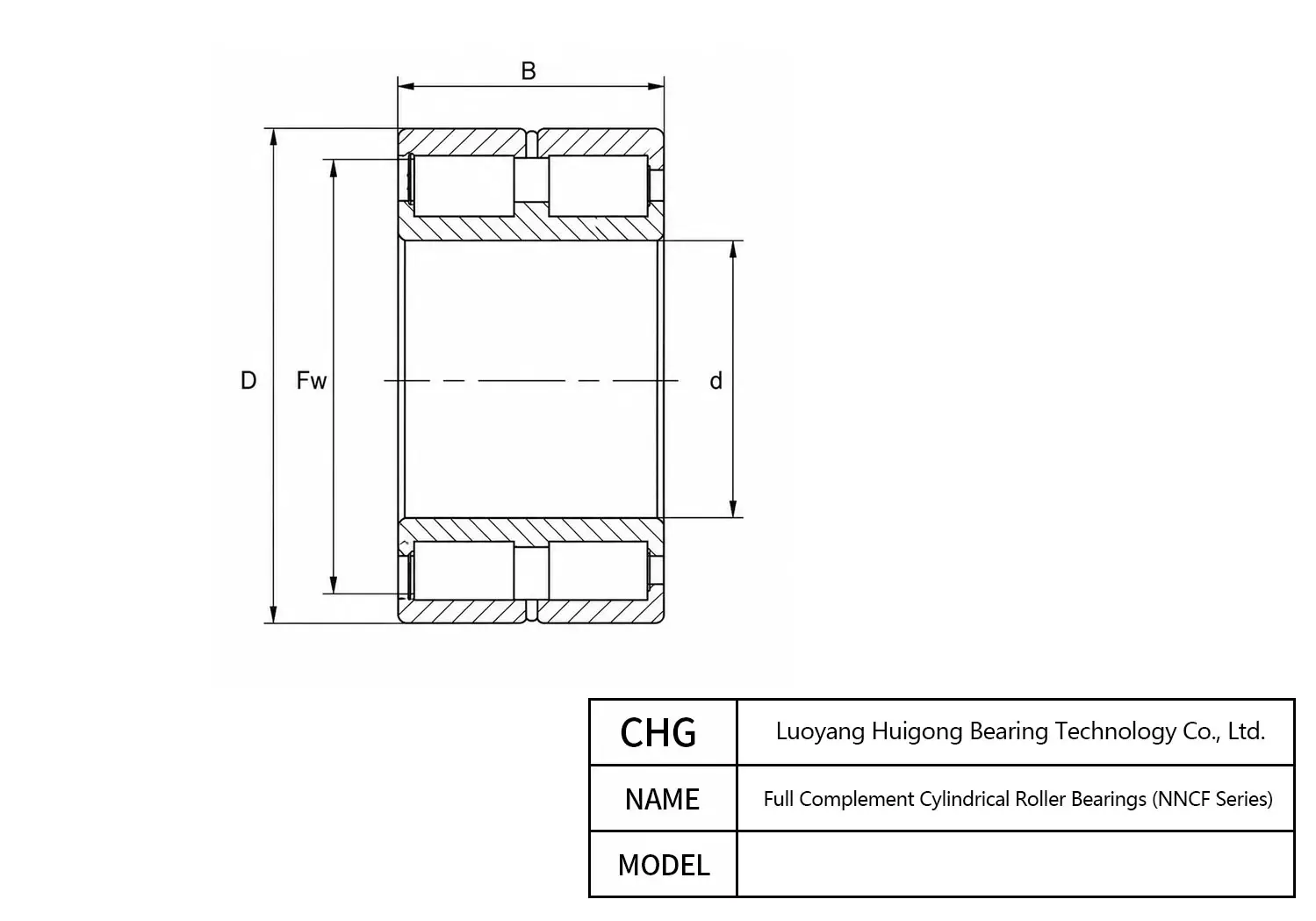

| Dimensions | |
| Bore Diameter (d) | 280 mm |
| Width (B) | 190 mm |
| Outer Diameter (D) | 420 mm |
| Raceway Diameter Ew | 389 mm |
| Performance | |
| Basic Dynamic Radial Load Rating Cr (kN) | 2770 kN |
| Basic Static Radial Load Rating C0r (kN) | 5450 kN |
| Material | |
| Mass (kg) | 87.7 kg |
| Chamfer Dimension r1,2 (min.) | 4 min. mm |
| Chamfer Dimension r3,4 (min.) | N/A min. mm |
NNCF5056V 280 mm 420 mm 190 mm Frequently Asked Questions about NNCF5056V Full Complement Cylindrical Roller Bearings
Find key technical answers regarding dimensions, specifications, and replacement options for this model.
Yes, 100% of NNCF5056V Full Complement Cylindrical Roller Bearings leaving CHG Bearing production lines are subjected to multi-frequency Anderometer sound testing. All units satisfy baseline Z1V1 levels, with dedicated quiet-running electric motor quality (EMQ) lots certified to Z2V2 and Z3V3 standards for silent machinery integration.
For international ocean and air freight, CHG Bearing packs NNCF5056V with industrial VCI anti-corrosion barrier wrapping, sealed polybags, individual cartons, and fumigated ocean-worthy wooden crates. This multi-layer barrier guarantees rust-free storage for a minimum shelf life of 24 to 36 months.
Absolutely. The CHG Bearing NNCF5056V Full Complement Cylindrical Roller Bearings is a 1:1 direct interchange for renowned brands, matching part numbers: SKF NNCF5056V, FAG NNCF5056V, NSK NNCF5056V. It shares identical envelope boundary dimensions, load capacities, and shaft fits, allowing instant drop-in replacement without retrofitting your machinery.
Beyond standard alloy steel, CHG Bearing can customize the NNCF5056V Full Complement Cylindrical Roller Bearings using AISI 440C stainless steel, black oxide coating, zinc-nickel plating, or hybrid ceramic (Si3N4) balls for applications involving chemical exposure, marine salt fog, or galvanic current hazards.
