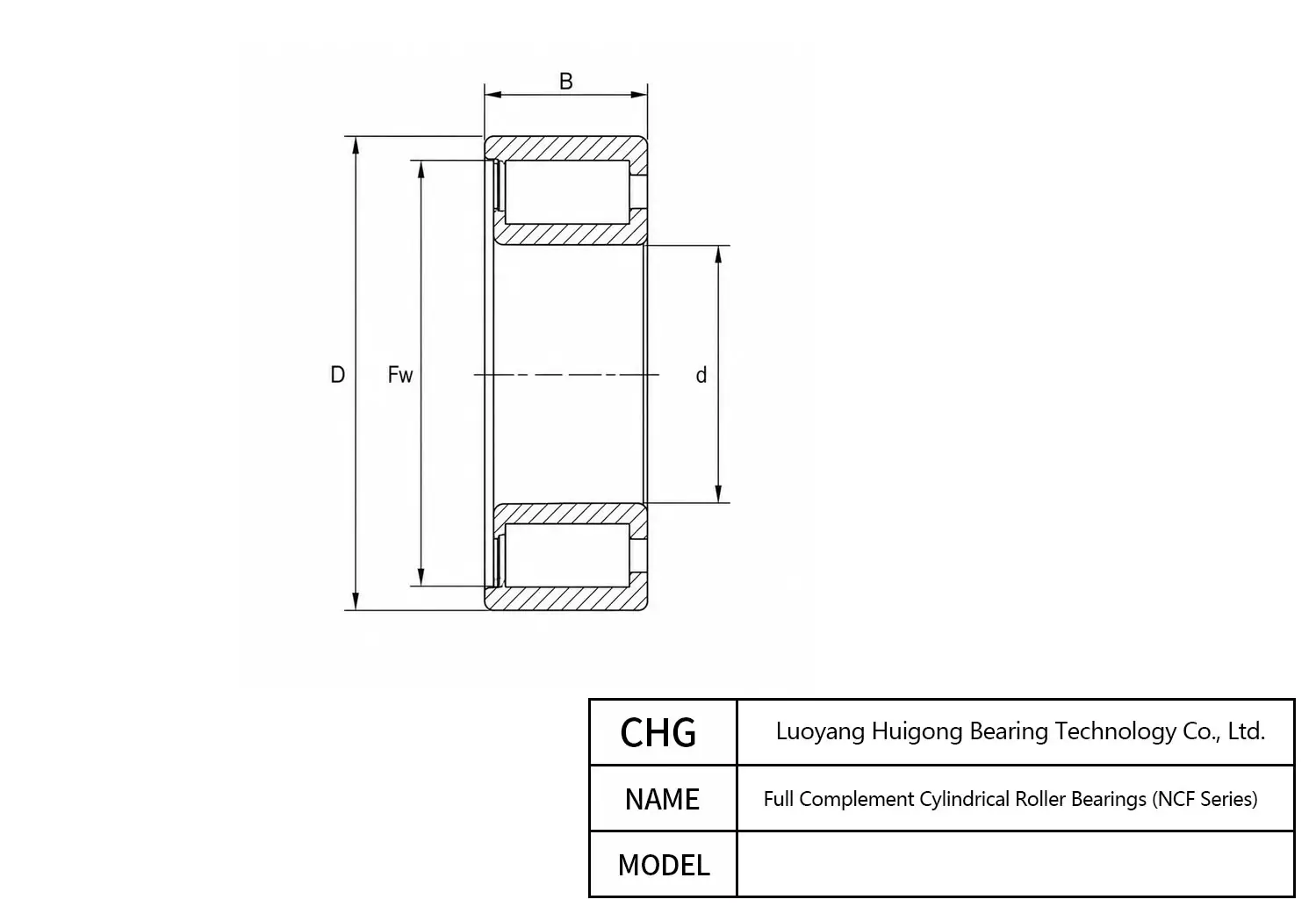

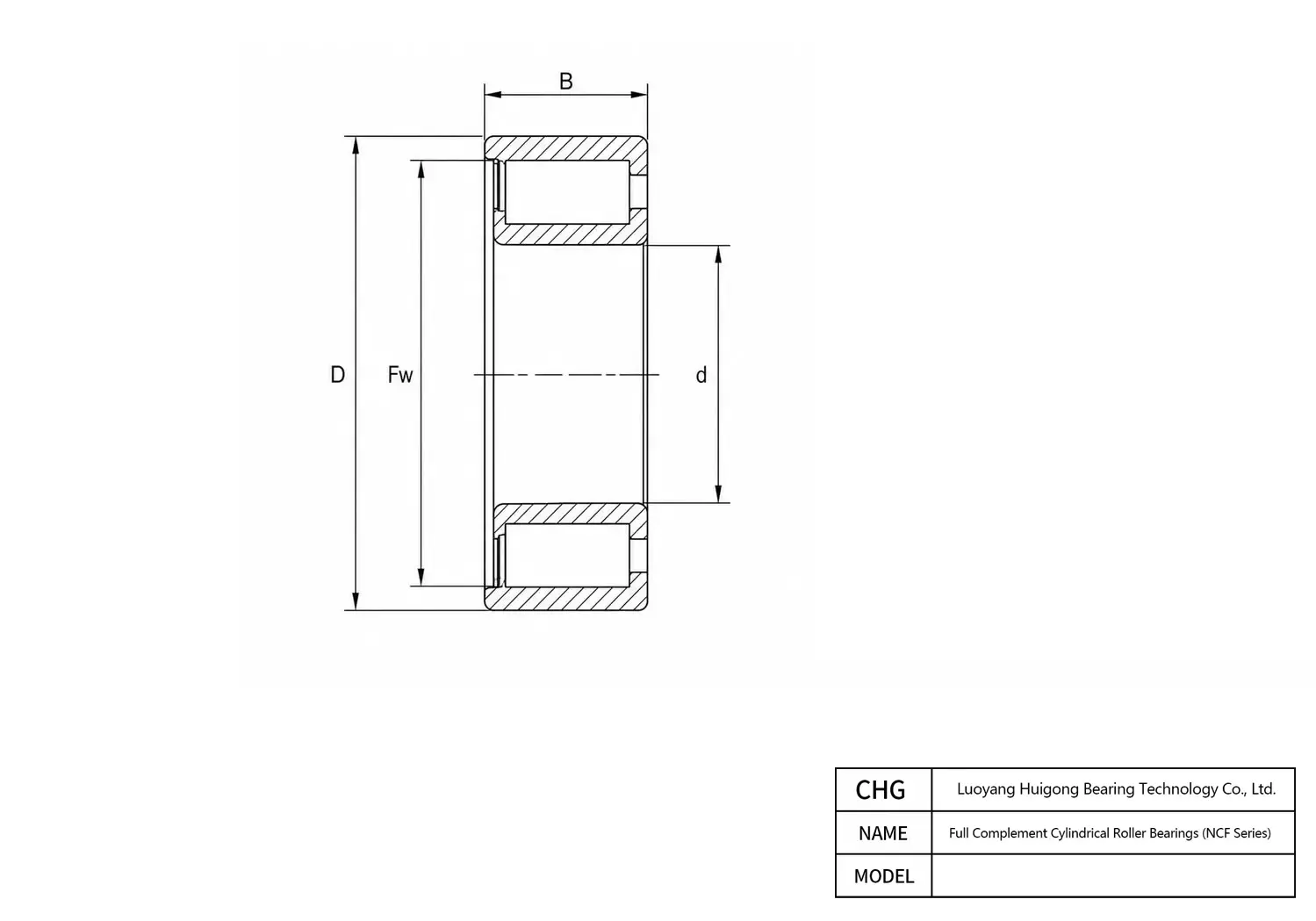

Manufactured by CHG Bearing, the NCF1876V is a precision Full Complement Cylindrical Roller Bearings. Key dimensional parameters include a 380 mm bore diameter, a 480 mm outer diameter, and a 46 mm overall width. This component is designed to meet standard load requirements and ensure consistent operational performance. For comprehensive technical evaluation, please explore the detailed specifications, dimensional data, product images, and CAD drawings provided below. A complete PDF data sheet is also readily available for direct download to support your engineering and procurement needs.

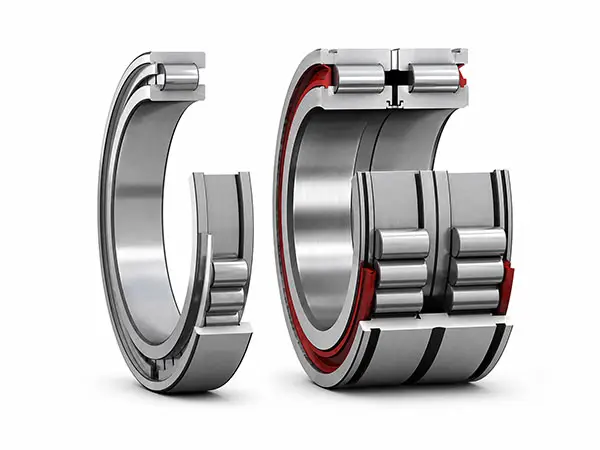

NCF1876V - Full Complement Cylindrical Roller Bearings
Technical Specifications
| Overview | |
|---|---|
| Part Number | NCF1876V |
| Brand | CHG® |
| Rolling Element | Cylindrical Roller |
| Construction | Single Row; Full Complement (No Cage) |
| Characteristics | |
| Bearing Type | Single-Row Full-Complement Cylindrical Roller Bearing |
| Series | NCF |
| Load Direction | Radial |
| Limiting Speed — Grease (r/min) | 280 r/min |
| Limiting Speed — Oil (r/min) | 530 r/min |
| Dimensions | |
| Bore Diameter (d) | 380 mm |
| Width (B) | 46 mm |
| Outer Diameter (D) | 480 mm |
| Raceway Diameter Ew | 458 mm |
| Performance | |
| Basic Dynamic Radial Load Rating Cr (kN) | 575 kN |
| Basic Static Radial Load Rating C0r (kN) | 1230 kN |
| Material | |
| Mass (kg) | 18.6 kg |
| Chamfer Dimension r1,2 (min.) | 2.1 min. mm |
| Chamfer Dimension r3,4 (min.) | 1.5 min. mm |
NCF1876V 480 mm 46 mm 380 mm Frequently Asked Questions about NCF1876V Full Complement Cylindrical Roller Bearings
Find key technical answers regarding dimensions, specifications, and replacement options for this model.
To safeguard CHG Bearing NCF1876V against fretting wear and false brinelling during transport or vibration, assemble mating surfaces (380 mm x 480 mm) using anti-fretting mounting paste. Maintaining strict alignment and avoiding prolonged static vibration will preserve raceway polish.
Every production batch of CHG Bearing NCF1876V Full Complement Cylindrical Roller Bearings comes with complete traceability. Upon shipment, CHG Bearing can provide EN 10204 3.1 Material Test Reports (MTR), Certificates of Conformity (CoC), spectral chemical composition analysis, and dimensional inspection sheets.
To ensure optimum performance of CHG Bearing NCF1876V Full Complement Cylindrical Roller Bearings under general rotational loads, our application engineers advise an inner-ring shaft tolerance of m5 or k5 for the 380 mm bore. For the 480 mm outer ring, an H7 or J7 housing bore fit is recommended to eliminate creep while accommodating normal thermal gradient expansion.
Absolutely. The CHG Bearing NCF1876V Full Complement Cylindrical Roller Bearings is a 1:1 direct interchange for renowned brands, matching part numbers: SKF NCF1876V, FAG NCF1876V, NSK NCF1876V. It shares identical envelope boundary dimensions, load capacities, and shaft fits, allowing instant drop-in replacement without retrofitting your machinery.
