Manufactured by CHG Bearing, the FCD88124450 is a precision Four-Row Cylindrical Roller Bearings. Key dimensional parameters include a 440 mm bore diameter, a 620 mm outer diameter, and a 450 mm overall width. This component is designed to meet standard load requirements and ensure consistent operational performance. For comprehensive technical evaluation, please explore the detailed specifications, dimensional data, product images, and CAD drawings provided below. A complete PDF data sheet is also readily available for direct download to support your engineering and procurement needs.
FCD88124450 - Four-Row Cylindrical Roller Bearings
Technical Specifications
| Overview | |
|---|---|
| Part Number | FCD88124450 |
| Brand | CHG® |
| Characteristics | |
| Bearing Type | Four Row Cylindrical Roller Bearing |
| Number of Rows | Four Row |
| Tolerance Class | P0 |
| Dimensions | |
| Bore Diameter (d) | 440 mm |
| Width (B) | 450 mm |
| Outer Diameter (D) | 620 mm |
| Bore Diameter Tolerance | -0.045 – 0 mm |
| Outside Diameter Tolerance | -0.050 – 0 mm |
| Width Tolerance | -0.45 – 0 mm |
| Enveloping Circle Diameter Fw | 490 mm |
| Inner Ring Chamfer | 5 min mm |
| Outer Ring Chamfer | 5 min mm |
| Performance | |
| Basic Dynamic Load Rating C (kN) | 5690 kN |
| Basic Static Load Rating C0 (kN) | 15600 kN |
| Material | |
| Mass (kg) | 430 kg |
| Ring Material | Case-Hardened Steel |
| Rolling Element Material | Bearing Steel / Case-Hardened Steel |
| Cage Material | Brass |
| Lubrication Groove Width | 15 mm |
| Lubrication Holes (qty × Ø mm) | 6 × Ø8 |

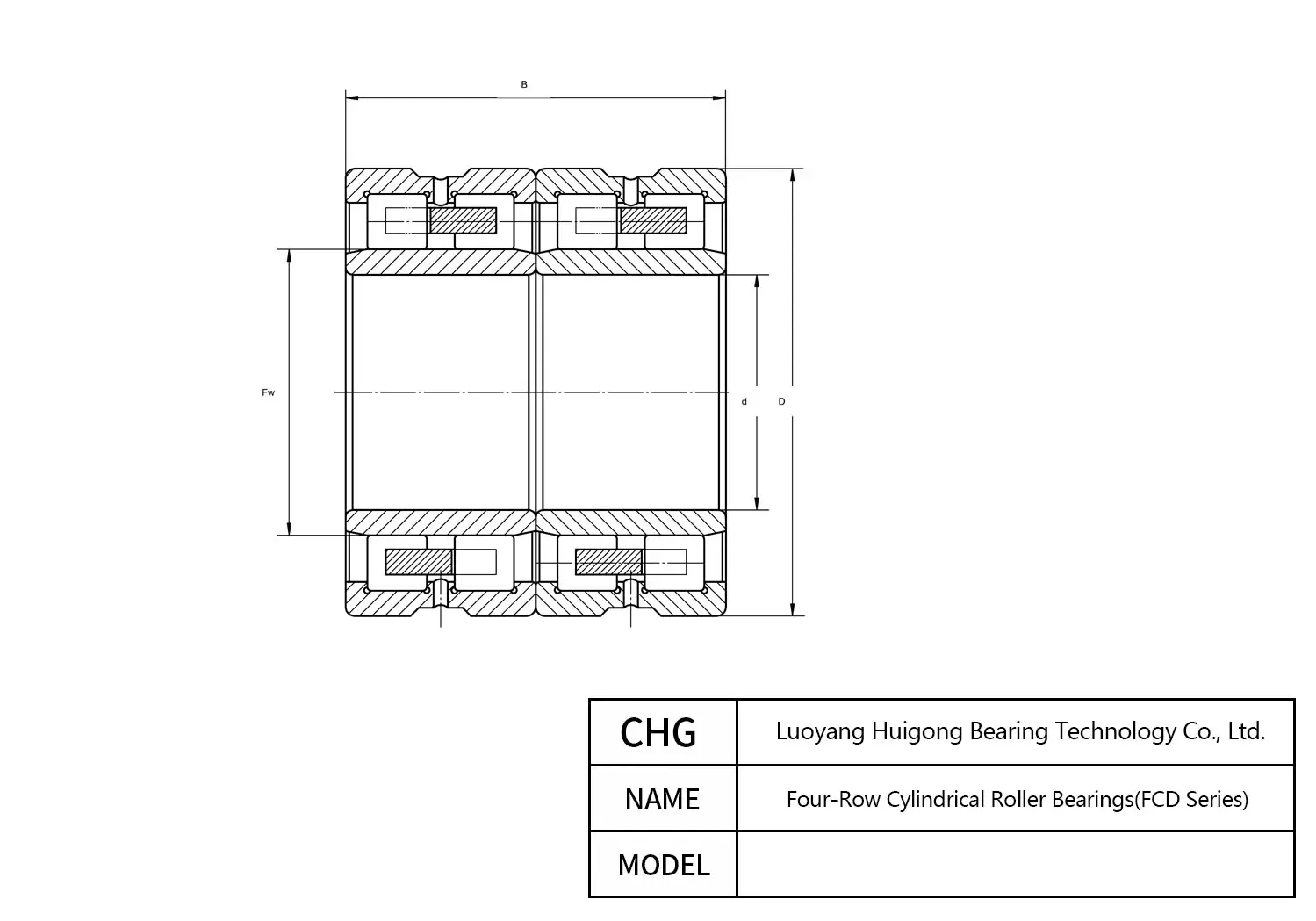

FCD88124450 620 mm 440 mm 490 mm 450 mm Frequently Asked Questions about FCD88124450 Four-Row Cylindrical Roller Bearings
Find key technical answers regarding dimensions, specifications, and replacement options for this model.
Standard batches of CHG Bearing FCD88124450 conform strictly to ISO Class Normal (ABEC-1). For high-precision machine tool spindles, gearboxes, or robotics requiring tighter runouts, CHG Bearing can provide custom batches graded to ISO Class 6 (P6/ABEC-3) or ISO Class 5 (P5/ABEC-5) with 100% micrometer verification.
To ensure optimum performance of CHG Bearing FCD88124450 Four-Row Cylindrical Roller Bearings under general rotational loads, our application engineers advise an inner-ring shaft tolerance of m5 or k5 for the 440 mm bore. For the 620 mm outer ring, an H7 or J7 housing bore fit is recommended to eliminate creep while accommodating normal thermal gradient expansion.
Built for demanding industrial environments, the FCD88124450 Four-Row Cylindrical Roller Bearings by CHG Bearing boasts a dynamic load rating (Cr) of standard dynamic and a static load threshold (C0r) of standard static. The optimized internal raceway geometry balances stress distribution, mitigating edge loading even when operating under peak mechanical stresses.
Quality starts with raw material selection: CHG Bearing crafts FCD88124450 inner and outer rings from high-purity High-Quality Chrome Steel (GCr15/100Cr6). Our raw billets undergo vacuum degassing and secondary ESR (electroslag remelting) processes to drastically eliminate non-metallic sulfide and oxide inclusions, elevating subsurface contact fatigue resistance.
