Manufactured by CHG Bearing, the FCD446225p5 is a precision Four-Row Cylindrical Roller Bearings. Key dimensional parameters include a 220 mm bore diameter, a 310 mm outer diameter, and a 225 mm overall width. This component is designed to meet standard load requirements and ensure consistent operational performance. For comprehensive technical evaluation, please explore the detailed specifications, dimensional data, product images, and CAD drawings provided below. A complete PDF data sheet is also readily available for direct download to support your engineering and procurement needs.
FCD446225p5 - Four-Row Cylindrical Roller Bearings
Technical Specifications
| Overview | |
|---|---|
| Part Number | FCD446225p5 |
| Brand | CHG® |
| Characteristics | |
| Bearing Type | Four Row Cylindrical Roller Bearing |
| Number of Rows | Four Row |
| Tolerance Class | P5 |
| Dimensions | |
| Bore Diameter (d) | 220 mm |
| Width (B) | 225 mm |
| Outer Diameter (D) | 310 mm |
| Bore Diameter Tolerance | -0.015 – 0 mm |
| Outside Diameter Tolerance | -0.018 – 0 mm |
| Width Tolerance | -0.35 – 0 mm |
| Enveloping Circle Diameter Fw | 246 mm |
| Inner Ring Chamfer | 2.1 min mm |
| Outer Ring Chamfer | 2.1 min mm |
| Performance | |
| Basic Dynamic Load Rating C (kN) | 1450 kN |
| Basic Static Load Rating C0 (kN) | 3750 kN |
| Material | |
| Mass (kg) | 53.4 kg |
| Ring Material | Bearing Steel |
| Rolling Element Material | Bearing Steel |
| Cage Material | Brass |
| Lubrication Groove Width | 9.5 mm |
| Lubrication Holes (qty × Ø mm) | 4 × Ø5 |

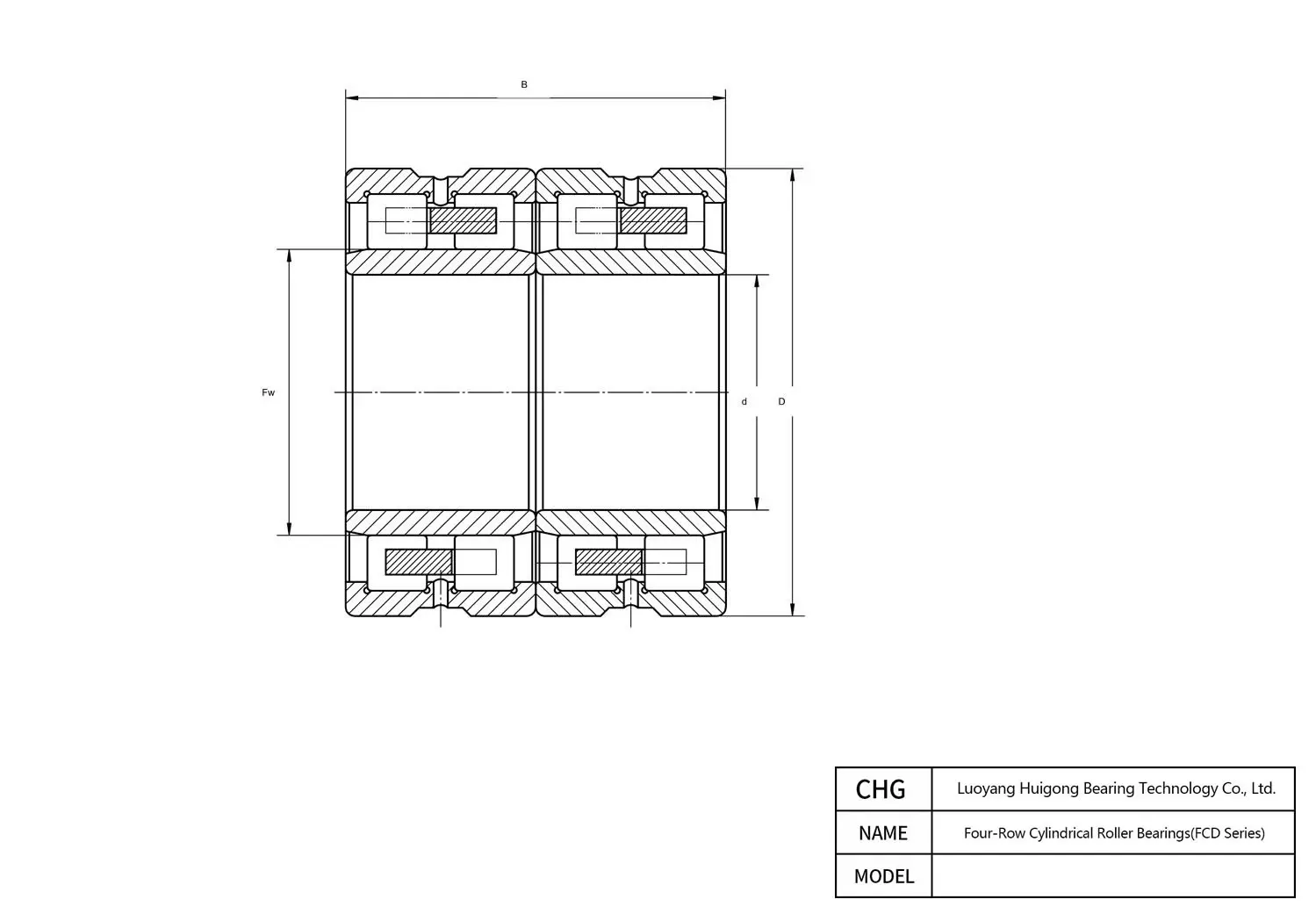

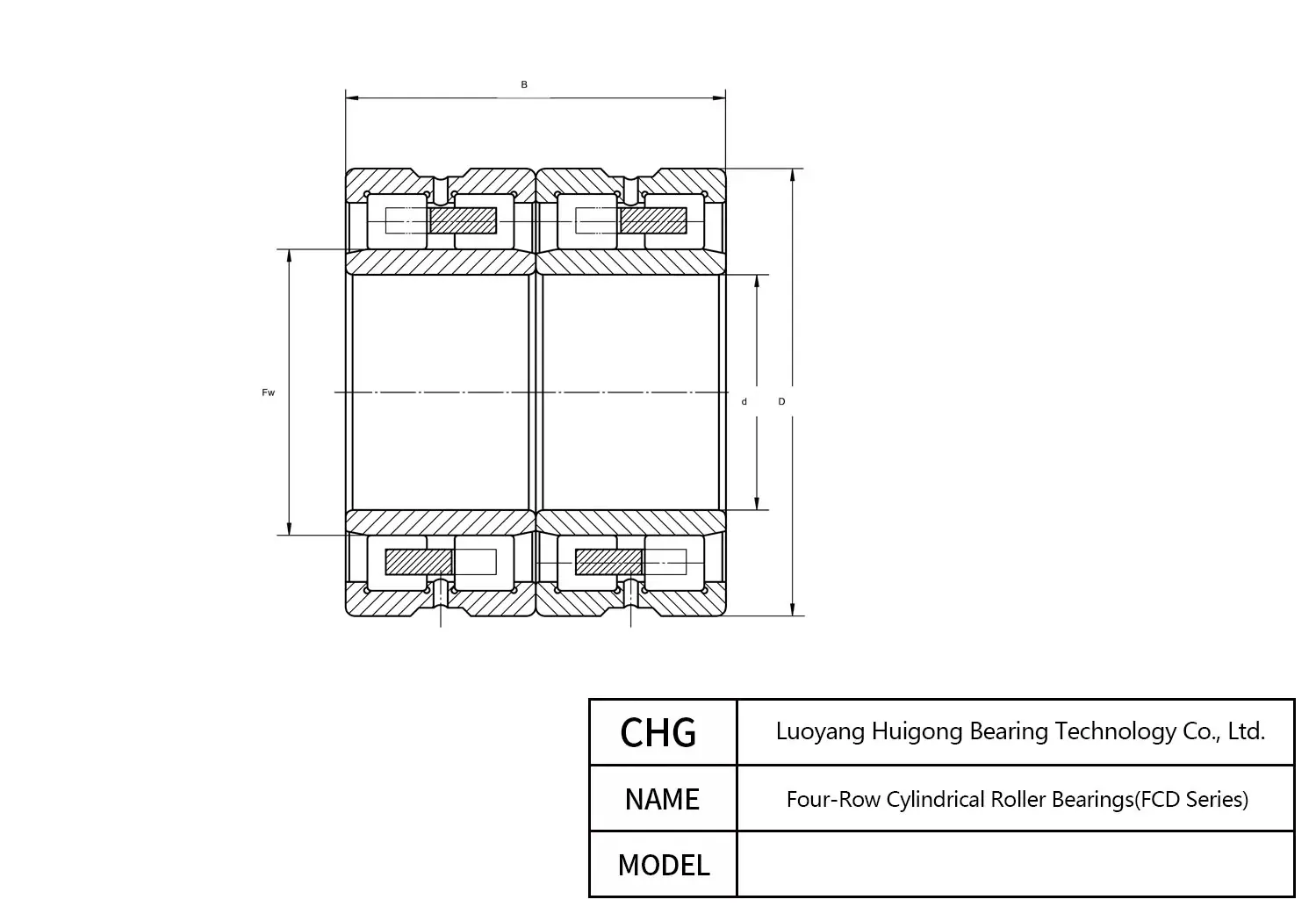

FCD446225p5 310 mm 220 mm 246 mm 225 mm Frequently Asked Questions about FCD446225p5 Four-Row Cylindrical Roller Bearings
Find key technical answers regarding dimensions, specifications, and replacement options for this model.
Built for demanding industrial environments, the FCD446225p5 Four-Row Cylindrical Roller Bearings by CHG Bearing boasts a dynamic load rating (Cr) of standard dynamic and a static load threshold (C0r) of standard static. The optimized internal raceway geometry balances stress distribution, mitigating edge loading even when operating under peak mechanical stresses.
Quality starts with raw material selection: CHG Bearing crafts FCD446225p5 inner and outer rings from high-purity High-Quality Chrome Steel (GCr15/100Cr6). Our raw billets undergo vacuum degassing and secondary ESR (electroslag remelting) processes to drastically eliminate non-metallic sulfide and oxide inclusions, elevating subsurface contact fatigue resistance.
As standard production, CHG Bearing subjects FCD446225p5 to precision bainite or martensite quenching, offering dimensional stability up to 120°C (248°F). For high-heat processing equipment, CHG Bearing also supplies custom S0 (150°C), S1 (200°C), or S2 (250°C) stabilization heat treatments upon request to prevent residual austenite transformation.
Beyond standard alloy steel, CHG Bearing can customize the FCD446225p5 Four-Row Cylindrical Roller Bearings using AISI 440C stainless steel, black oxide coating, zinc-nickel plating, or hybrid ceramic (Si3N4) balls for applications involving chemical exposure, marine salt fog, or galvanic current hazards.
