Manufactured by CHG Bearing, the 109FC81580 is a precision Four-Row Cylindrical Roller Bearings. Key dimensional parameters include a 545 mm bore diameter, a 810 mm outer diameter, and a 580 mm overall width. This component is designed to meet standard load requirements and ensure consistent operational performance. For comprehensive technical evaluation, please explore the detailed specifications, dimensional data, product images, and CAD drawings provided below. A complete PDF data sheet is also readily available for direct download to support your engineering and procurement needs.
109FC81580 - Four-Row Cylindrical Roller Bearings
Technical Specifications
| Overview | |
|---|---|
| Part Number | 109FC81580 |
| Brand | CHG® |
| Characteristics | |
| Bearing Type | Four Row Cylindrical Roller Bearing |
| Number of Rows | Four Row |
| Tolerance Class | P0 |
| Dimensions | |
| Bore Diameter (d) | 545 mm |
| Width (B) | 580 mm |
| Outer Diameter (D) | 810 mm |
| Bore Diameter Tolerance | -0.050 – 0 mm |
| Outside Diameter Tolerance | -0.10 – 0 mm |
| Width Tolerance | -1.0 – 0 mm |
| Enveloping Circle Diameter Fw | 614 mm |
| Inner Ring Chamfer | 6 min mm |
| Outer Ring Chamfer | 6 min mm |
| Performance | |
| Basic Dynamic Load Rating C (kN) | 13500 kN |
| Basic Static Load Rating C0 (kN) | 33400 kN |
| Material | |
| Mass (kg) | 1090 kg |
| Ring Material | Case-Hardened Steel |
| Rolling Element Material | Case-Hardened Steel |
| Cage Material | Grade 45 Steel |
| Lubrication Groove Width | 24 mm |
| Lubrication Holes (qty × Ø mm) | 10 × Ø10 |

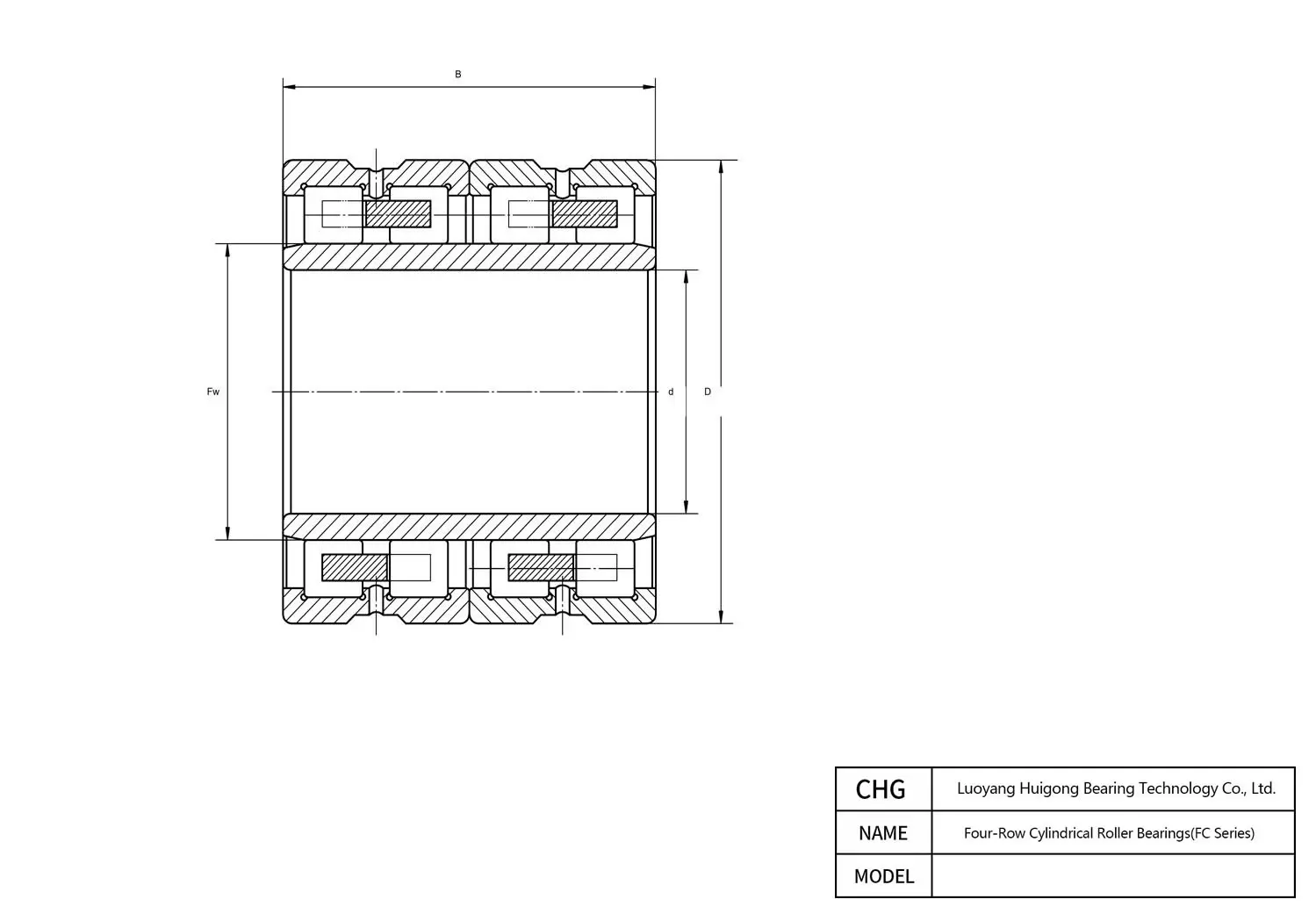

109FC81580 810 mm 545 mm 614 mm 580 mm Frequently Asked Questions about 109FC81580 Four-Row Cylindrical Roller Bearings
Find key technical answers regarding dimensions, specifications, and replacement options for this model.
Yes, 100% of 109FC81580 Four-Row Cylindrical Roller Bearings leaving CHG Bearing production lines are subjected to multi-frequency Anderometer sound testing. All units satisfy baseline Z1V1 levels, with dedicated quiet-running electric motor quality (EMQ) lots certified to Z2V2 and Z3V3 standards for silent machinery integration.
To extend the trouble-free lifespan of CHG Bearing 109FC81580, preventive maintenance routines should monitor operating housing temperature (normally maintaining below 70°C) and conduct regular vibration FFT analysis to identify early raceway micro-pitting before unexpected line halts occur.
Sourcing 109FC81580 directly from CHG Bearing eliminates intermediate brokerage markups while granting you factory-direct engineering backup, rigorous ISO-certified quality assurance, competitive volume wholesale pricing, and dependable supply chain stability for Four-Row Cylindrical Roller Bearings.
The CHG Bearing 109FC81580 is rated for limiting speeds up to standard rated RPM under forced oil-mist or circulating oil lubrication regimes. When lubricated with factory-filled synthetic high-speed grease, safe continuous velocity is maintained at approximately 75% to 85% of the maximum nominal limit, preventing thermal runaway.
