Manufactured by CHG Bearing, the NNU4921 is a precision Double Row Cylindrical Roller Bearings. Key dimensional parameters include a 105 mm bore diameter, a 145 mm outer diameter, and a 40 mm overall width. This component is designed to meet standard load requirements and ensure consistent operational performance. For comprehensive technical evaluation, please explore the detailed specifications, dimensional data, product images, and CAD drawings provided below. A complete PDF data sheet is also readily available for direct download to support your engineering and procurement needs.

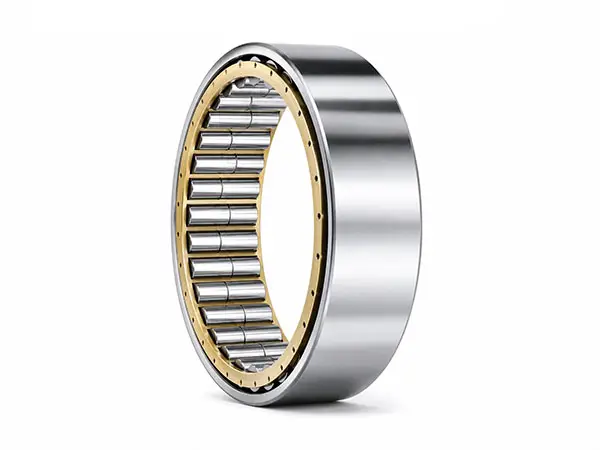

NNU4921 - Double Row Cylindrical Roller Bearings
Technical Specifications
| Overview | |
|---|---|
| Part Number | NNU4921 |
| Brand | CHG® |
| Characteristics | |
| Bearing Type | Double Row Cylindrical Roller Bearing |
| Number of Rows | Double Row |
| Tolerance Class | P0 |
| Dimensions | |
| Bore Diameter (d) | 105 mm |
| Width (B) | 40 mm |
| Outer Diameter (D) | 145 mm |
| Bore Diameter Tolerance | -0.020 – 0 mm |
| Outside Diameter Tolerance | -0.018 – 0 mm |
| Width Tolerance | -0.25 – 0 mm |
| Enveloping Circle Diameter Fw | 118 mm |
| Inner Ring Chamfer | 1.1 min mm |
| Outer Ring Chamfer | 1.1 min mm |
| Performance | |
| Basic Dynamic Load Rating C (kN) | 157 kN |
| Basic Static Load Rating C0 (kN) | 306 kN |
| Material | |
| Mass (kg) | 2 kg |
| Ring Material | Bearing Steel |
| Rolling Element Material | Bearing Steel |
| Cage Material | Brass |

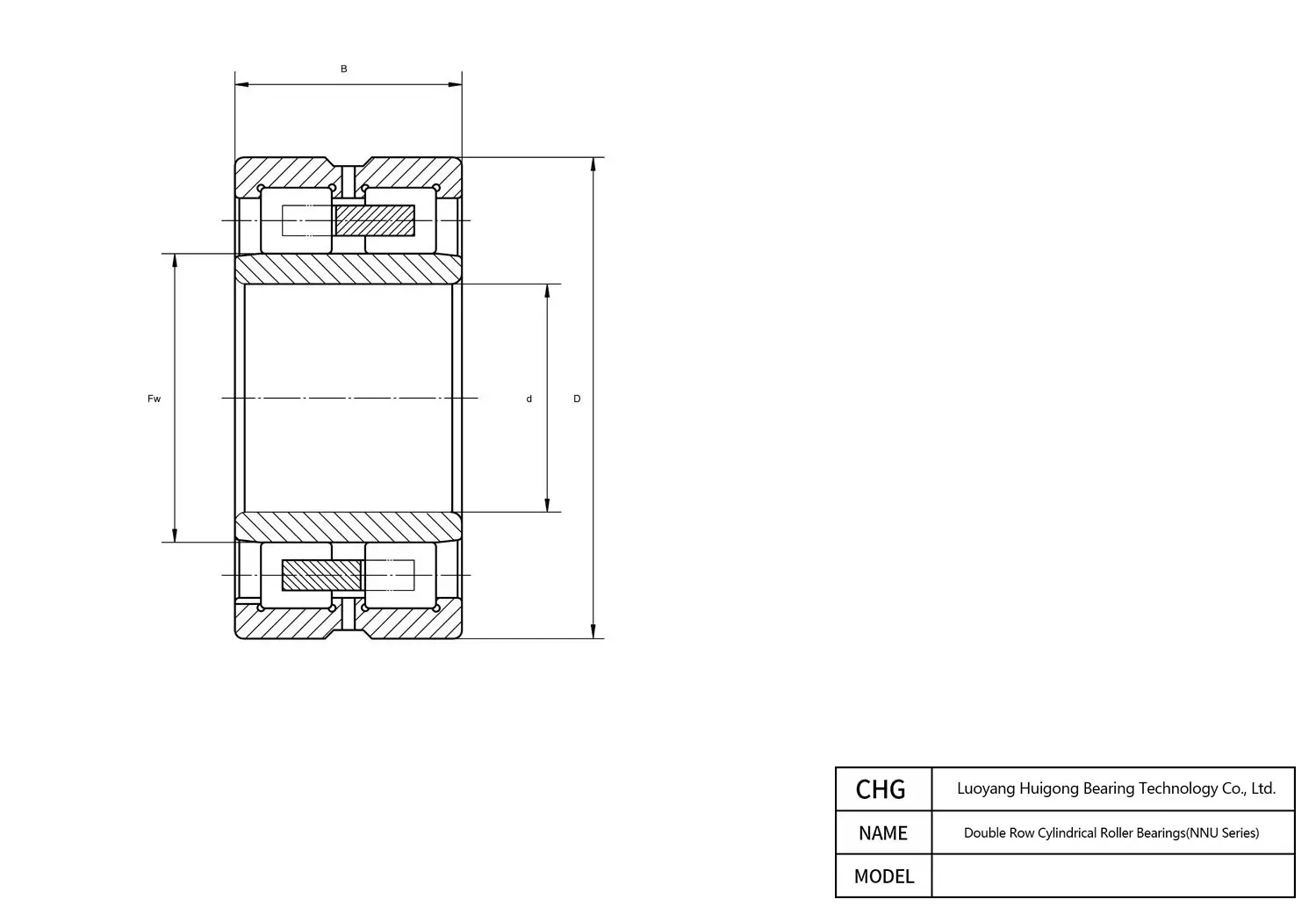

NNU4921 145 mm 105 mm 118 mm 40 mm Frequently Asked Questions about NNU4921 Double Row Cylindrical Roller Bearings
Find key technical answers regarding dimensions, specifications, and replacement options for this model.
Every production batch of CHG Bearing NNU4921 Double Row Cylindrical Roller Bearings comes with complete traceability. Upon shipment, CHG Bearing can provide EN 10204 3.1 Material Test Reports (MTR), Certificates of Conformity (CoC), spectral chemical composition analysis, and dimensional inspection sheets.
Each NNU4921 produced in CHG Bearing manufacturing facilities features accurately profiled corner chamfers complying with DIN 5412 / ISO standard corner radii. When designing mating shafts and housing shoulders, machining an undercut or fillet radius strictly within the inner ring clearance limit (105 mm bore side) ensures perfect planar contact without edge binding.
Absolutely. The CHG Bearing NNU4921 Double Row Cylindrical Roller Bearings is a 1:1 direct interchange for renowned brands, matching part numbers: SKF NNU4921, FAG NNU4921, NSK NNU4921. It shares identical envelope boundary dimensions, load capacities, and shaft fits, allowing instant drop-in replacement without retrofitting your machinery.
For international ocean and air freight, CHG Bearing packs NNU4921 with industrial VCI anti-corrosion barrier wrapping, sealed polybags, individual cartons, and fumigated ocean-worthy wooden crates. This multi-layer barrier guarantees rust-free storage for a minimum shelf life of 24 to 36 months.
