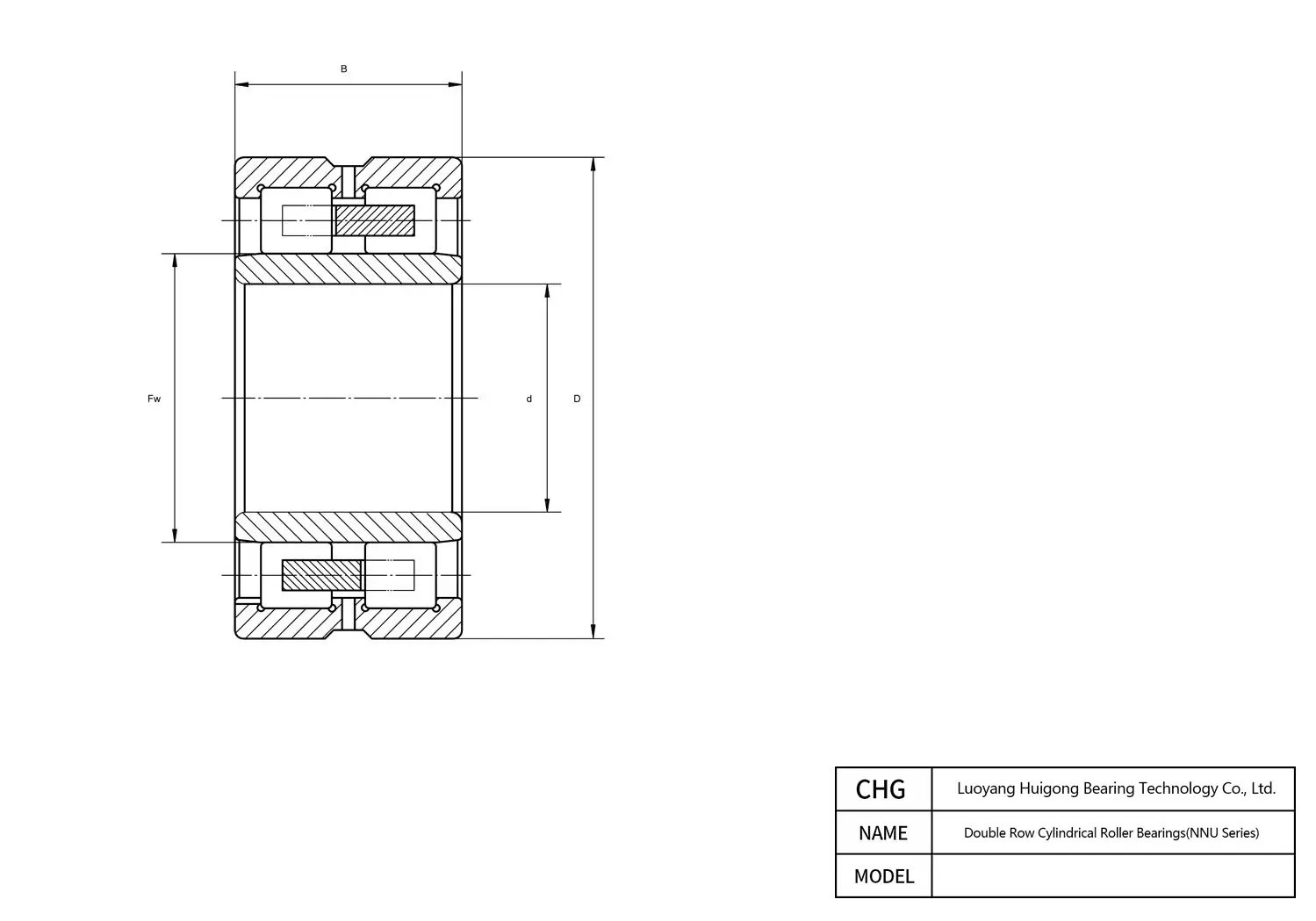

Manufactured by CHG Bearing, the NNU3030K is a precision Double Row Cylindrical Roller Bearings. Key dimensional parameters include a 150 mm bore diameter, a 225 mm outer diameter, and a 56 mm overall width. This component is designed to meet standard load requirements and ensure consistent operational performance. For comprehensive technical evaluation, please explore the detailed specifications, dimensional data, product images, and CAD drawings provided below. A complete PDF data sheet is also readily available for direct download to support your engineering and procurement needs.
NNU3030K - Double Row Cylindrical Roller Bearings
Technical Specifications
| Overview | |
|---|---|
| Part Number | NNU3030K |
| Brand | CHG® |
| Characteristics | |
| Bearing Type | Double Row Cylindrical Roller Bearing |
| Number of Rows | Double Row |
| Tolerance Class | P0 |
| Dimensions | |
| Bore Diameter (d) | 150 mm |
| Width (B) | 56 mm |
| Outer Diameter (D) | 225 mm |
| Bore Diameter Tolerance | -0.12 – -0.10 mm |
| Outside Diameter Tolerance | -0.030 – 0 mm |
| Width Tolerance | -0.20 – 0 mm |
| Enveloping Circle Diameter Fw | 172 mm |
| Inner Ring Chamfer | 2.1 min mm |
| Outer Ring Chamfer | 2.1 min mm |
| Performance | |
| Basic Dynamic Load Rating C (kN) | 354 kN |
| Basic Static Load Rating C0 (kN) | 607 kN |
| Material | |
| Mass (kg) | 7.71 kg |
| Ring Material | Bearing Steel |
| Rolling Element Material | Bearing Steel |
| Cage Material | Brass |
NNU3030K 225 mm 150 mm 172 mm 56 mm Frequently Asked Questions about NNU3030K Double Row Cylindrical Roller Bearings
Find key technical answers regarding dimensions, specifications, and replacement options for this model.
Standard batches of CHG Bearing NNU3030K conform strictly to ISO Class Normal (ABEC-1). For high-precision machine tool spindles, gearboxes, or robotics requiring tighter runouts, CHG Bearing can provide custom batches graded to ISO Class 6 (P6/ABEC-3) or ISO Class 5 (P5/ABEC-5) with 100% micrometer verification.
Built for demanding industrial environments, the NNU3030K Double Row Cylindrical Roller Bearings by CHG Bearing boasts a dynamic load rating (Cr) of standard dynamic and a static load threshold (C0r) of standard static. The optimized internal raceway geometry balances stress distribution, mitigating edge loading even when operating under peak mechanical stresses.
Sourcing NNU3030K directly from CHG Bearing eliminates intermediate brokerage markups while granting you factory-direct engineering backup, rigorous ISO-certified quality assurance, competitive volume wholesale pricing, and dependable supply chain stability for Double Row Cylindrical Roller Bearings.
Each NNU3030K produced in CHG Bearing manufacturing facilities features accurately profiled corner chamfers complying with DIN 5412 / ISO standard corner radii. When designing mating shafts and housing shoulders, machining an undercut or fillet radius strictly within the inner ring clearance limit (150 mm bore side) ensures perfect planar contact without edge binding.
