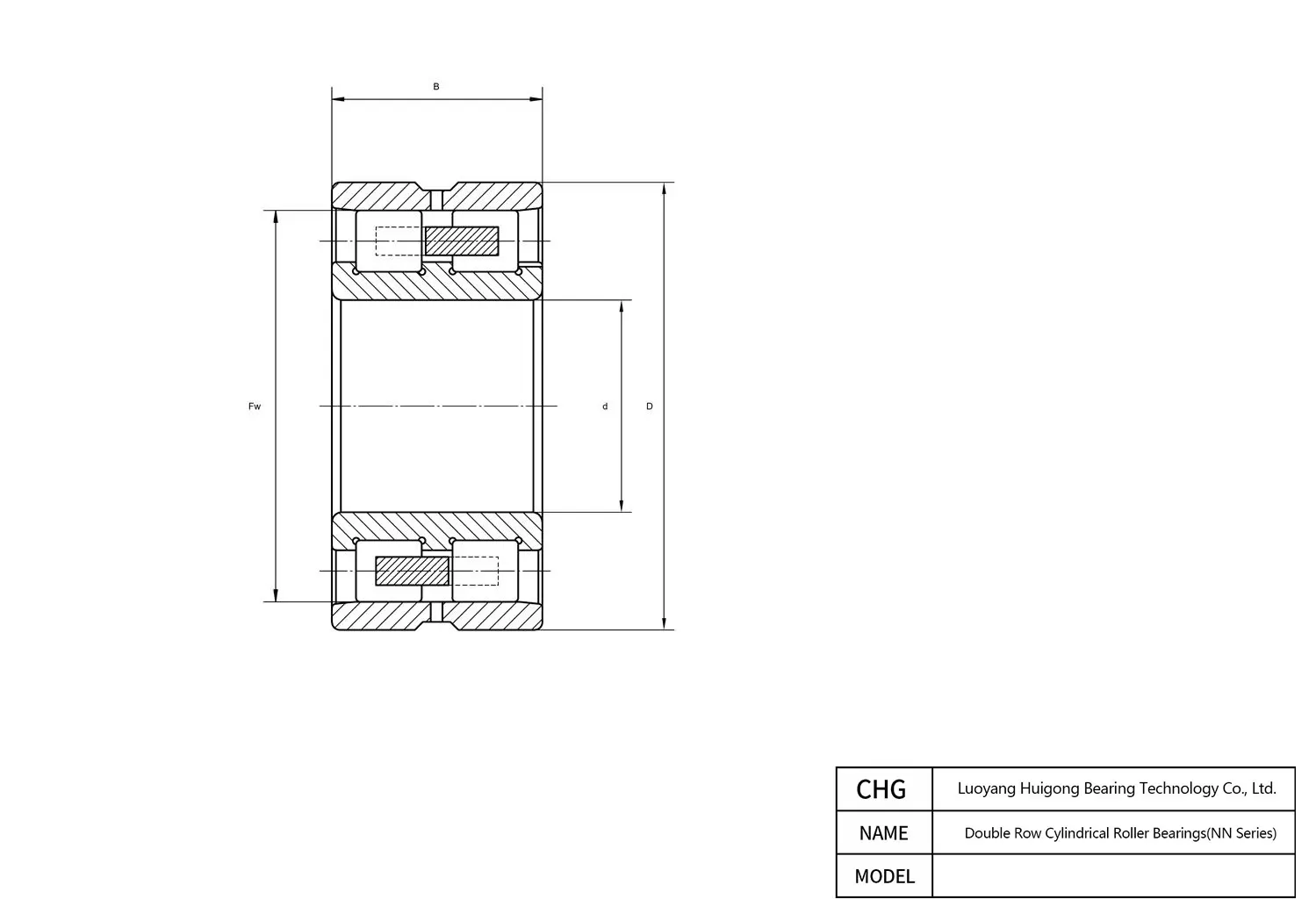

Manufactured by CHG Bearing, the NN3126/P5 is a precision Double Row Cylindrical Roller Bearings. Key dimensional parameters include a 130 mm bore diameter, a 210 mm outer diameter, and a 64 mm overall width. This component is designed to meet standard load requirements and ensure consistent operational performance. For comprehensive technical evaluation, please explore the detailed specifications, dimensional data, product images, and CAD drawings provided below. A complete PDF data sheet is also readily available for direct download to support your engineering and procurement needs.

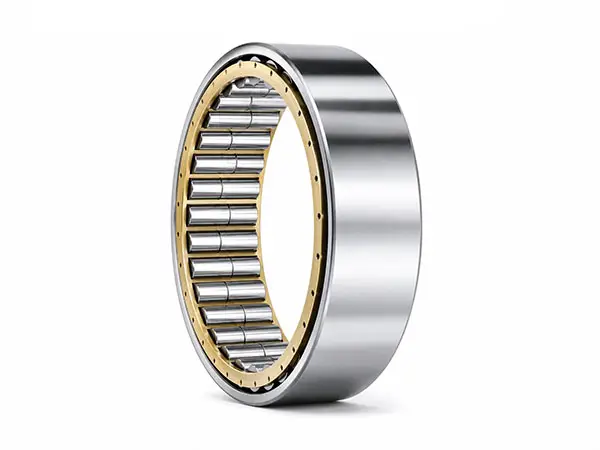

NN3126/P5 - Double Row Cylindrical Roller Bearings
Technical Specifications
| Overview | |
|---|---|
| Part Number | NN3126/P5 |
| Brand | CHG® |
| Characteristics | |
| Bearing Type | Double Row Cylindrical Roller Bearing |
| Number of Rows | Double Row |
| Tolerance Class | P5 |
| Dimensions | |
| Bore Diameter (d) | 130 mm |
| Width (B) | 64 mm |
| Outer Diameter (D) | 210 mm |
| Bore Diameter Tolerance | -0.013 – 0 mm |
| Outside Diameter Tolerance | -0.015 – 0 mm |
| Width Tolerance | -0.30 – 0 mm |
| Enveloping Circle Diameter Fw | 189 mm |
| Inner Ring Chamfer | 2 min mm |
| Outer Ring Chamfer | 2 min mm |
| Performance | |
| Basic Dynamic Load Rating C (kN) | 328 kN |
| Basic Static Load Rating C0 (kN) | 535 kN |
| Material | |
| Mass (kg) | 8.65 kg |
| Ring Material | Bearing Steel |
| Rolling Element Material | Bearing Steel |
| Cage Material | Brass |
NN3126/P5 210 mm 130 mm 64 mm 189 mm Frequently Asked Questions about NN3126/P5 Double Row Cylindrical Roller Bearings
Find key technical answers regarding dimensions, specifications, and replacement options for this model.
Standard batches of CHG Bearing NN3126/P5 conform strictly to ISO Class Normal (ABEC-1). For high-precision machine tool spindles, gearboxes, or robotics requiring tighter runouts, CHG Bearing can provide custom batches graded to ISO Class 6 (P6/ABEC-3) or ISO Class 5 (P5/ABEC-5) with 100% micrometer verification.
As standard production, CHG Bearing subjects NN3126/P5 to precision bainite or martensite quenching, offering dimensional stability up to 120°C (248°F). For high-heat processing equipment, CHG Bearing also supplies custom S0 (150°C), S1 (200°C), or S2 (250°C) stabilization heat treatments upon request to prevent residual austenite transformation.
Yes, 100% of NN3126/P5 Double Row Cylindrical Roller Bearings leaving CHG Bearing production lines are subjected to multi-frequency Anderometer sound testing. All units satisfy baseline Z1V1 levels, with dedicated quiet-running electric motor quality (EMQ) lots certified to Z2V2 and Z3V3 standards for silent machinery integration.
Following standard ISO 281 fatigue calculation guidelines, the nominal rating life (L10) of CHG Bearing NN3126/P5 correlates its dynamic capacity (standard dynamic) with equivalent dynamic loads. In controlled industrial settings with proper contamination-free filtration, field data confirms continuous operational longevity exceeding 20,000 to 50,000 service hours.
