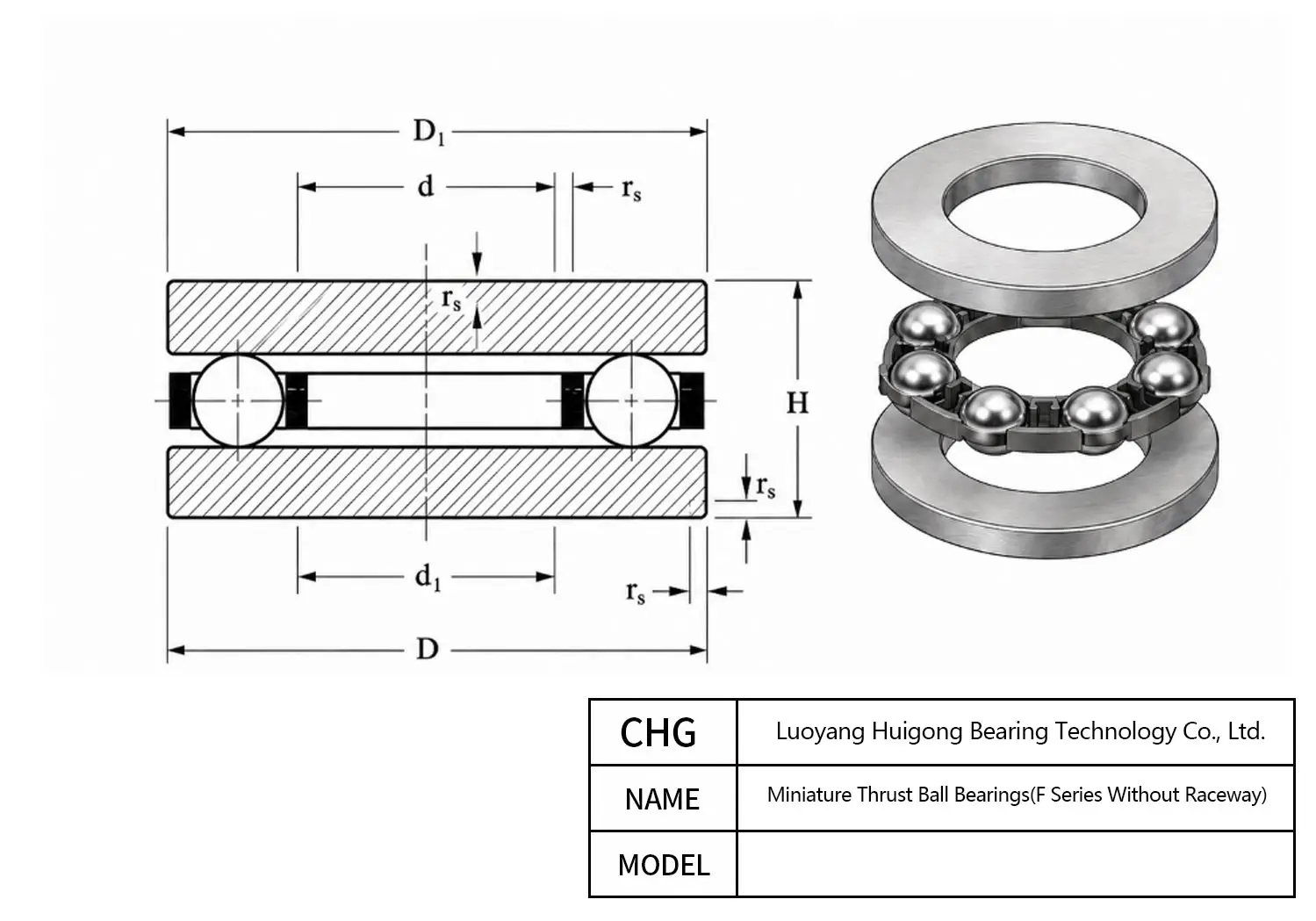

Manufactured by CHG Bearing, the F5-11 is a precision Miniature Thrust Ball Bearings. Key dimensional parameters include a 5 mm bore diameter, a 11 mm outer diameter, and a 4.5 mm overall width. This component is designed to meet standard load requirements and ensure consistent operational performance. For comprehensive technical evaluation, please explore the detailed specifications, dimensional data, product images, and CAD drawings provided below. A complete PDF data sheet is also readily available for direct download to support your engineering and procurement needs.
F5-11 - Miniature Thrust Ball Bearings
Technical Specifications
| Overview | |
|---|---|
| Part Number | F5-11 |
| Raceway Design | Without Raceway |
| Dimensions | |
| Bore Diameter (d) | 5 mm |
| Width (B) | 4.5 mm |
| Outer Diameter (D) | 11 mm |
| Radius rs min | 0.15 mm |
| Outer Ring Bore d1 | 5 mm |
| Inner Ring Outside D1 | 11 mm |
| Performance | |
| Dynamic Axial Load Ca (N) | 284 N |
| Static Axial Load C0a (N) | 284 N |
| Internal Design & Weight | |
| Cage Type | TD |
| Ball Qty. Z | 7 |
| Ball Size Dw | 1.588 mm |
| Reference Data | |
| Reference Weight (g) | 2.4 g |
| Stainless Suffix | H |
F5-11 11 mm 5 mm 11 mm 5 mm Frequently Asked Questions about F5-11 Miniature Thrust Ball Bearings
Find key technical answers regarding dimensions, specifications, and replacement options for this model.
Engineered according to international ISO boundary plans, CHG Bearing supplies F5-11 with a precision bore diameter (d) of 5 mm, an outside diameter (D) of 11 mm, and a nominal ring width (B) of 4.5 mm. This configuration yields an effective cross-sectional wall thickness of 3.0 mm and an envelope ratio (D/d) of 2.2, delivering compact rigidity for OEM machinery housings.
Model F5-11 is manufactured by CHG Bearing in standard Normal clearance (CN) for ambient temperature transmission, and C3 or C4 clearance for heavy duty applications. C3 clearance compensates for radial shrinkage caused by tight shaft press-fits (bore 5 mm) and steep thermal gradients between inner and outer rings.
The Open Type engineered for F5-11 by CHG Bearing utilizes precision non-contact metal shields or reinforced NBR/FKM contact lip seals. This barrier prevents particulate ingress, washdown fluids, and abrasive dust from reaching the raceways while eliminating grease leakage under centrifugal forces.
Standard batches of CHG Bearing F5-11 conform strictly to ISO Class Normal (ABEC-1). For high-precision machine tool spindles, gearboxes, or robotics requiring tighter runouts, CHG Bearing can provide custom batches graded to ISO Class 6 (P6/ABEC-3) or ISO Class 5 (P5/ABEC-5) with 100% micrometer verification.
