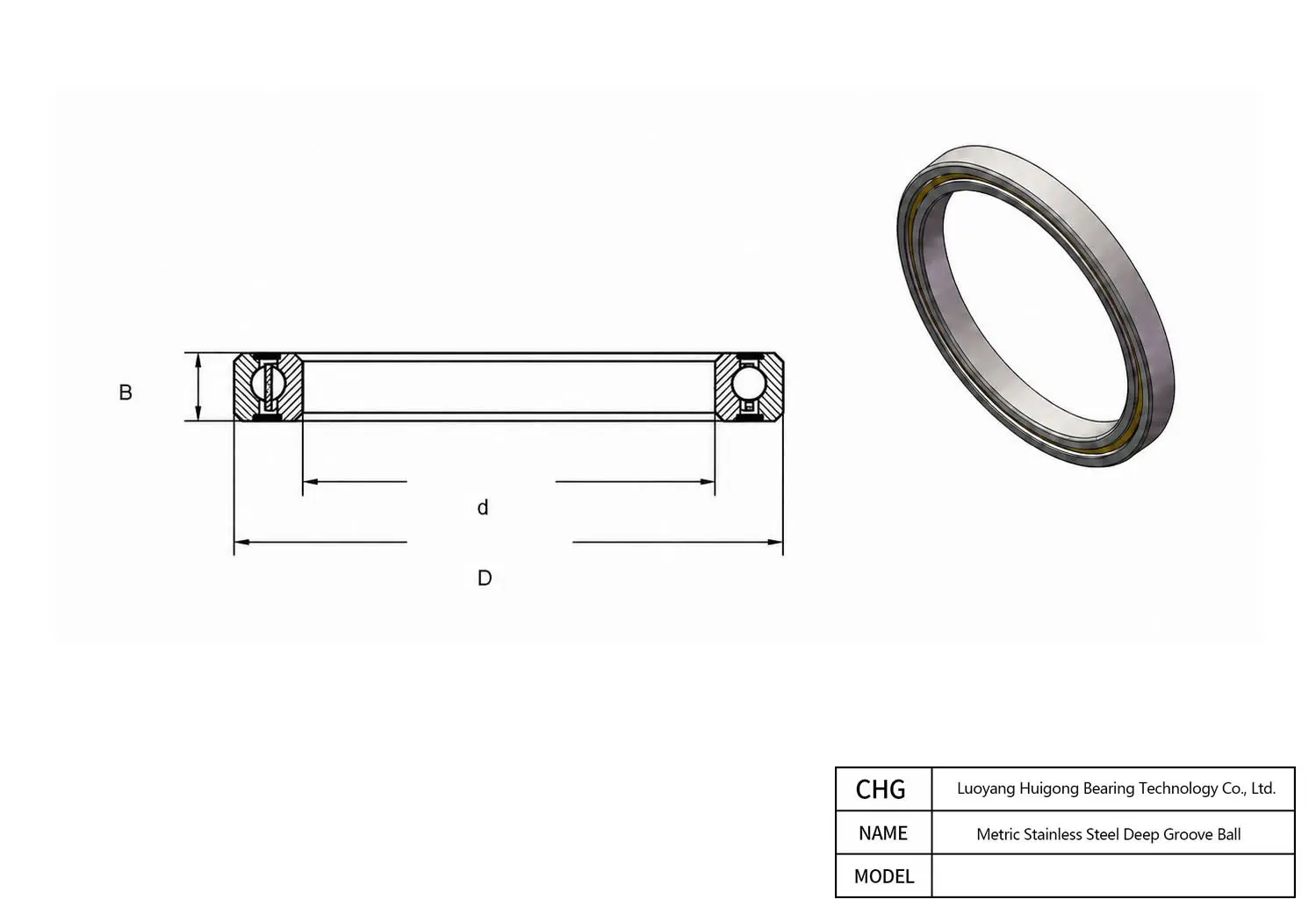

Manufactured by CHG Bearing, the 6001H is a precision Metric Stainless Steel Deep Groove Ball Bearings. Key dimensional parameters include a 12 mm bore diameter, a 28 mm outer diameter, and a 8 mm overall width. This component is designed to meet standard load requirements and ensure consistent operational performance. For comprehensive technical evaluation, please explore the detailed specifications, dimensional data, product images, and CAD drawings provided below. A complete PDF data sheet is also readily available for direct download to support your engineering and procurement needs.

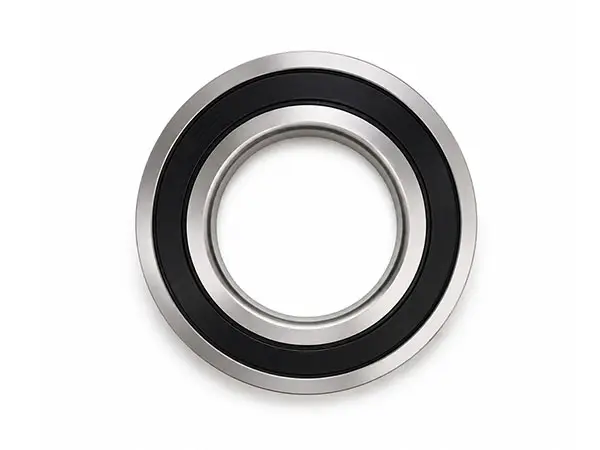

6001H - Metric Stainless Steel Deep Groove Ball Bearings
Technical Specifications
| Overview | |
|---|---|
| Part Number | 6001H |
| SAE52100 Option | Yes |
| Dimensions | |
| Bore Diameter (d) | 12 mm |
| Width (B) | 8 mm |
| Outer Diameter (D) | 28 mm |
| Radius rs min | 0.3 mm |
| Performance | |
| Dynamic Load Cr (N) | 4340 N |
| Static Load C0r (N) | 1910 N |
| Grease Speed (x1000 rpm) | 27 x1000 rpm |
| Oil Speed (x1000 rpm) | 32 x1000 rpm |
| Design Configurations | |
| Open Model | 6001H |
| ZZ Suffix | ZZ |
| 2RS Suffix | 2RS |
| 2RU Suffix | 2RU |
| TTS Suffix | TTS |
| Internal Design & Weight | |
| Cage Type | J,TW |
| Ball Qty. Z | 8 |
| Ball Size Dw | 4.762 mm |
| Shielded Weight (g) | 22 g |
6001H 28 mm 12 mm 8 mm Frequently Asked Questions about 6001H Metric Stainless Steel Deep Groove Ball Bearings
Find key technical answers regarding dimensions, specifications, and replacement options for this model.
Following standard ISO 281 fatigue calculation guidelines, the nominal rating life (L10) of CHG Bearing 6001H correlates its dynamic capacity (standard dynamic) with equivalent dynamic loads. In controlled industrial settings with proper contamination-free filtration, field data confirms continuous operational longevity exceeding 20,000 to 50,000 service hours.
As standard production, CHG Bearing subjects 6001H to precision bainite or martensite quenching, offering dimensional stability up to 120°C (248°F). For high-heat processing equipment, CHG Bearing also supplies custom S0 (150°C), S1 (200°C), or S2 (250°C) stabilization heat treatments upon request to prevent residual austenite transformation.
Built for demanding industrial environments, the 6001H Metric Stainless Steel Deep Groove Ball Bearings by CHG Bearing boasts a dynamic load rating (Cr) of standard dynamic and a static load threshold (C0r) of standard static. The optimized internal raceway geometry balances stress distribution, mitigating edge loading even when operating under peak mechanical stresses.
Standard batches of CHG Bearing 6001H conform strictly to ISO Class Normal (ABEC-1). For high-precision machine tool spindles, gearboxes, or robotics requiring tighter runouts, CHG Bearing can provide custom batches graded to ISO Class 6 (P6/ABEC-3) or ISO Class 5 (P5/ABEC-5) with 100% micrometer verification.
