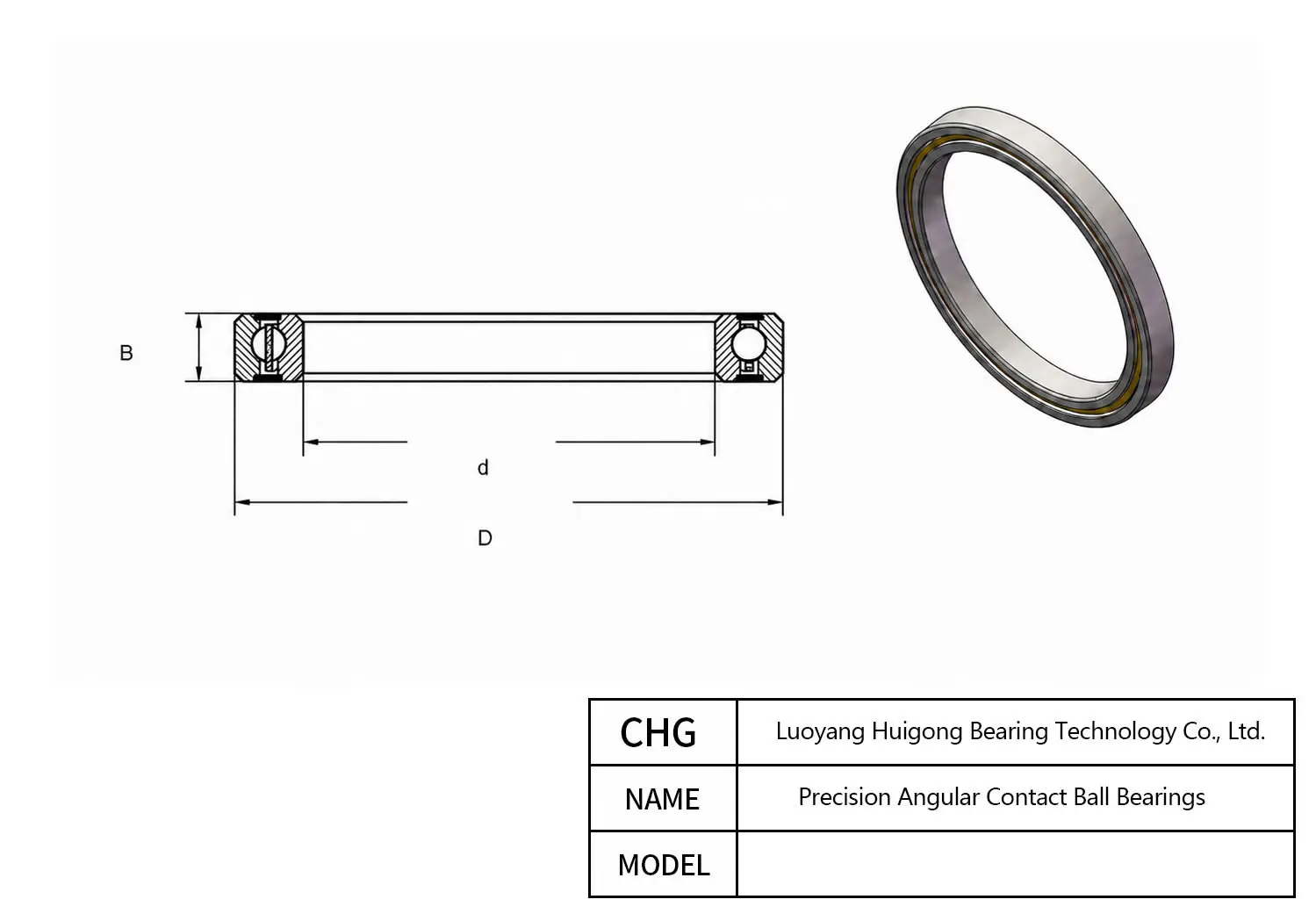

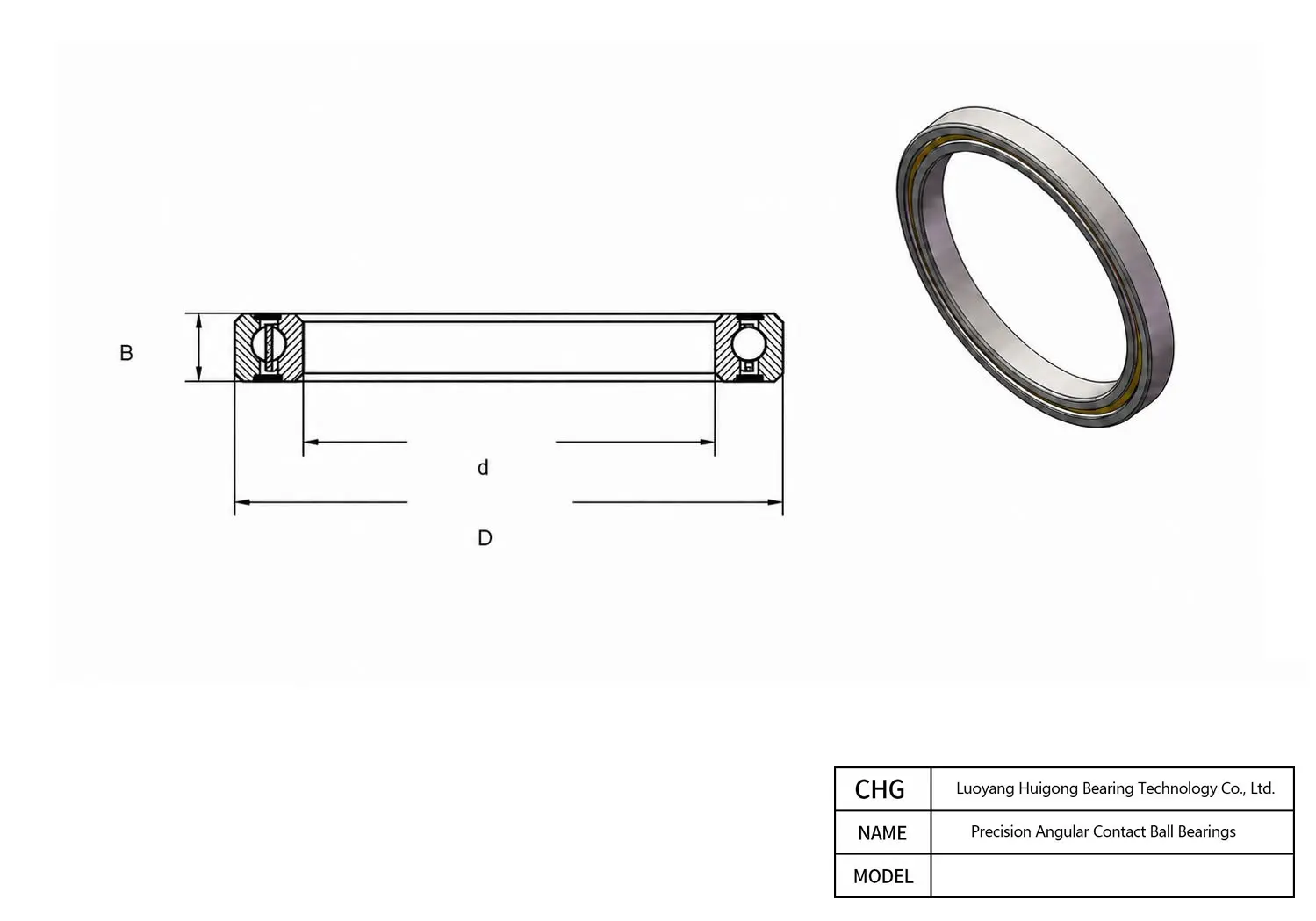

Manufactured by CHG Bearing, the 718/530P4 is a precision Angular Contact Ball Bearings（718 / 719 SERIES）. Key dimensional parameters include a 530 mm bore diameter, a 650 mm outer diameter, and a 56 mm overall width. This component is designed to meet standard load requirements and ensure consistent operational performance. For comprehensive technical evaluation, please explore the detailed specifications, dimensional data, product images, and CAD drawings provided below. A complete PDF data sheet is also readily available for direct download to support your engineering and procurement needs.

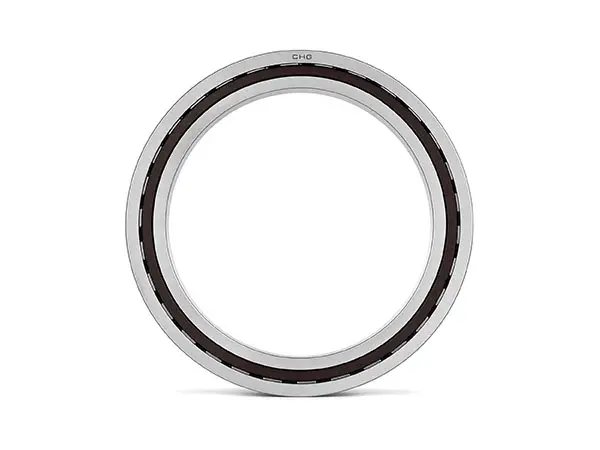

718/530P4 - Angular Contact Ball Bearings（718 / 719 SERIES）
Technical Specifications
| Overview | |
|---|---|
| Part Number | 718/530P4 |
| Brand | CHG® |
| Characteristics | |
| Bearing Type | Angular Contact Ball Bearing |
| Series | 718 |
| Seal Type | Open / Contact Seal Options |
| Load Direction | Radial |
| Row Configuration | Single Row |
| Dimensions | |
| Bore Diameter (d) | 530 mm |
| Width (B) | 56 mm |
| Outer Diameter (D) | 650 mm |
| Bore Diameter Tolerance | / mm |
| Outside Diameter Tolerance | / mm |
| Width Tolerance | / mm |
| Performance | |
| Basic Dynamic Radial Load Rating Cr (kN) | 369 kN |
| Basic Static Radial Load Rating C0r (kN) | 837 kN |
| Limiting Speed – Grease (r/min) | 1100 r/min |
| Limiting Speed – Oil (r/min) | 1600 (r/min) |
| Material | |
| Mass (kg) | 39.5 kg |
| Ring Material | Stainless Steel / Bearing Steel |
| Cage Material | Brass / PEEK / Polyimide / Phenolic Resin Fabric Laminate |
| Ball Material | Stainless Steel / Bearing Steel / Ceramic |
| Operating Temperature Range (°C) | -50 to +100 °C |
| Precision Class | P4 |
| Radial Internal Clearance | 0.08-0.210 mm |
718/530P4 650 mm 530 mm 56 mm Frequently Asked Questions about 718/530P4 Angular Contact Ball Bearings（718 / 719 SERIES）
Find key technical answers regarding dimensions, specifications, and replacement options for this model.
As standard production, CHG Bearing subjects 718/530P4 to precision bainite or martensite quenching, offering dimensional stability up to 120°C (248°F). For high-heat processing equipment, CHG Bearing also supplies custom S0 (150°C), S1 (200°C), or S2 (250°C) stabilization heat treatments upon request to prevent residual austenite transformation.
To match diverse operational dynamics, CHG Bearing supplies 718/530P4 with multiple cage configurations: high-strength pressed steel ribbon cages for standard duty, solid machined brass cages (M/CA) for heavy vibration and shock loads, or lightweight glass-fiber reinforced polyamide cages (TN9/TVP) for high acceleration and ultra-low noise.
To safeguard CHG Bearing 718/530P4 against fretting wear and false brinelling during transport or vibration, assemble mating surfaces (530 mm x 650 mm) using anti-fretting mounting paste. Maintaining strict alignment and avoiding prolonged static vibration will preserve raceway polish.
Yes, 100% of 718/530P4 Angular Contact Ball Bearings（718 / 719 SERIES） leaving CHG Bearing production lines are subjected to multi-frequency Anderometer sound testing. All units satisfy baseline Z1V1 levels, with dedicated quiet-running electric motor quality (EMQ) lots certified to Z2V2 and Z3V3 standards for silent machinery integration.
