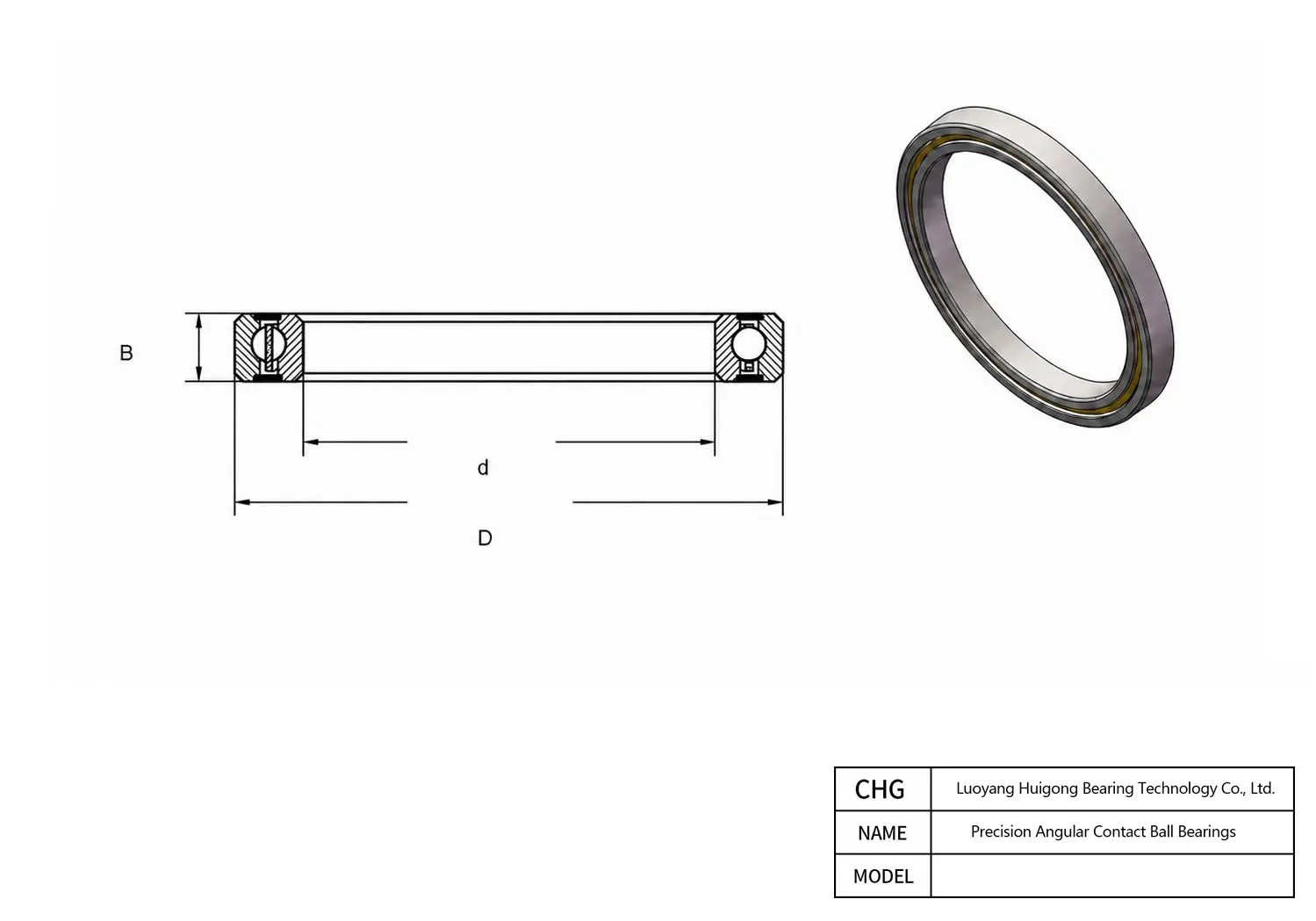

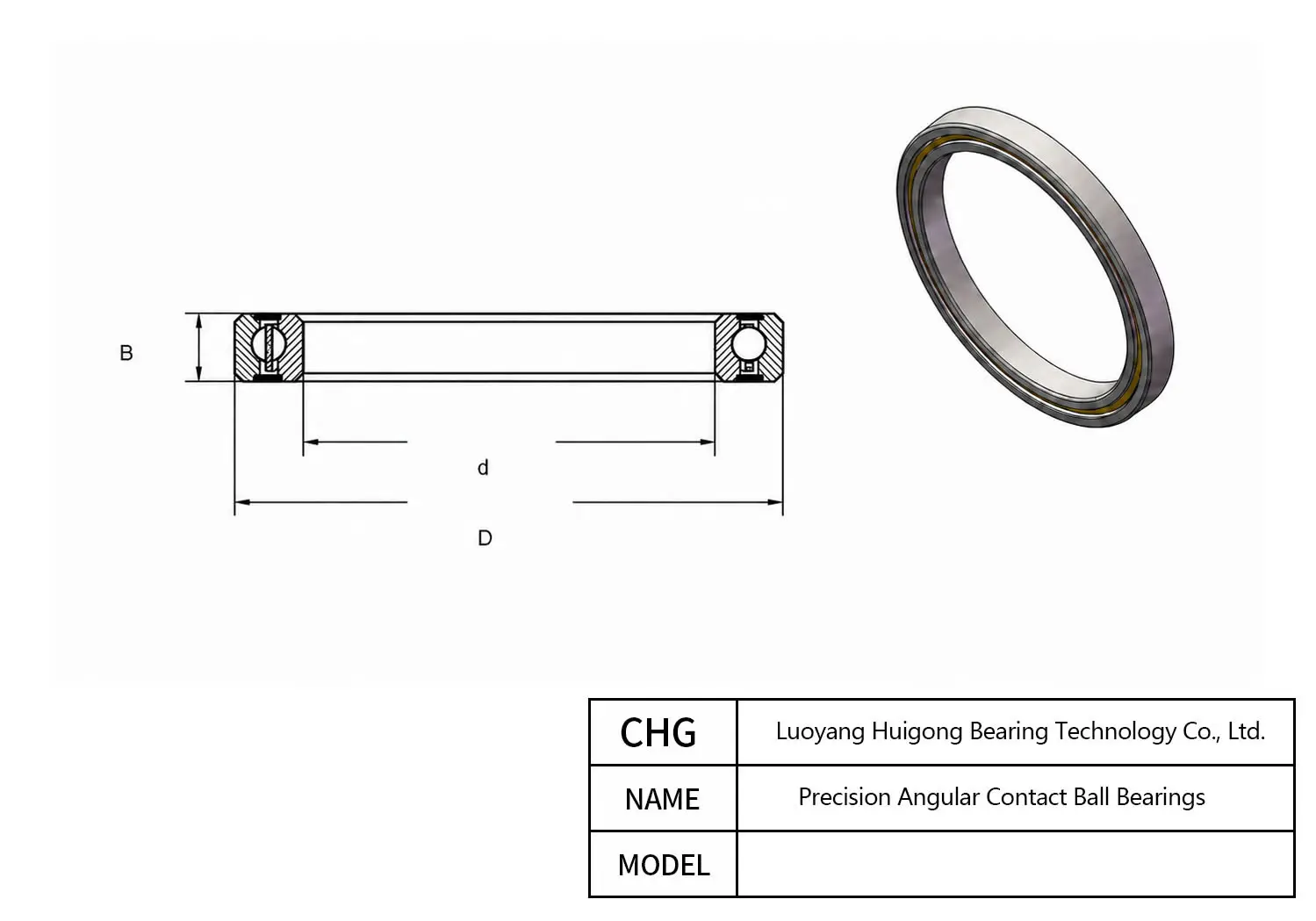

Manufactured by CHG Bearing, the 71809P4 is a precision Angular Contact Ball Bearings（718 / 719 SERIES）. Key dimensional parameters include a 45 mm bore diameter, a 58 mm outer diameter, and a 7 mm overall width. This component is designed to meet standard load requirements and ensure consistent operational performance. For comprehensive technical evaluation, please explore the detailed specifications, dimensional data, product images, and CAD drawings provided below. A complete PDF data sheet is also readily available for direct download to support your engineering and procurement needs.

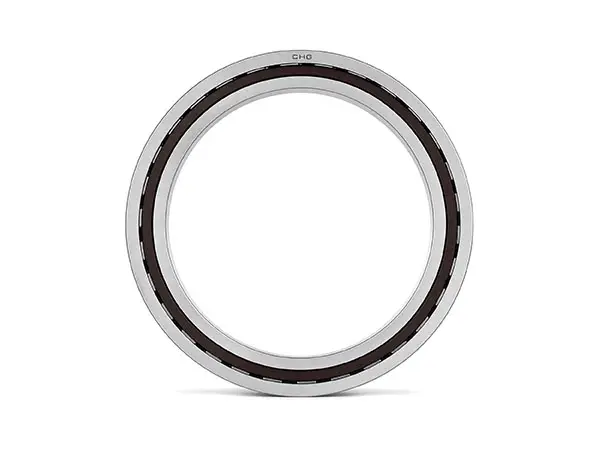

71809P4 - Angular Contact Ball Bearings（718 / 719 SERIES）
Technical Specifications
| Overview | |
|---|---|
| Part Number | 71809P4 |
| Brand | CHG® |
| Characteristics | |
| Bearing Type | Angular Contact Ball Bearing |
| Series | 718 |
| Seal Type | Open / Contact Seal Options |
| Load Direction | Radial |
| Row Configuration | Single Row |
| Dimensions | |
| Bore Diameter (d) | 45 mm |
| Width (B) | 7 mm |
| Outer Diameter (D) | 58 mm |
| Bore Diameter Tolerance | -0.006-0 mm |
| Outside Diameter Tolerance | -0.007-0 mm |
| Width Tolerance | -0.12-0 mm |
| Performance | |
| Basic Dynamic Radial Load Rating Cr (kN) | 4.9 kN |
| Basic Static Radial Load Rating C0r (kN) | 6.7 kN |
| Limiting Speed – Grease (r/min) | 20000 r/min |
| Limiting Speed – Oil (r/min) | 34000 (r/min) |
| Material | |
| Mass (kg) | 0.04 kg |
| Ring Material | Stainless Steel / Bearing Steel |
| Cage Material | Brass / PEEK / Polyimide / Phenolic Resin Fabric Laminate |
| Ball Material | Stainless Steel / Bearing Steel / Ceramic |
| Operating Temperature Range (°C) | -50 to +100 °C |
| Precision Class | P4 |
| Radial Internal Clearance | 0.006-0.023 mm |
71809P4 58 mm 45 mm 7 mm Frequently Asked Questions about 71809P4 Angular Contact Ball Bearings（718 / 719 SERIES）
Find key technical answers regarding dimensions, specifications, and replacement options for this model.
Yes, 100% of 71809P4 Angular Contact Ball Bearings（718 / 719 SERIES） leaving CHG Bearing production lines are subjected to multi-frequency Anderometer sound testing. All units satisfy baseline Z1V1 levels, with dedicated quiet-running electric motor quality (EMQ) lots certified to Z2V2 and Z3V3 standards for silent machinery integration.
Beyond standard alloy steel, CHG Bearing can customize the 71809P4 Angular Contact Ball Bearings（718 / 719 SERIES） using AISI 440C stainless steel, black oxide coating, zinc-nickel plating, or hybrid ceramic (Si3N4) balls for applications involving chemical exposure, marine salt fog, or galvanic current hazards.
To safeguard CHG Bearing 71809P4 against fretting wear and false brinelling during transport or vibration, assemble mating surfaces (45 mm x 58 mm) using anti-fretting mounting paste. Maintaining strict alignment and avoiding prolonged static vibration will preserve raceway polish.
The CHG Bearing 71809P4 is rated for limiting speeds up to standard rated RPM under forced oil-mist or circulating oil lubrication regimes. When lubricated with factory-filled synthetic high-speed grease, safe continuous velocity is maintained at approximately 75% to 85% of the maximum nominal limit, preventing thermal runaway.
