Manufactured by CHG Bearing, the 61903P4 is a precision Deep Groove Ball Bearings（618 / 619 SERIES）. Key dimensional parameters include a 17 mm bore diameter, a 30 mm outer diameter, and a 7 mm overall width. This component is designed to meet standard load requirements and ensure consistent operational performance. For comprehensive technical evaluation, please explore the detailed specifications, dimensional data, product images, and CAD drawings provided below. A complete PDF data sheet is also readily available for direct download to support your engineering and procurement needs.

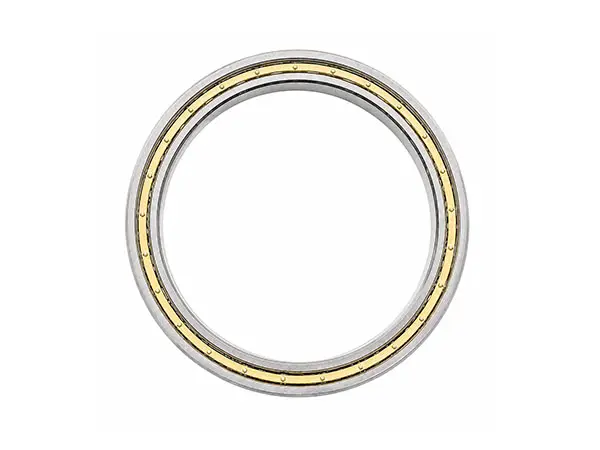

61903P4 - Deep Groove Ball Bearings（618 / 619 SERIES）
Technical Specifications
| Overview | |
|---|---|
| Part Number | 61903P4 |
| Brand | CHG® |
| Characteristics | |
| Bearing Type | Deep Groove Ball Bearing |
| Seal Type | Open / Contact Seal Options |
| Load Direction | Radial |
| Row Configuration | Single Row |
| Dimensions | |
| Bore Diameter (d) | 17 mm |
| Width (B) | 7 mm |
| Outer Diameter (D) | 30 mm |
| Bore Diameter Tolerance | -0.004-0 mm |
| Outside Diameter Tolerance | -0.005-0 mm |
| Width Tolerance | -0.08-0 mm |
| Performance | |
| Basic Dynamic Radial Load Rating Cr (kN) | 4.6 kN |
| Basic Static Radial Load Rating C0r (kN) | 2.55 kN |
| Limiting Speed – Grease (r/min) | 24000 r/min |
| Limiting Speed – Oil (r/min) | 28000 (r/min) |
| Material | |
| Mass (kg) | 0.017 kg |
| Ring Material | Stainless Steel / Bearing Steel |
| Cage Material | Brass / PEEK / Polyimide / Phenolic Resin Fabric Laminate |
| Ball Material | Stainless Steel / Bearing Steel / Ceramic |
| Operating Temperature Range (°C) | -50 to +100 °C |
| Precision Class | P4 |
| Radial Internal Clearance | 0.003-0.018 mm |
61903P4 30 mm 17 mm 7 mm Frequently Asked Questions about 61903P4 Deep Groove Ball Bearings（618 / 619 SERIES）
Find key technical answers regarding dimensions, specifications, and replacement options for this model.
To safeguard CHG Bearing 61903P4 against fretting wear and false brinelling during transport or vibration, assemble mating surfaces (17 mm x 30 mm) using anti-fretting mounting paste. Maintaining strict alignment and avoiding prolonged static vibration will preserve raceway polish.
To ensure optimum performance of CHG Bearing 61903P4 Deep Groove Ball Bearings（618 / 619 SERIES） under general rotational loads, our application engineers advise an inner-ring shaft tolerance of m5 or k5 for the 17 mm bore. For the 30 mm outer ring, an H7 or J7 housing bore fit is recommended to eliminate creep while accommodating normal thermal gradient expansion.

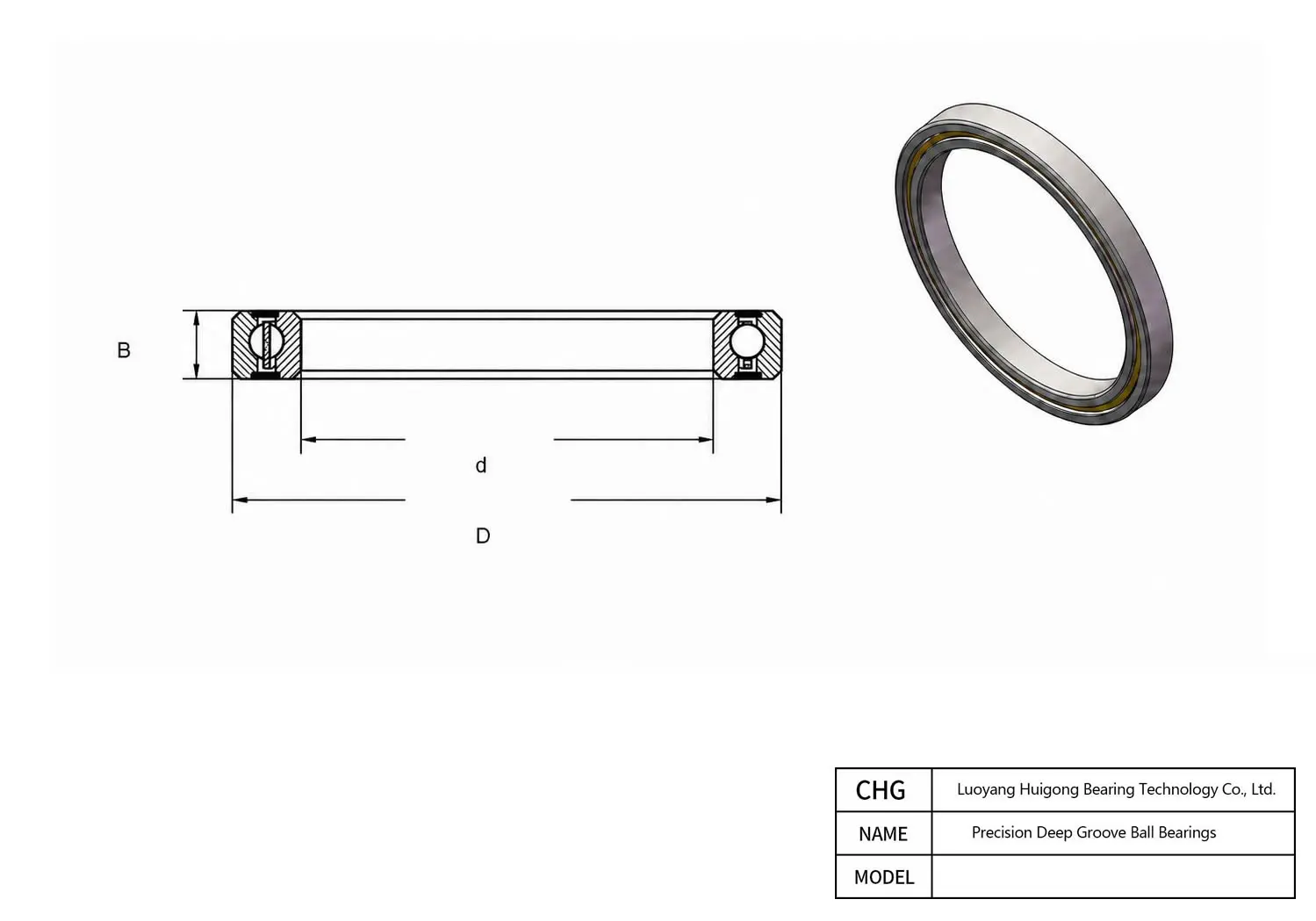

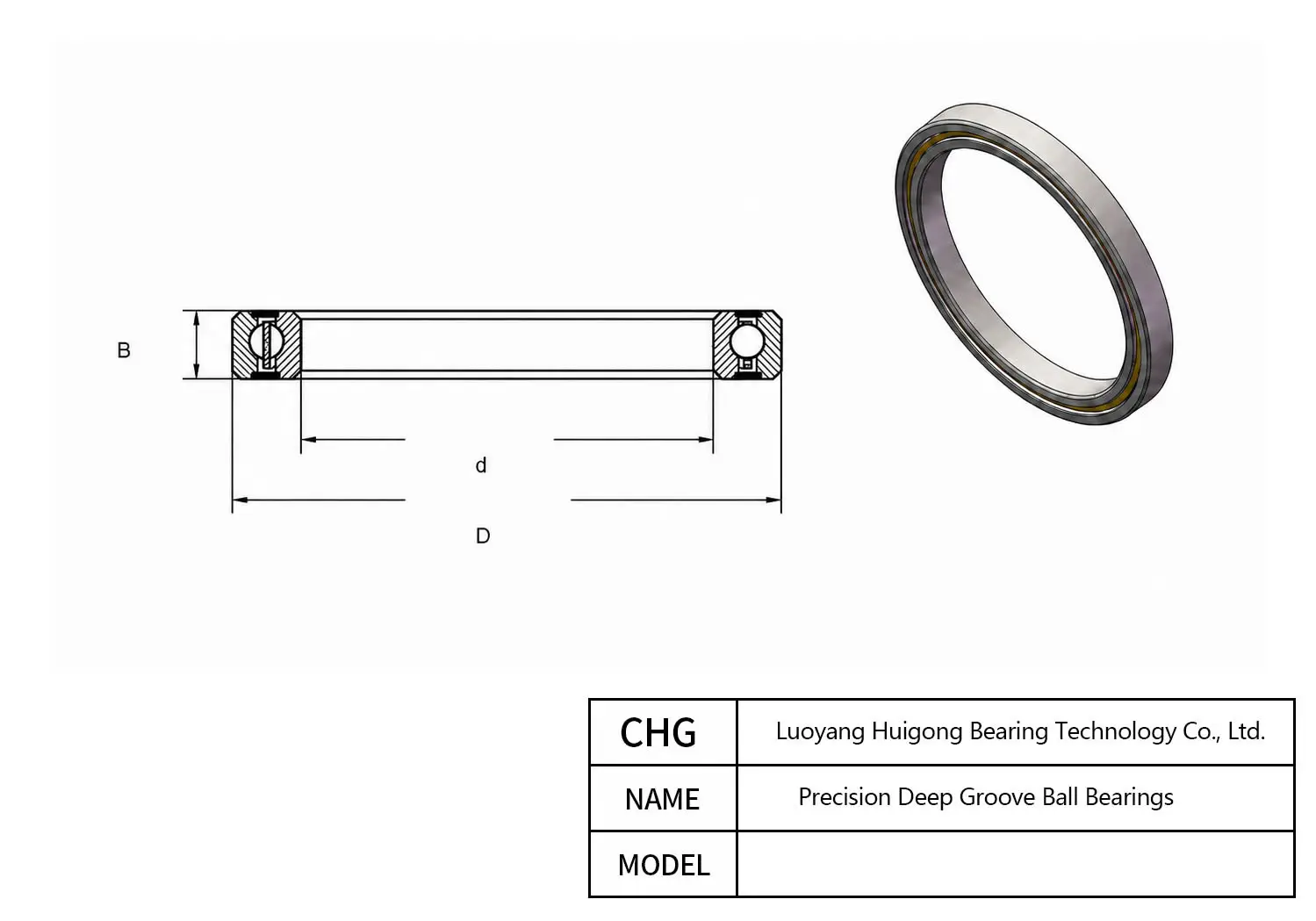

Engineered according to international ISO boundary plans, CHG Bearing supplies 61903P4 with a precision bore diameter (d) of 17 mm, an outside diameter (D) of 30 mm, and a nominal ring width (B) of 7 mm. This configuration yields an effective cross-sectional wall thickness of 6.5 mm and an envelope ratio (D/d) of 1.76, delivering compact rigidity for OEM machinery housings.
Each 61903P4 produced in CHG Bearing manufacturing facilities features accurately profiled corner chamfers complying with DIN 5412 / ISO standard corner radii. When designing mating shafts and housing shoulders, machining an undercut or fillet radius strictly within the inner ring clearance limit (17 mm bore side) ensures perfect planar contact without edge binding.
