Drawing-Based Review
Review bearing dimensions, mounting interfaces and technical requirements before confirming a manufacturing solution.

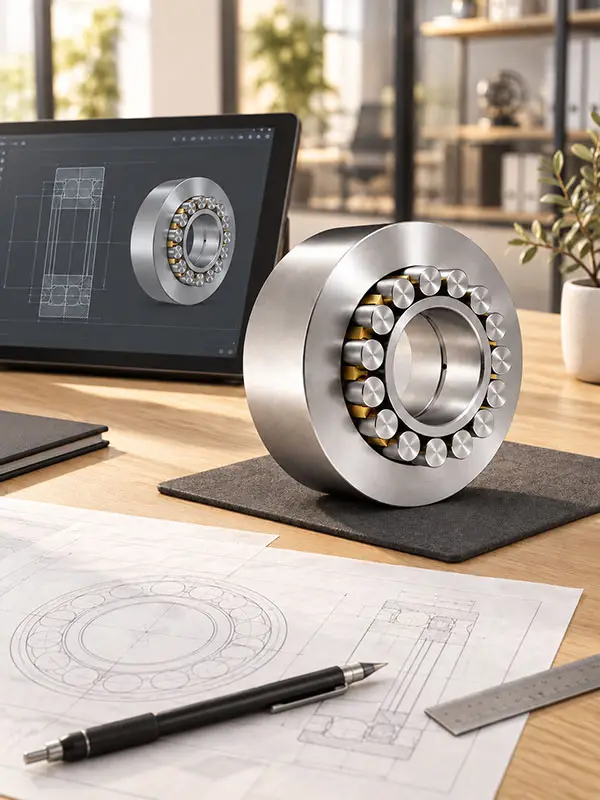

Custom Bearings for Your Drawings and Applications
PRODUCT
Product Categories

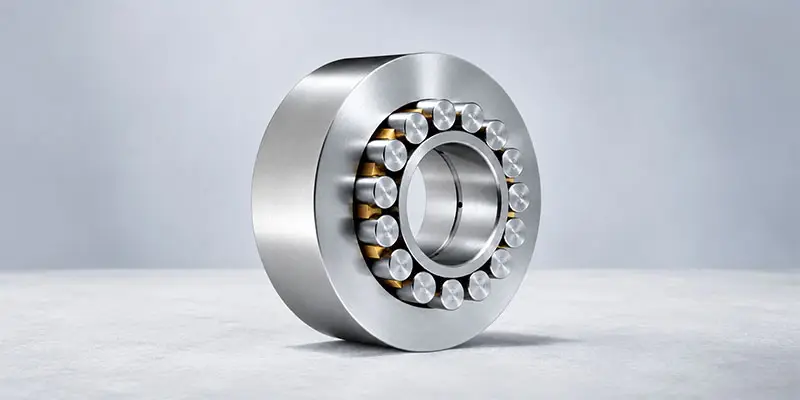

Backing Bearings
Bearing solutions for cluster and multi-roll mill support arrangements, with bearing geometry, outer-ring contact requirements and installation conditions reviewed for the application.
Precision Ball Bearings
Deep groove and angular contact ball bearing options for precision rotating assemblies, with dimensions, accuracy and internal configuration reviewed against your requirements
Advantages
Why Choose CHG Custom Bearings
Traditional grid, structured as a buyer journey to reduce doubts.
Consulting Services
For many businesses, management consulting offers an outside perspective and "best practice" solutions both in terms of strategy and operations.
By Bearing Number
Send the existing designation and manufacturer reference for a review of dimensions, structure and replacement requirements.
By Drawing
Provide dimensions, tolerances, interfaces and inspection requirements for a manufacturing-feasibility review.
By Sample or Photo
Images or samples can support initial identification; measurements and drawings are needed to confirm the final design.
By Application
Share loads, speed, temperature, lubrication and mounting details so the bearing configuration can be reviewed.
FAQs
FAQs About Custom Bearings
Which products are currently listed under Custom Bearings?
The current range includes Backing Bearings and Precision Ball Bearings. The precision ball bearing category contains deep groove bearings in the 618/619 series and angular contact bearings in the 718/719 series.
What information is important for backing bearings?
Provide the bearing reference, support arrangement drawing, outer-ring contact requirements, bearing-group information, loads and lubrication. The complete support assembly helps define the correct requirements.
Can CHG review an existing bearing for replacement?
Yes. Send the original designation, drawings or measured dimensions. Interchangeability must be checked for dimensions, fits, loads, internal configuration and operating conditions.
Are all bearings in this category non-standard?
No. Standard series and existing designs can also be reviewed for an application. Customization may involve dimensions, interfaces, precision, internal configuration or other agreed requirements.
How do 618/619 and 718/719 bearings differ?
618/619 deep groove bearings mainly provide radial support. 718/719 angular contact bearings support combined loads; axial direction and rigidity depend on contact geometry and arrangement.
What are the lead time and inspection requirements?
Lead time depends on the design, material, quantity and validation needs. Inspection items and acceptance criteria are agreed before production and stated in the quotation or technical specification.
CONTACT US
Need a Bearing Matched to Your Requirements?
Send your bearing number, drawing or application requirements. CHG will review the product type, dimensions, configuration and quantity before quotation.
- Backing bearing support
- Precision ball bearing options
- Drawing and replacement review
Get a quick quote
We typically confirm within 24 hours.
