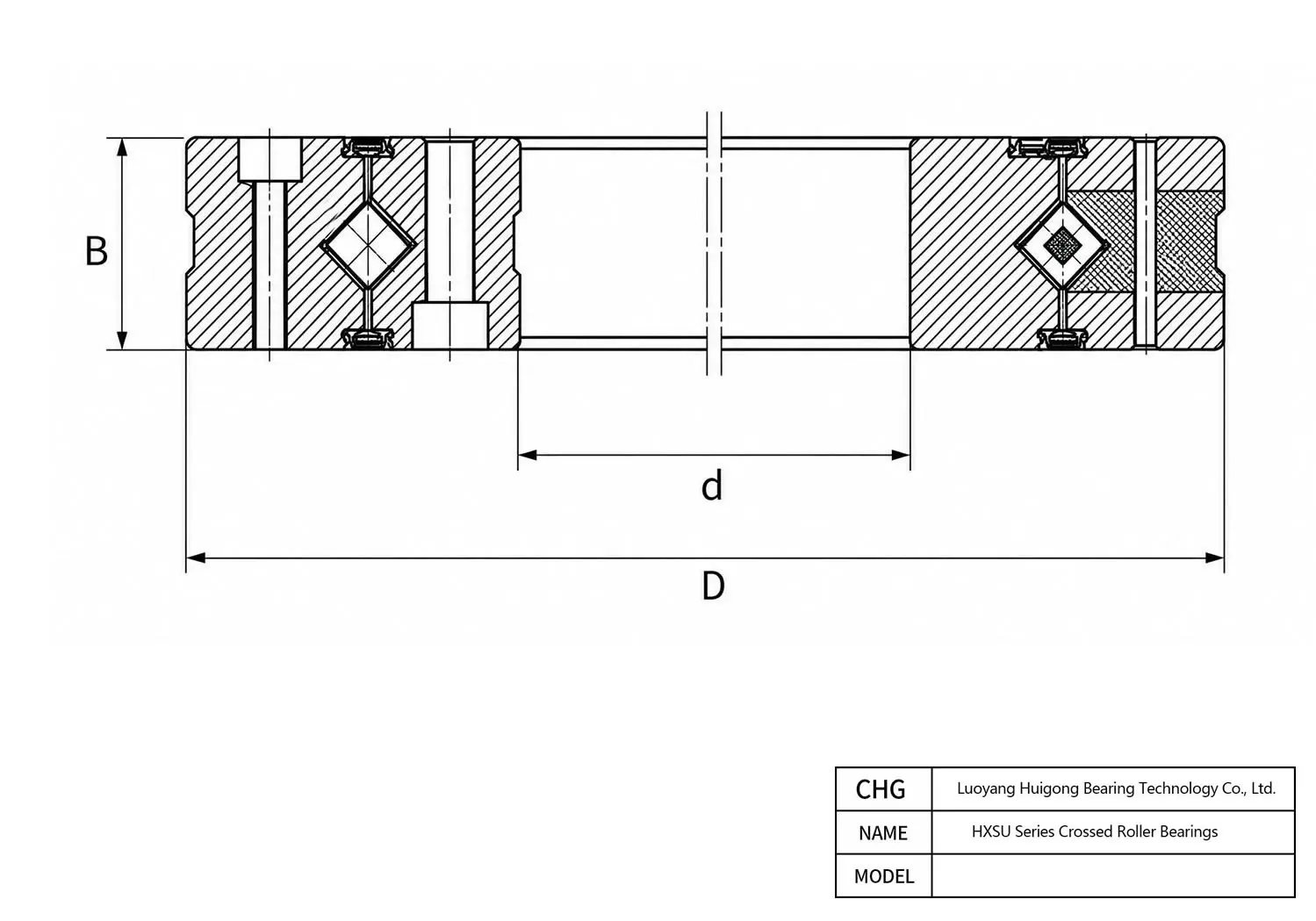

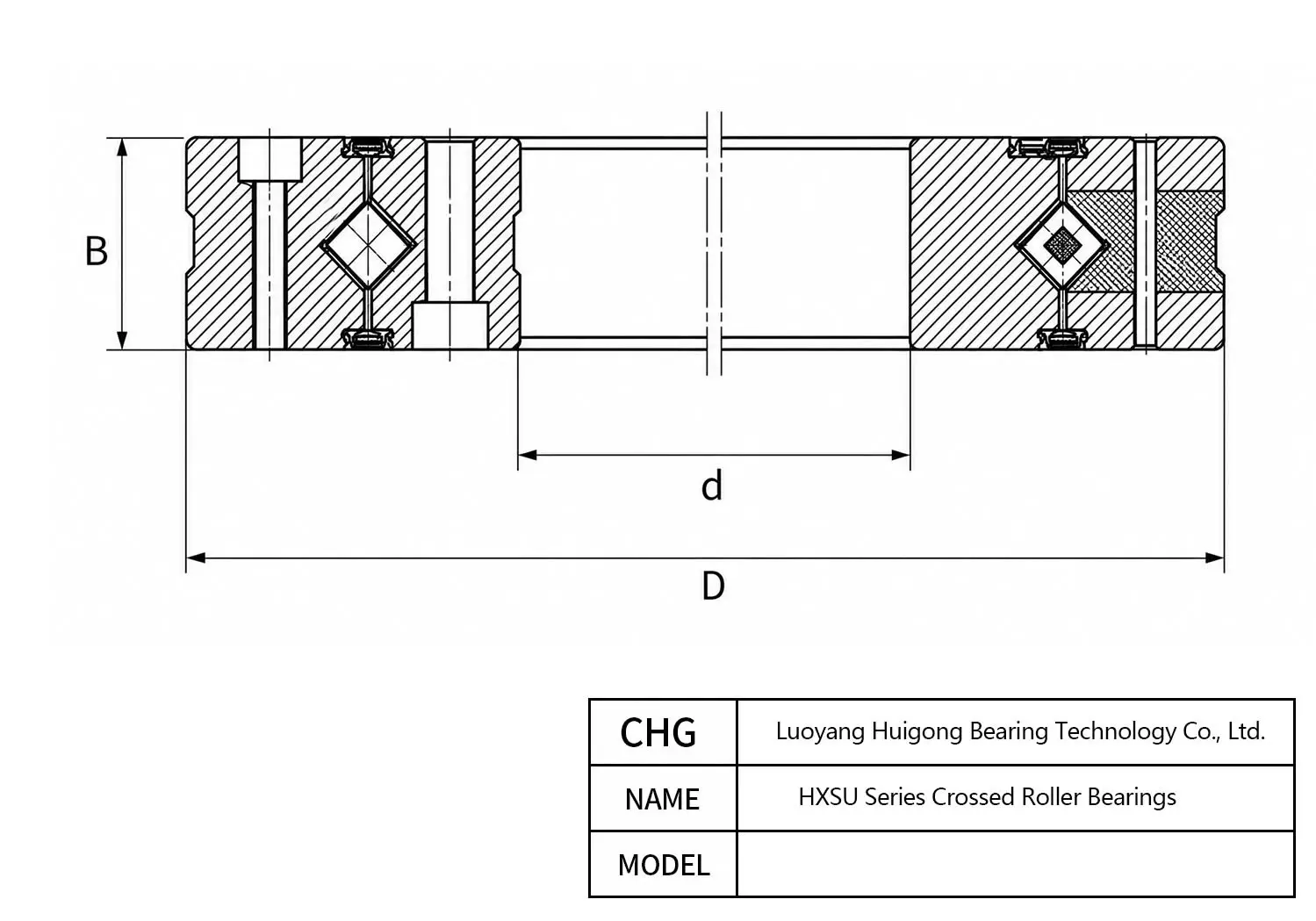

Manufactured by CHG Bearing, the HXSU140544 is a precision HXSU Series Crossed Roller Bearings. Key dimensional parameters include a 474 mm bore diameter, a 614 mm outer diameter, and a 56 mm overall width. This component is designed to meet standard load requirements and ensure consistent operational performance. For comprehensive technical evaluation, please explore the detailed specifications, dimensional data, product images, and CAD drawings provided below. A complete PDF data sheet is also readily available for direct download to support your engineering and procurement needs.

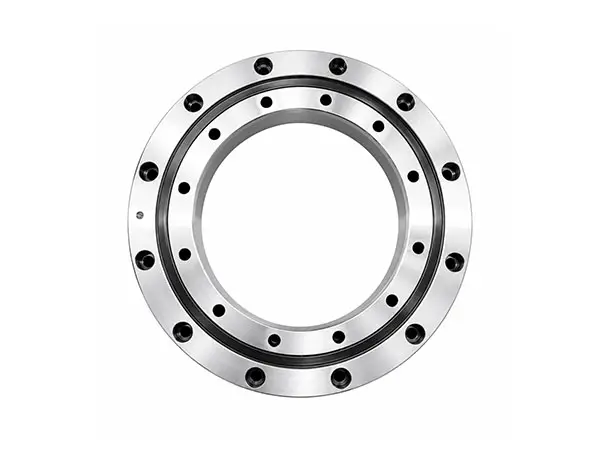

HXSU140544 - HXSU Series Crossed Roller Bearings
Technical Specifications
| Overview | |
|---|---|
| Part Number | HXSU140544 |
| Brand | CHG® |
| Characteristics | |
| Bearing Type | Crossed Roller Bearing |
| Series | HXSU |
| Design Type | Integrated Inner and Outer Rings |
| Seal Type | Double-sided Sealed |
| Dimensions | |
| Roller Pitch Circle Diameter dp | — mm |
| Bore Diameter (d) | 474 mm |
| Width (B) | 56 mm |
| Outer Diameter (D) | 614 mm |
| Minimum Chamfer Dimension rmin | 2.5 mm |
| Inner Ring Shoulder Diameter ds | — mm |
| Outer Ring Shoulder Diameter Dh | — mm |
| Performance | |
| Basic Dynamic Radial Load Rating Cr (kN) | 170 kN |
| Basic Static Radial Load Rating C0r (kN) | 330 kN |
| Reference Data | |
| Reference Mass (kg) | 38 kg |
HXSU140544 614 mm 474 mm 56 mm Frequently Asked Questions about HXSU140544 HXSU Series Crossed Roller Bearings
Find key technical answers regarding dimensions, specifications, and replacement options for this model.
Yes, CHG Bearing works closely with industrial OEMs and brand distributors. We offer turnkey custom engineering for HXSU140544, including laser-etched customer logos, custom internal radial clearances, specialized grease formulations, and bespoke protective packaging.
Following standard ISO 281 fatigue calculation guidelines, the nominal rating life (L10) of CHG Bearing HXSU140544 correlates its dynamic capacity (standard dynamic) with equivalent dynamic loads. In controlled industrial settings with proper contamination-free filtration, field data confirms continuous operational longevity exceeding 20,000 to 50,000 service hours.
The Double-sided Sealed engineered for HXSU140544 by CHG Bearing utilizes precision non-contact metal shields or reinforced NBR/FKM contact lip seals. This barrier prevents particulate ingress, washdown fluids, and abrasive dust from reaching the raceways while eliminating grease leakage under centrifugal forces.
Each HXSU140544 produced in CHG Bearing manufacturing facilities features accurately profiled corner chamfers complying with DIN 5412 / ISO standard corner radii. When designing mating shafts and housing shoulders, machining an undercut or fillet radius strictly within the inner ring clearance limit (474 mm bore side) ensures perfect planar contact without edge binding.
