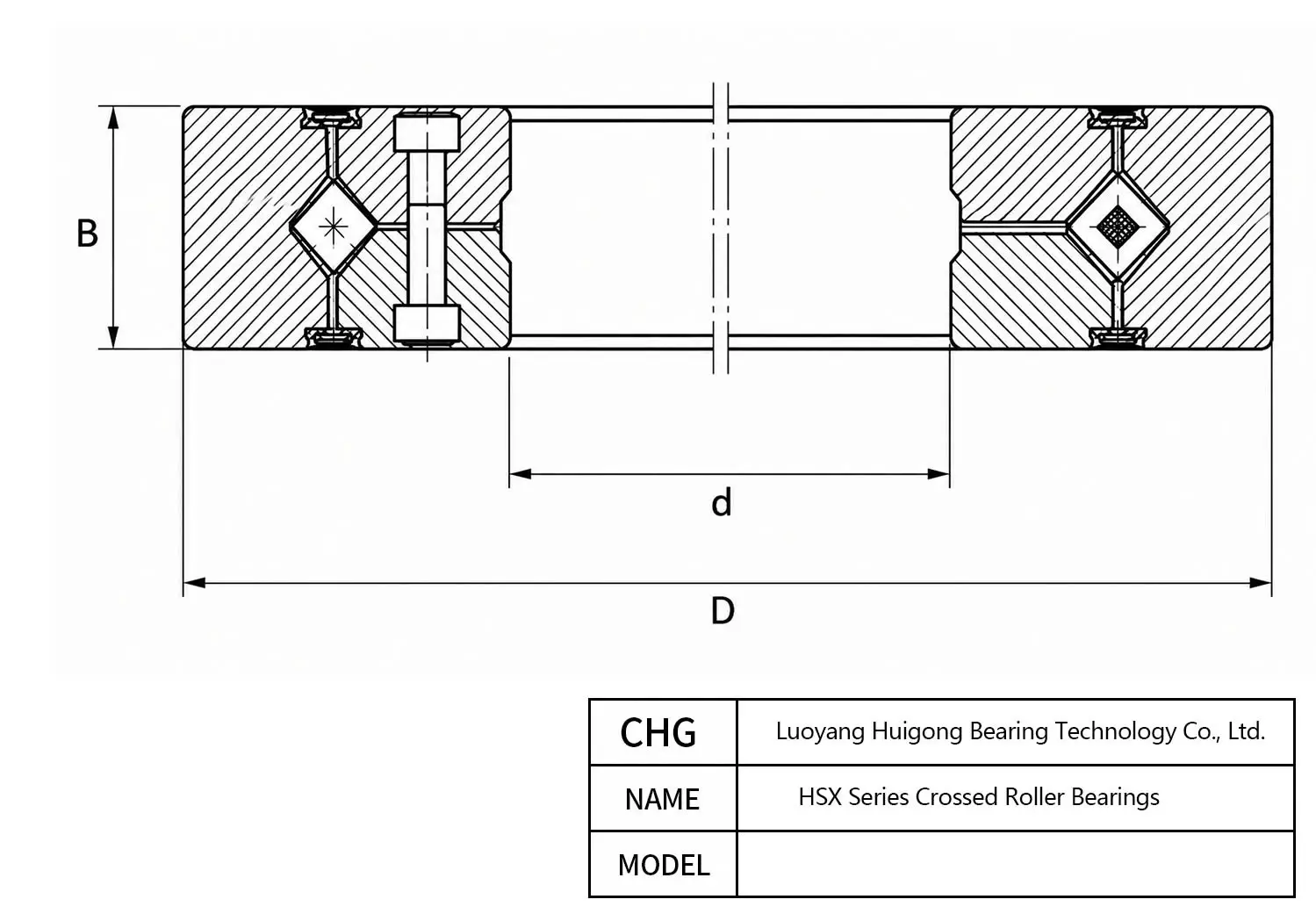

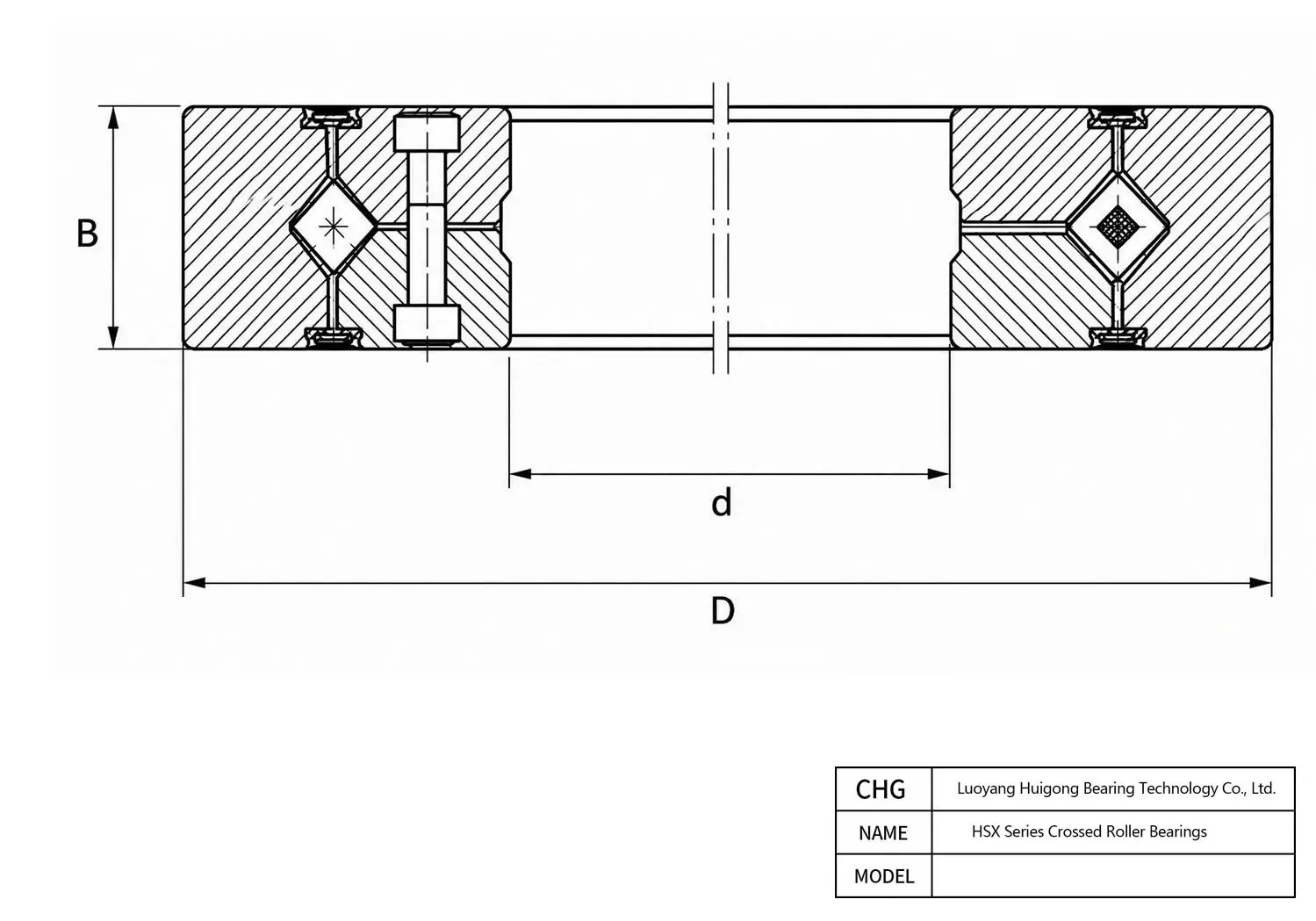

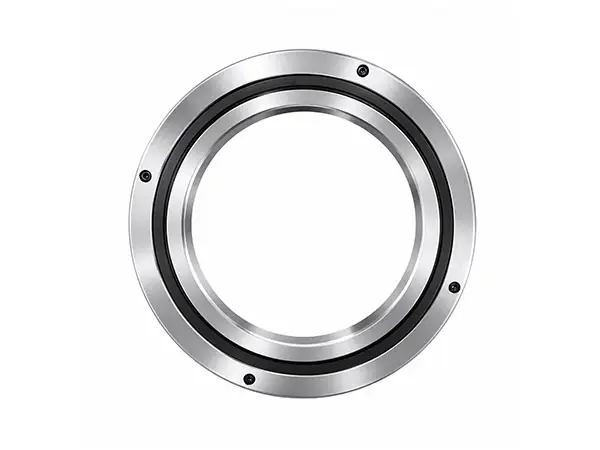

Manufactured by CHG Bearing, the HSX0118/500 is a precision HSX Series Crossed Roller Bearings. Key dimensional parameters include a 500 mm bore diameter, a 620 mm outer diameter, and a 56 mm overall width. This component is designed to meet standard load requirements and ensure consistent operational performance. For comprehensive technical evaluation, please explore the detailed specifications, dimensional data, product images, and CAD drawings provided below. A complete PDF data sheet is also readily available for direct download to support your engineering and procurement needs.
HSX0118/500 - HSX Series Crossed Roller Bearings
Technical Specifications
| Overview | |
|---|---|
| Part Number | HSX0118/500 |
| Brand | CHG® |
| Characteristics | |
| Bearing Type | Crossed Roller Bearing |
| Series | HSX |
| Design Type | Integrated Inner and Outer Rings |
| Seal Type | Double-sided Sealed |
| Dimensions | |
| Roller Pitch Circle Diameter dp | 560 mm |
| Bore Diameter (d) | 500 mm |
| Width (B) | 56 mm |
| Outer Diameter (D) | 620 mm |
| Minimum Chamfer Dimension rmin | 3 mm |
| Inner Ring Shoulder Diameter ds | — mm |
| Outer Ring Shoulder Diameter Dh | — mm |
| Performance | |
| Basic Dynamic Radial Load Rating Cr (kN) | 355 kN |
| Basic Static Radial Load Rating C0r (kN) | 1244 kN |
| Reference Data | |
| Reference Mass (kg) | 44 kg |
HSX0118/500 620 mm 500 mm 56 mm Frequently Asked Questions about HSX0118/500 HSX Series Crossed Roller Bearings
Find key technical answers regarding dimensions, specifications, and replacement options for this model.
Built for demanding industrial environments, the HSX0118/500 HSX Series Crossed Roller Bearings by CHG Bearing boasts a dynamic load rating (Cr) of standard dynamic and a static load threshold (C0r) of standard static. The optimized internal raceway geometry balances stress distribution, mitigating edge loading even when operating under peak mechanical stresses.
To match diverse operational dynamics, CHG Bearing supplies HSX0118/500 with multiple cage configurations: high-strength pressed steel ribbon cages for standard duty, solid machined brass cages (M/CA) for heavy vibration and shock loads, or lightweight glass-fiber reinforced polyamide cages (TN9/TVP) for high acceleration and ultra-low noise.
For international ocean and air freight, CHG Bearing packs HSX0118/500 with industrial VCI anti-corrosion barrier wrapping, sealed polybags, individual cartons, and fumigated ocean-worthy wooden crates. This multi-layer barrier guarantees rust-free storage for a minimum shelf life of 24 to 36 months.
As a primary manufacturer, CHG Bearing supports both trial batch evaluations and container-load supply for HSX0118/500. Standard catalog sizes are stocked for rapid 3–7 day dispatch, while high-volume OEM production runs typically dispatch within 30–45 days.
