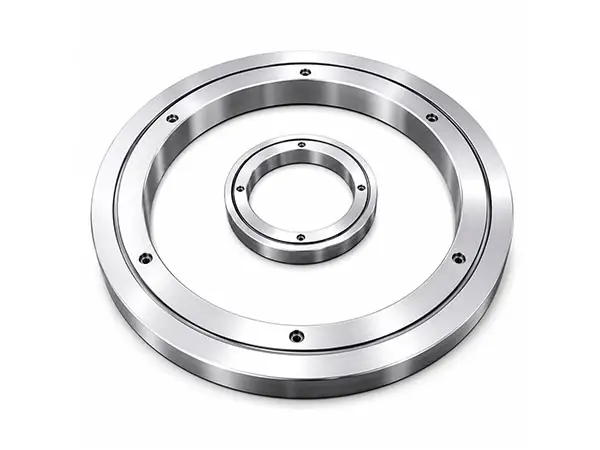

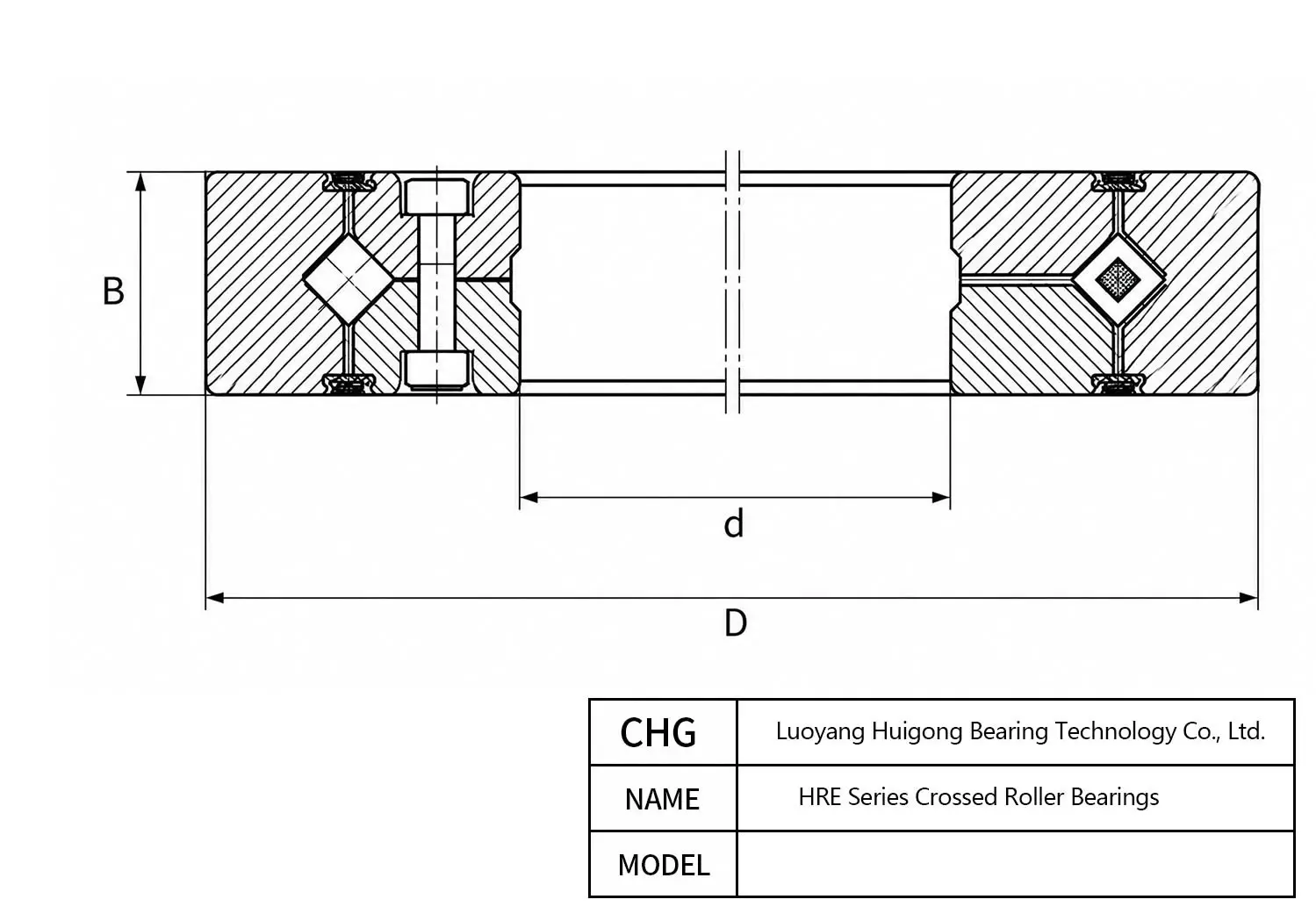

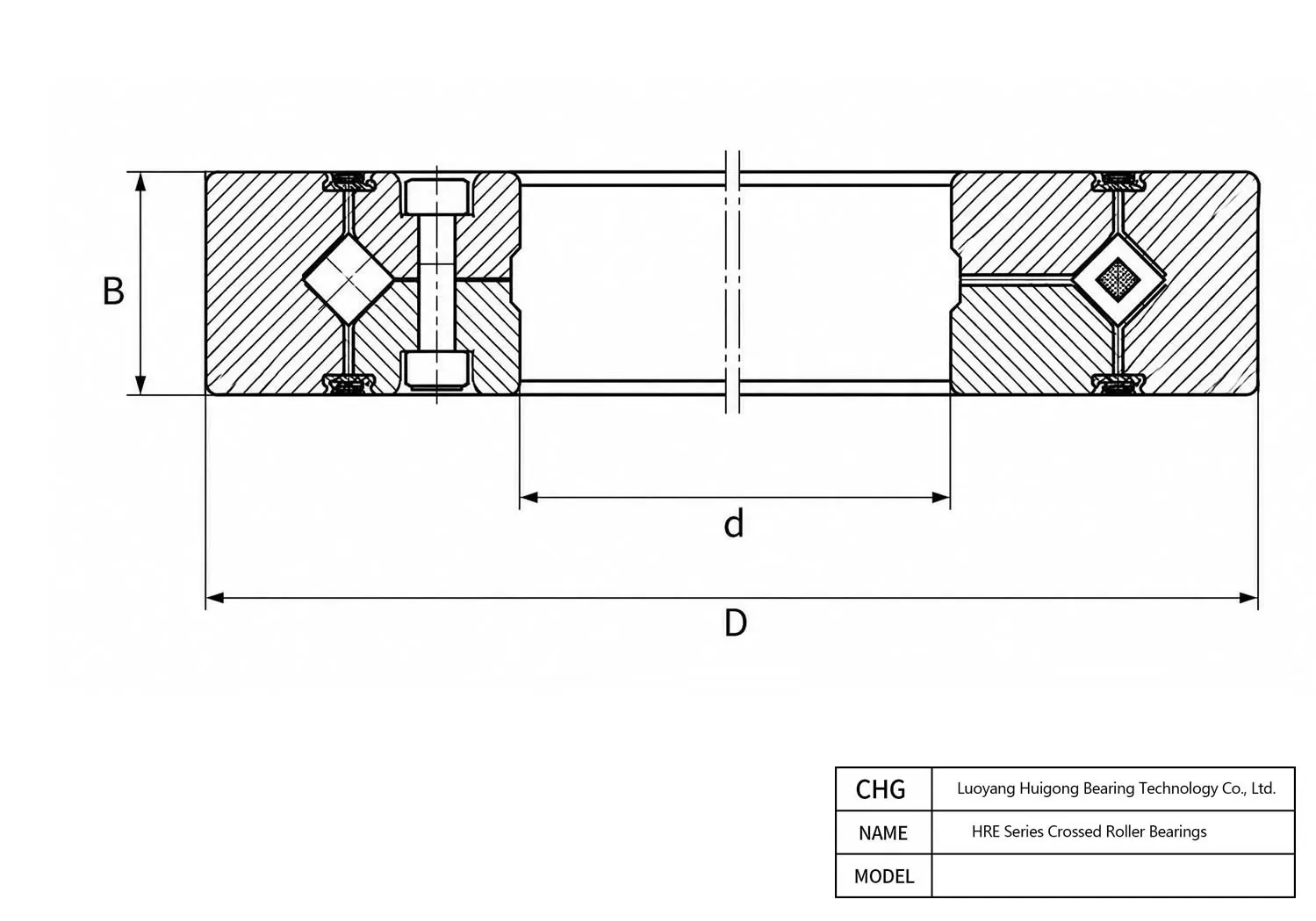

Manufactured by CHG Bearing, the HRE10016 is a precision HRE Series Crossed Roller Bearings. Key dimensional parameters include a 100 mm bore diameter, a 140 mm outer diameter, and a 16 mm overall width. This component is designed to meet standard load requirements and ensure consistent operational performance. For comprehensive technical evaluation, please explore the detailed specifications, dimensional data, product images, and CAD drawings provided below. A complete PDF data sheet is also readily available for direct download to support your engineering and procurement needs.
HRE10016 - HRE Series Crossed Roller Bearings
Technical Specifications
| Overview | |
|---|---|
| Part Number | HRE10016 |
| Brand | CHG® |
| Characteristics | |
| Bearing Type | Crossed Roller Bearing |
| Series | HRE |
| Design Type | Split Inner Ring |
| Seal Type | Single-sided or Double-sided Sealed |
| Dimensions | |
| Roller Pitch Circle Diameter dp | 121.1 mm |
| Bore Diameter (d) | 100 mm |
| Width (B) | 16 mm |
| Outer Diameter (D) | 140 mm |
| Minimum Chamfer Dimension rmin | 1 mm |
| Inner Ring Shoulder Diameter ds | 109 mm |
| Outer Ring Shoulder Diameter Dh | 131 mm |
| Performance | |
| Basic Dynamic Radial Load Rating Cr (kN) | 31.7 kN |
| Basic Static Radial Load Rating C0r (kN) | 48.6 kN |
| Reference Data | |
| Reference Mass (kg) | 0.83 kg |
HRE10016 140 mm 100 mm 16 mm Frequently Asked Questions about HRE10016 HRE Series Crossed Roller Bearings
Find key technical answers regarding dimensions, specifications, and replacement options for this model.
Following standard ISO 281 fatigue calculation guidelines, the nominal rating life (L10) of CHG Bearing HRE10016 correlates its dynamic capacity (standard dynamic) with equivalent dynamic loads. In controlled industrial settings with proper contamination-free filtration, field data confirms continuous operational longevity exceeding 20,000 to 50,000 service hours.
Standard batches of CHG Bearing HRE10016 conform strictly to ISO Class Normal (ABEC-1). For high-precision machine tool spindles, gearboxes, or robotics requiring tighter runouts, CHG Bearing can provide custom batches graded to ISO Class 6 (P6/ABEC-3) or ISO Class 5 (P5/ABEC-5) with 100% micrometer verification.
To match diverse operational dynamics, CHG Bearing supplies HRE10016 with multiple cage configurations: high-strength pressed steel ribbon cages for standard duty, solid machined brass cages (M/CA) for heavy vibration and shock loads, or lightweight glass-fiber reinforced polyamide cages (TN9/TVP) for high acceleration and ultra-low noise.
For international ocean and air freight, CHG Bearing packs HRE10016 with industrial VCI anti-corrosion barrier wrapping, sealed polybags, individual cartons, and fumigated ocean-worthy wooden crates. This multi-layer barrier guarantees rust-free storage for a minimum shelf life of 24 to 36 months.
