Manufactured by CHG Bearing, the HRAU8008 is a precision HRAU Series Crossed Roller Bearings. Key dimensional parameters include a 80 mm bore diameter, a 96 mm outer diameter, and a 8 mm overall width. This component is designed to meet standard load requirements and ensure consistent operational performance. For comprehensive technical evaluation, please explore the detailed specifications, dimensional data, product images, and CAD drawings provided below. A complete PDF data sheet is also readily available for direct download to support your engineering and procurement needs.
HRAU8008 - HRAU Series Crossed Roller Bearings
Technical Specifications
| Overview | |
|---|---|
| Part Number | HRAU8008 |
| Brand | CHG® |
| Characteristics | |
| Bearing Type | Crossed Roller Bearing |
| Series | HRAU |
| Design Type | Integrated Inner and Outer Rings |
| Seal Type | Single-sided or Double-sided Sealed |
| Dimensions | |
| Roller Pitch Circle Diameter dp | 87 mm |
| Bore Diameter (d) | 80 mm |
| Width (B) | 8 mm |
| Outer Diameter (D) | 96 mm |
| Minimum Chamfer Dimension rmin | 0.5 mm |
| Inner Ring Shoulder Diameter ds | 83.5 mm |
| Outer Ring Shoulder Diameter Dh | 90.5 mm |
| Performance | |
| Basic Dynamic Radial Load Rating Cr (kN) | 6.37 kN |
| Basic Static Radial Load Rating C0r (kN) | 11.3 kN |
| Reference Data | |
| Reference Mass (kg) | 0.11 kg |

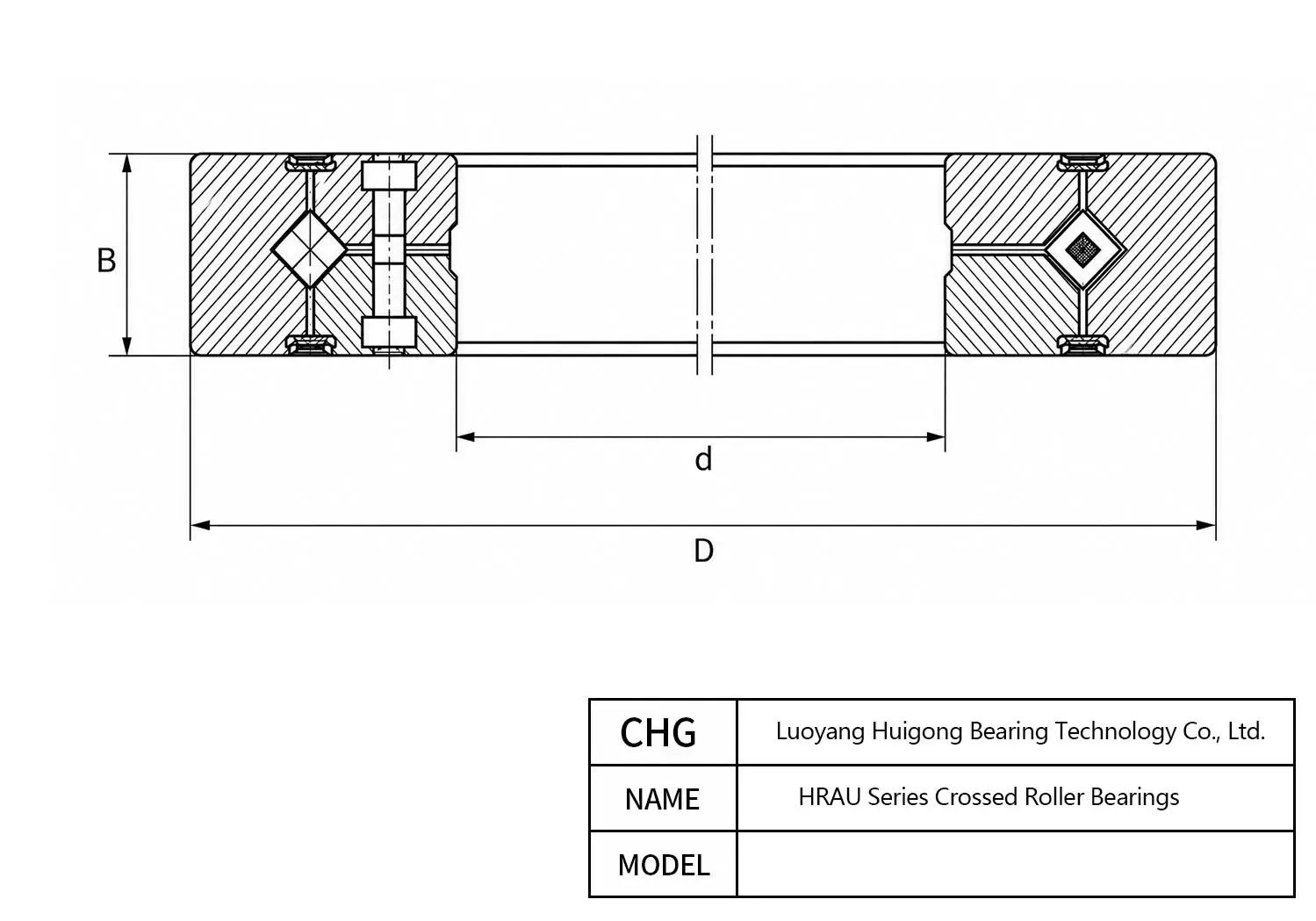

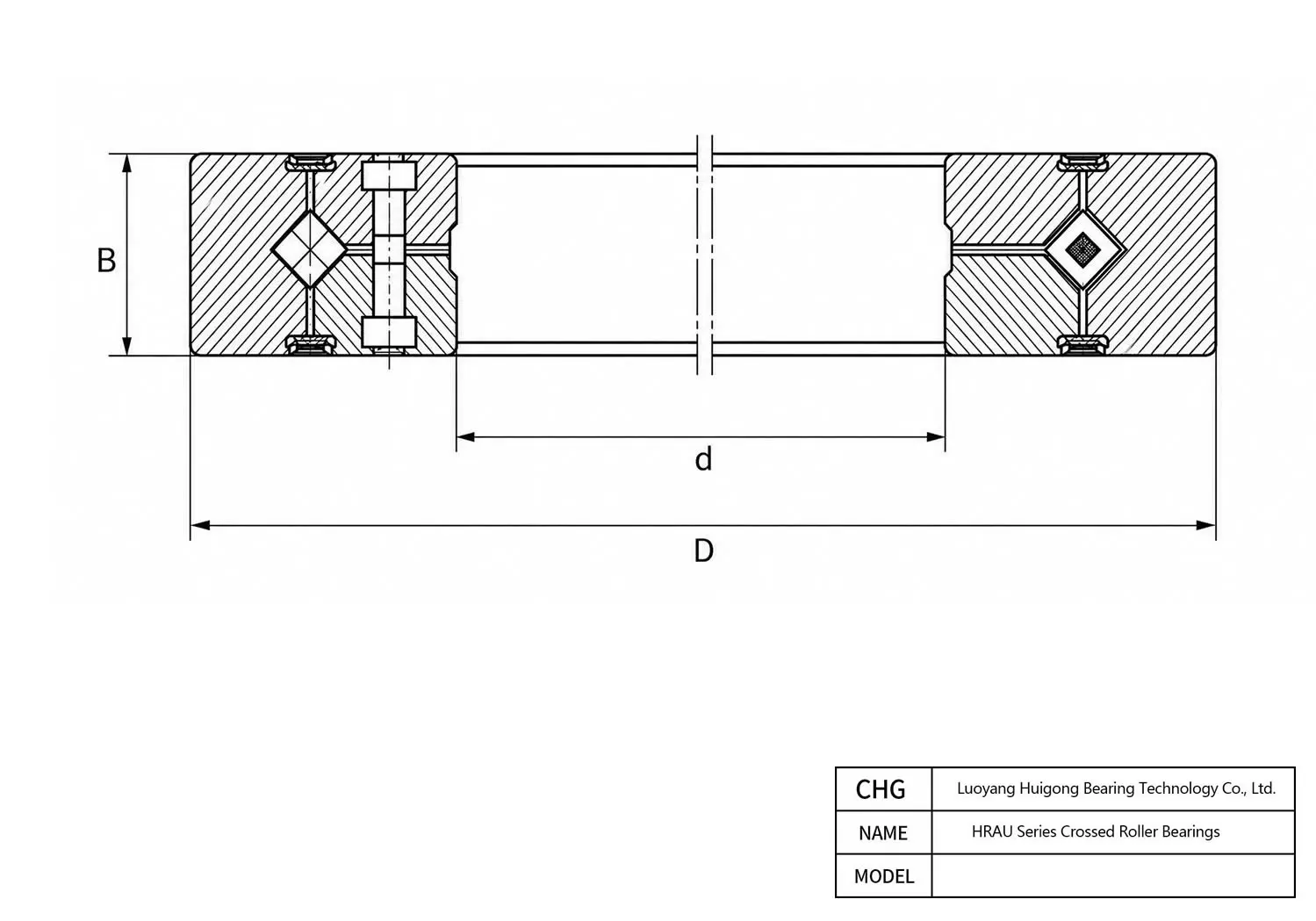

96 mm 80 mm 8 mm HRAU8008 Frequently Asked Questions about HRAU8008 HRAU Series Crossed Roller Bearings
Find key technical answers regarding dimensions, specifications, and replacement options for this model.
Yes, CHG Bearing works closely with industrial OEMs and brand distributors. We offer turnkey custom engineering for HRAU8008, including laser-etched customer logos, custom internal radial clearances, specialized grease formulations, and bespoke protective packaging.
To match diverse operational dynamics, CHG Bearing supplies HRAU8008 with multiple cage configurations: high-strength pressed steel ribbon cages for standard duty, solid machined brass cages (M/CA) for heavy vibration and shock loads, or lightweight glass-fiber reinforced polyamide cages (TN9/TVP) for high acceleration and ultra-low noise.
Beyond standard alloy steel, CHG Bearing can customize the HRAU8008 HRAU Series Crossed Roller Bearings using AISI 440C stainless steel, black oxide coating, zinc-nickel plating, or hybrid ceramic (Si3N4) balls for applications involving chemical exposure, marine salt fog, or galvanic current hazards.
As standard production, CHG Bearing subjects HRAU8008 to precision bainite or martensite quenching, offering dimensional stability up to 120°C (248°F). For high-heat processing equipment, CHG Bearing also supplies custom S0 (150°C), S1 (200°C), or S2 (250°C) stabilization heat treatments upon request to prevent residual austenite transformation.
