Manufactured by CHG Bearing, the HRA6008 is a precision HRAU Series Crossed Roller Bearings. Key dimensional parameters include a 60 mm bore diameter, a 76 mm outer diameter, and a 8 mm overall width. This component is designed to meet standard load requirements and ensure consistent operational performance. For comprehensive technical evaluation, please explore the detailed specifications, dimensional data, product images, and CAD drawings provided below. A complete PDF data sheet is also readily available for direct download to support your engineering and procurement needs.
HRA6008 - HRAU Series Crossed Roller Bearings
Technical Specifications
| Overview | |
|---|---|
| Part Number | HRA6008 |
| Brand | CHG® |
| Characteristics | |
| Bearing Type | Crossed Roller Bearing |
| Series | HRA |
| Design Type | Split Outer Ring |
| Seal Type | Single-sided or Double-sided Sealed |
| Dimensions | |
| Roller Pitch Circle Diameter dp | 67 mm |
| Bore Diameter (d) | 60 mm |
| Width (B) | 8 mm |
| Outer Diameter (D) | 76 mm |
| Minimum Chamfer Dimension rmin | 0.5 mm |
| Inner Ring Shoulder Diameter ds | 63.5 mm |
| Outer Ring Shoulder Diameter Dh | 70.5 mm |
| Performance | |
| Basic Dynamic Radial Load Rating Cr (kN) | 5.68 kN |
| Basic Static Radial Load Rating C0r (kN) | 8.68 kN |
| Reference Data | |
| Reference Mass (kg) | 0.09 kg |

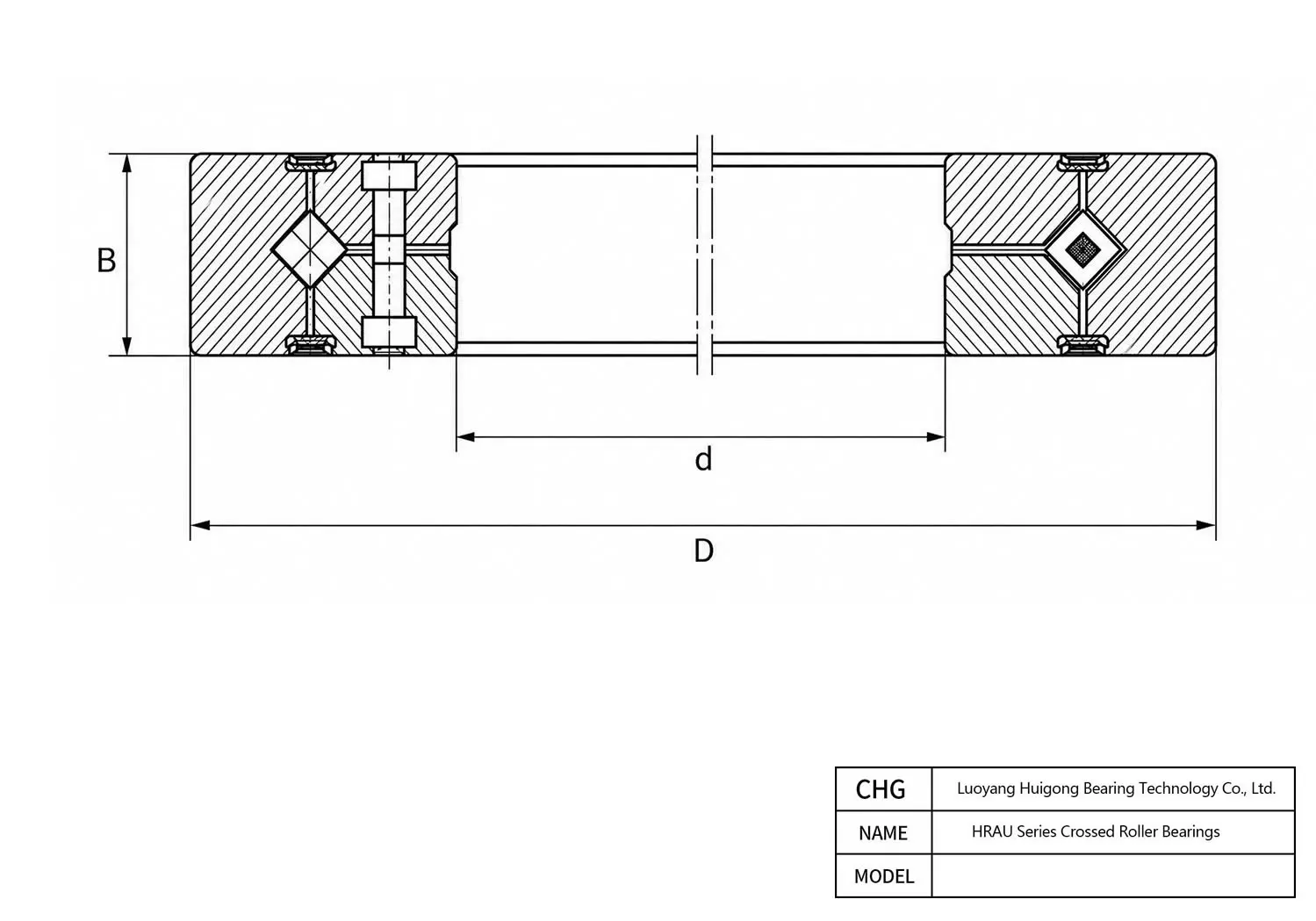

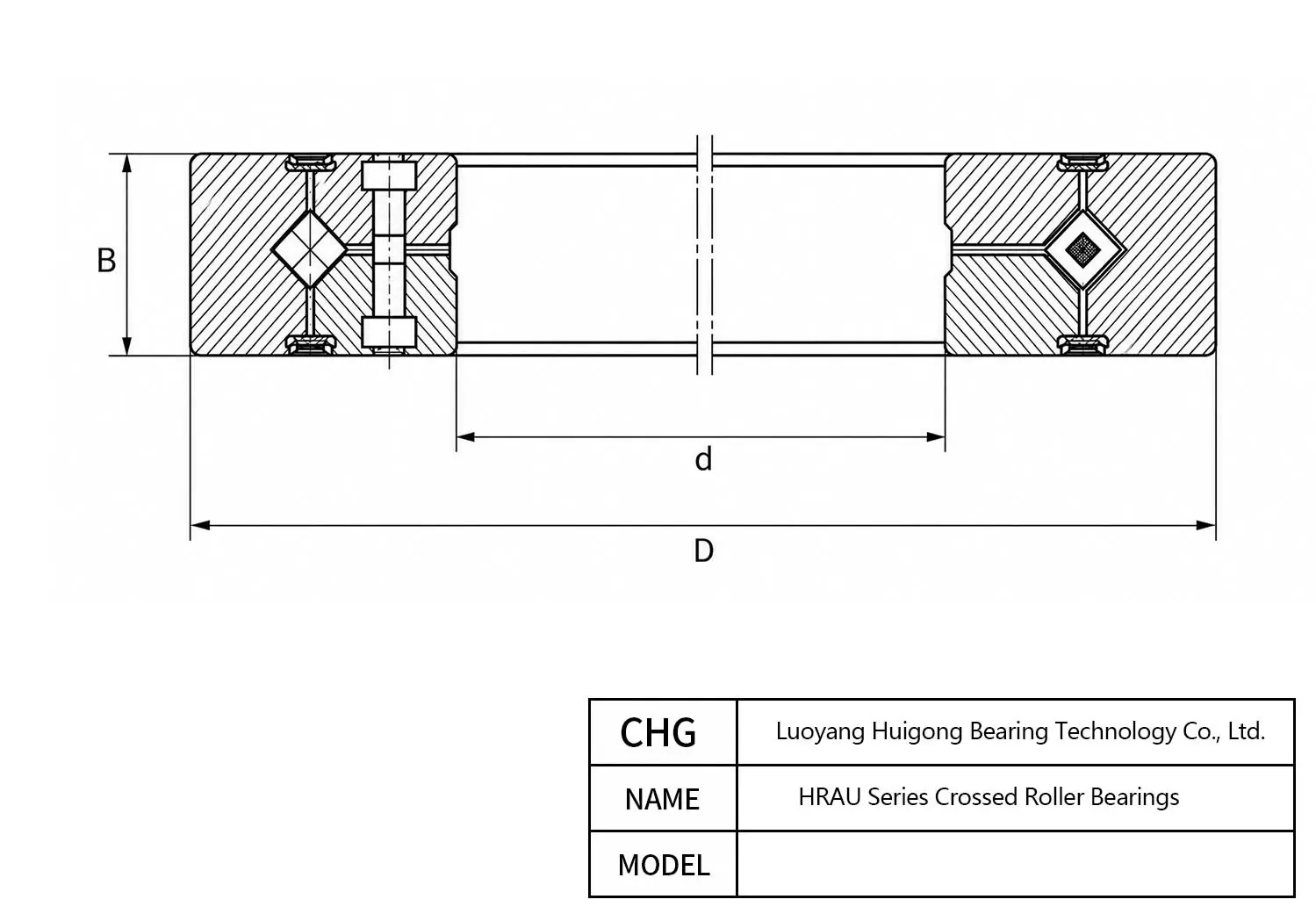

76 mm 60 mm 8 mm HRA6008 Frequently Asked Questions about HRA6008 HRAU Series Crossed Roller Bearings
Find key technical answers regarding dimensions, specifications, and replacement options for this model.
For international ocean and air freight, CHG Bearing packs HRA6008 with industrial VCI anti-corrosion barrier wrapping, sealed polybags, individual cartons, and fumigated ocean-worthy wooden crates. This multi-layer barrier guarantees rust-free storage for a minimum shelf life of 24 to 36 months.
Yes, 100% of HRA6008 HRAU Series Crossed Roller Bearings leaving CHG Bearing production lines are subjected to multi-frequency Anderometer sound testing. All units satisfy baseline Z1V1 levels, with dedicated quiet-running electric motor quality (EMQ) lots certified to Z2V2 and Z3V3 standards for silent machinery integration.
To safeguard CHG Bearing HRA6008 against fretting wear and false brinelling during transport or vibration, assemble mating surfaces (60 mm x 76 mm) using anti-fretting mounting paste. Maintaining strict alignment and avoiding prolonged static vibration will preserve raceway polish.
In its sealed configuration (Single-sided or Double-sided Sealed), CHG Bearing pre-charges HRA6008 with premium wide-temperature lithium-complex or polyurea grease, calibrated to a 30%–35% cavity volume ratio. For open-type variants, synthetic PAO or refined mineral lubricating oils with appropriate EP (Extreme Pressure) additives should be circulated.
