Cylindrical Roller Applications

CHG manufactures custom cylindrical rollers for bearings and mechanisms requiring high radial load capacity, low friction, high rigidity and controlled roller profile. Roller diameter, length, end shape, material, precision and batch quantity can be customized.

Get A Quote Chat on WhatsApp
Application

Application Challenges

Radial Load Capacity

Cylindrical rollers provide line contact and are used where radial load capacity is critical.

Edge Stress

Misalignment and deformation can concentrate stress at roller edges.

End-face Contact

Some bearing designs require controlled roller-end and flange contact.

High-speed Stability

Long rollers and high speeds require consistent geometry and cage compatibility.

Batch Grading

Rollers must be grouped by diameter for consistent bearing clearance and load distribution.

Products

Recommended Rolling Elements

Selection

Selection Information

01

Information Customers Can Provide

Application and bearing structure
Roller diameter and effective length
Overall length and end geometry
Chamfer, radius and relief
Crown or logarithmic profile
Material and hardness
Roundness, cylindricity and surface finish
Grading tolerance, quantity, drawing or sample

02

CHG Assessable Content

Suitable rolling element type and geometry
Diameter, length, angle, curvature and end form
Material, heat treatment and hardness
Roundness, cylindricity, profile and surface finish
Crown or logarithmic profile
Dimensional tolerance and grading
Inspection method, packaging and batch identification
Technical proposal, sample approval, quotation and delivery

banner-page-product-background
ADVANTAGES

Why Choose CHG

Three Roller Product Types

CHG manufactures cylindrical rollers, tapered rollers and spherical rollers for OEM, repair and replacement requirements.

Custom Geometry & Precision

Diameter, length, angle, curvature, end geometry, profile, tolerance and grading can be customized according to drawings or samples.

Material & Process Control

Material, heat treatment, hardness, grinding, superfinishing and dimensional inspection can be controlled according to order requirements.

Flexible Batch Support

Support is available for prototypes, repair quantities, small batches and repeat production orders with batch identification.

Related

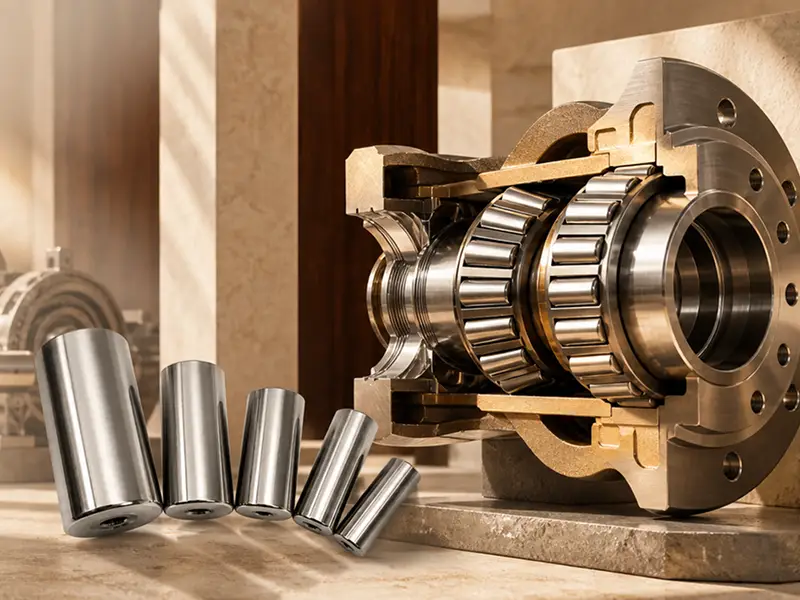

Related Applications

banner-Customization-Process
CONTACT US
Talk to an expert
Share your requirements and we’ll help you find the right solution for your business.

    Get a quick quote

    We typically confirm within 24 hours.

    FAQ

    Cylindrical Roller Applications FAQ

    Please provide the roller type, dimensions, profile, material, hardness, tolerance, quantity and drawing or sample photos. Bearing number and application data are also helpful.

    CHG manufactures cylindrical rollers, tapered rollers and spherical rollers.

    Yes. Custom and replacement rollers can be reviewed according to samples, measured dimensions, bearing numbers, 2D/3D drawings and application requirements.

    Yes. Diameter grading, matched sets, batch identification and special packing can be provided according to order requirements.

    Material certificates, hardness records, dimensional inspection, profile and surface-finish inspection, product photos and packing photos can be provided according to order requirements.
